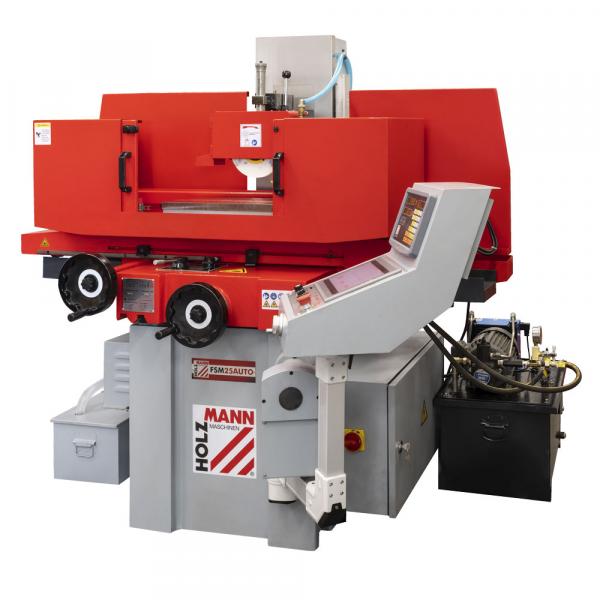

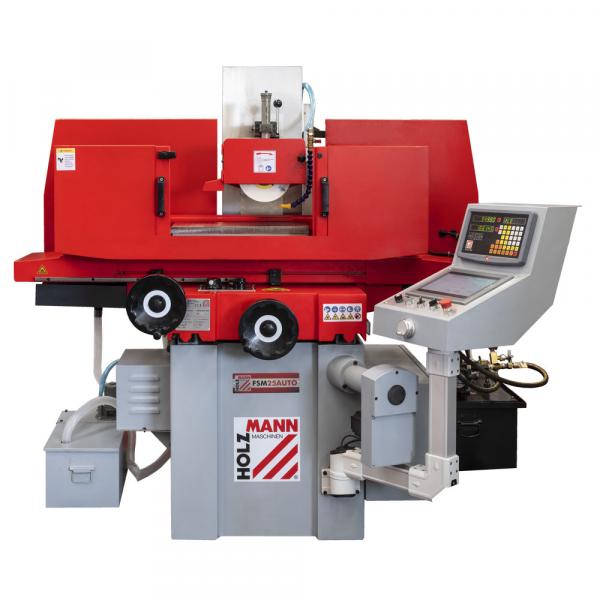

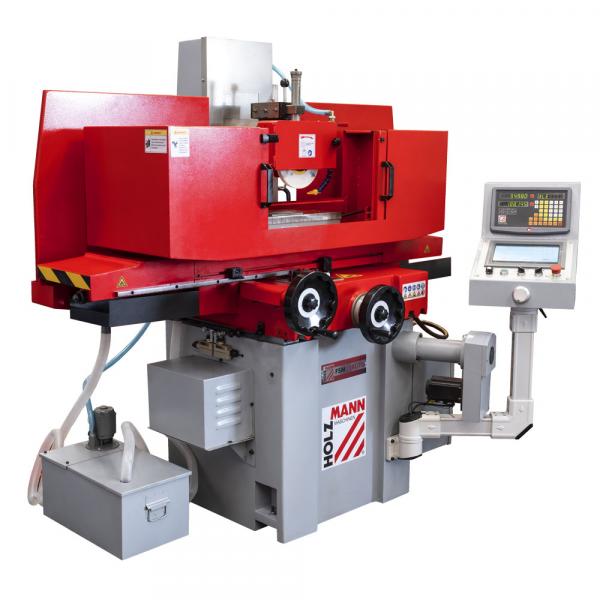

Holzmann Surface grinding machine FSM25AUTO_400V

Product features Holzmann surface grinder FSM25AUTO_400V

• Surface grinding machine with automatic cycle function (pre-grinding, fine grinding, burn-out).
• Machine base made of sturdy, torsion-resistant cast iron for maximum rigidity and stability

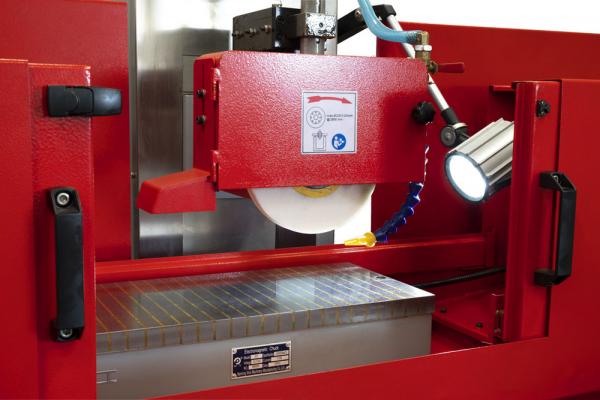

• Clamping table (500 x 250mm) with magnet for fixing workpieces included (magnetisation / demagnetisation via switch on control panel)
• Table slideway as V-flat in longitudinal direction and double-V in cross table direction
• Equipped with coolant supply equipment (pump, tank, tubing)
• Coolant pump: 40 W 12l/min
• Honing device directly on the machine for resharpening the grinding wheel (incl. honing diamond) available
• Central lubrication of all guides (automatic with time function)
• Grinding of workpieces up to 500 x 254 x 275 mm possible

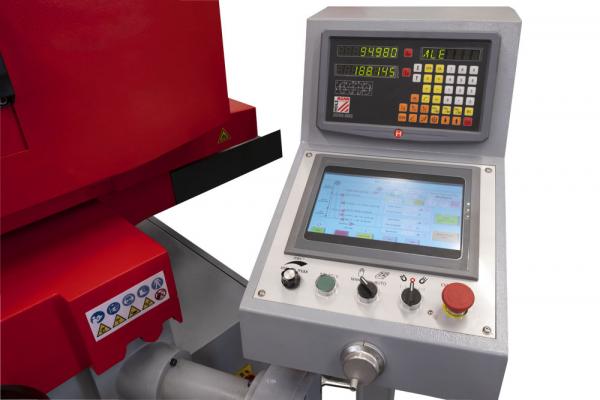

• 2-axis position display (grinding stone feed and table position)
• hydraulic longitudinal feed adjustable via lever and change-over positions adjustable via limit switch (electric motor for pump 1.5kW) 7-23m/min
• manual longitudinal adjustment possible via separate spring-loaded handwheel
• Separate feed motor for transverse movement from the table (step width adjustable via potentiometer on the control panel (0.1-11.2mm/rev) as well as change-over position adjustable via limit switch, also in transverse direction)
• Manual transverse adjustment possible via handwheel (graduation 0.02mm/rev)
• Height adjustment by means of servo motor 750W (manual feed by means of handwheel on control panel with 3 steps as well as automatic in automatic cycle)
• max. table load 180kg

Scope of delivery Holzmann surface grinder FSM25AUTO_400V

• Grinding wheel (Ø200 x 20 mm, white corundum 46),
• Coolant pump + tank,
• aids for grinding wheel balancing (shaft, stand),
• tool,
• 2-axis DRO;
• LED working light,
• hydraulic unit with pump,
• motor and cooler

Technical data Holzmann Surface grinder FSM25AUTO_400V

• Motor power S1 in W: 2200 (1500 / 750 / 500)
• Voltage: 400V / 50Hz
• Speed in min-1: 2850

• Projection in mm: 450
• Table size in mm: 250 x 510
• Table size in mm: 1950 x 1650 x 1700
• Table height in mm: 1000

• Gross weight in kg: 1,600
• Net weight in kg: 1,500

• Packaging width in mm: 1,420
• Packaging length in mm: 2,020
• Packaging height in mm: 2,000

• EAN Code: 9120058378461
