ELMAG TRANSVERSE 610.440 DGH BOMAR metal band saw
Product Highlights ELMAG TRANSVERSE 610.440 DGH BOMAR metal band saw

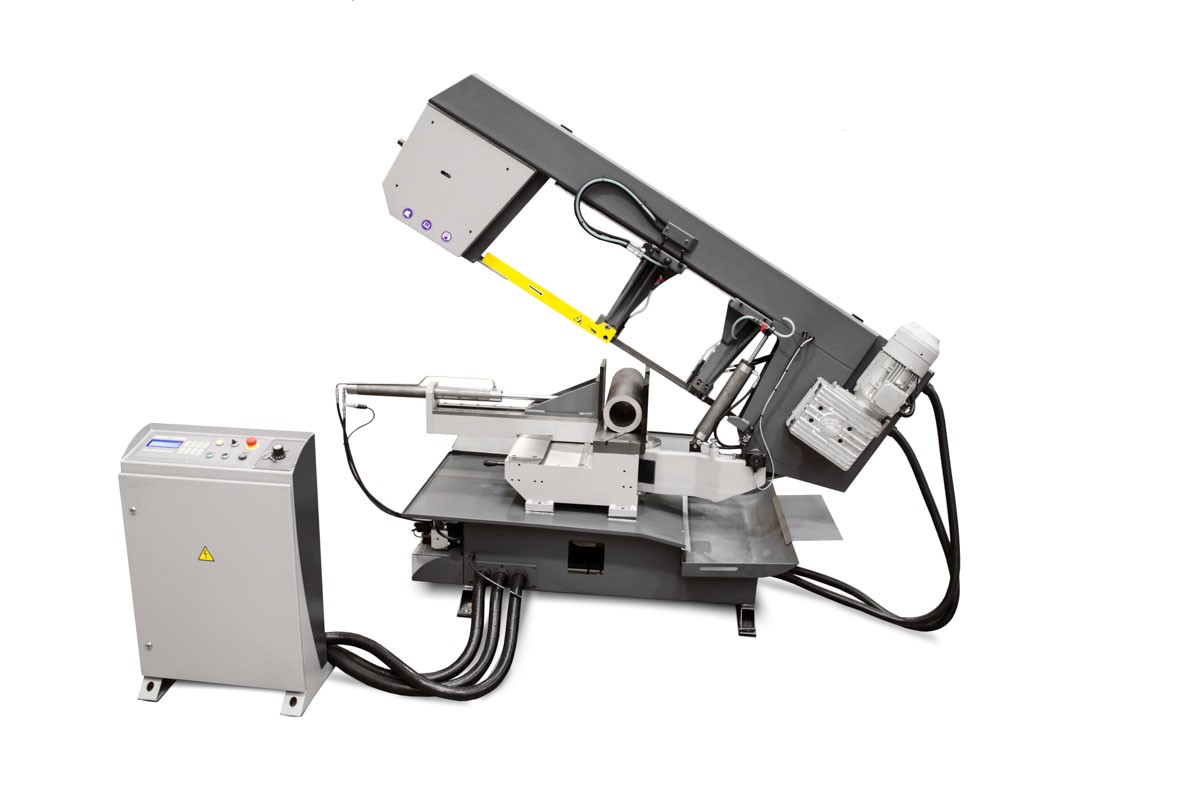

The machine Transverse 610.440 DGH is a semi-automatic metal band saw with high cutting accuracy. With this model 90° cuts, as well as mitre cuts, right and left 30°, are infinitely variable. (swivel range 60°).
Technical facts ELMAG TRANSVERSE 610.440 DGH BOMAR metal band saw
- Stable welded construction of the saw arm enables a low-vibration saw cut
- Powerful frequency controlled saw blade drive
- Height limitation of the saw frame by means of potentiometer from the control panel
- Hydraulically controlled lowering speed of the saw arm

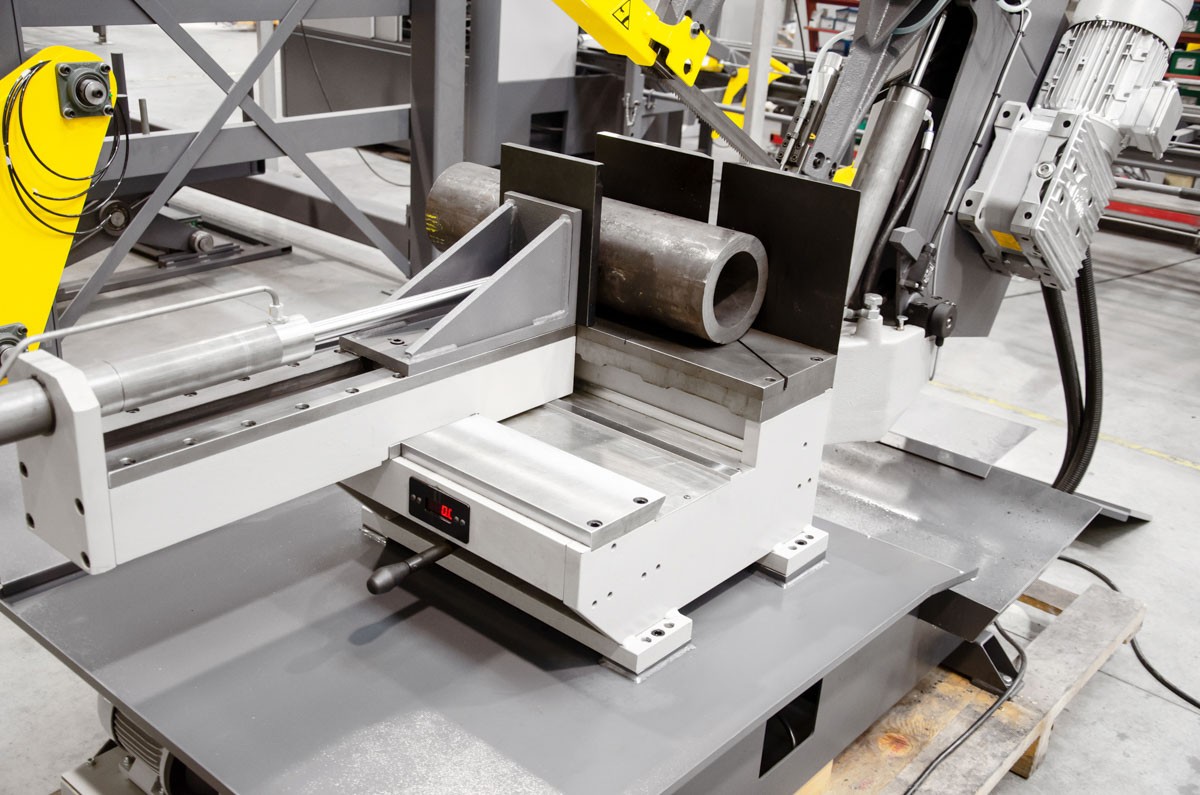

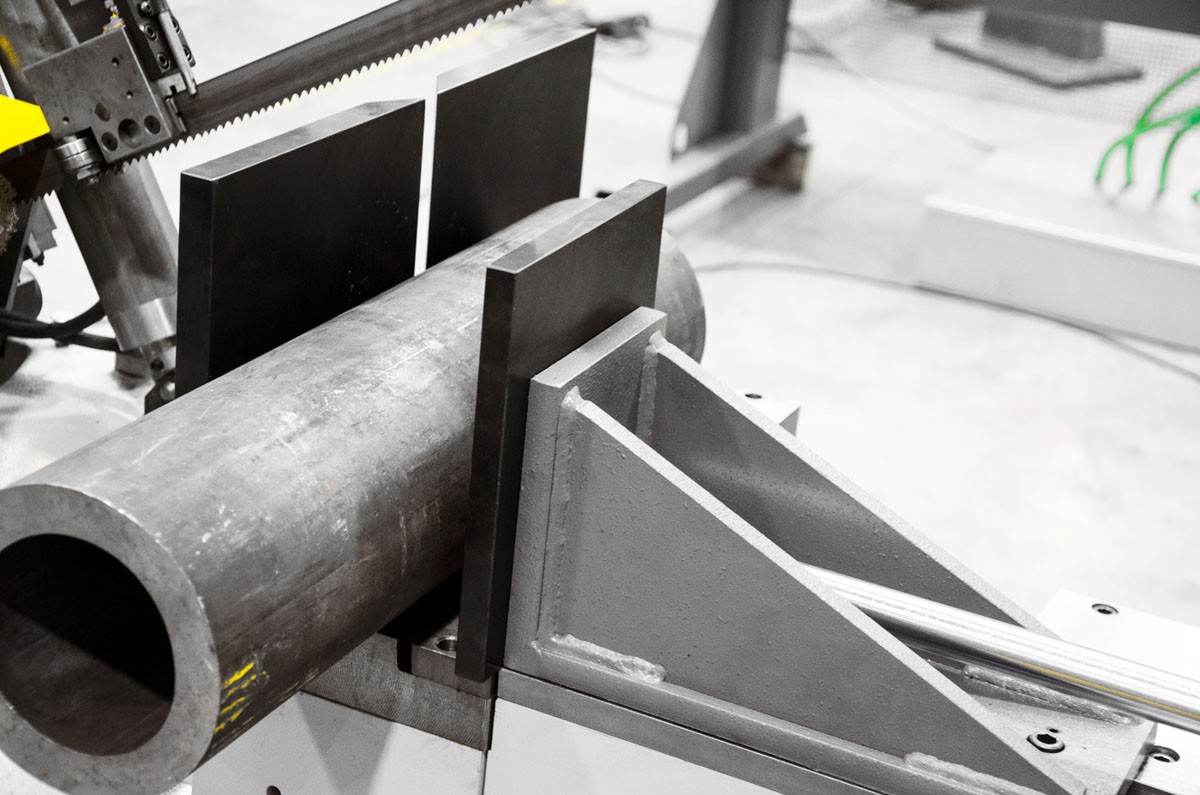

- Hydraulic clamping of the material
- Hydraulic cutting pressure regulation (solid material - pipe)
- Digital mitre angle display
- Electronic height limitation
- Electrical band tension monitoring with saw band breakage control

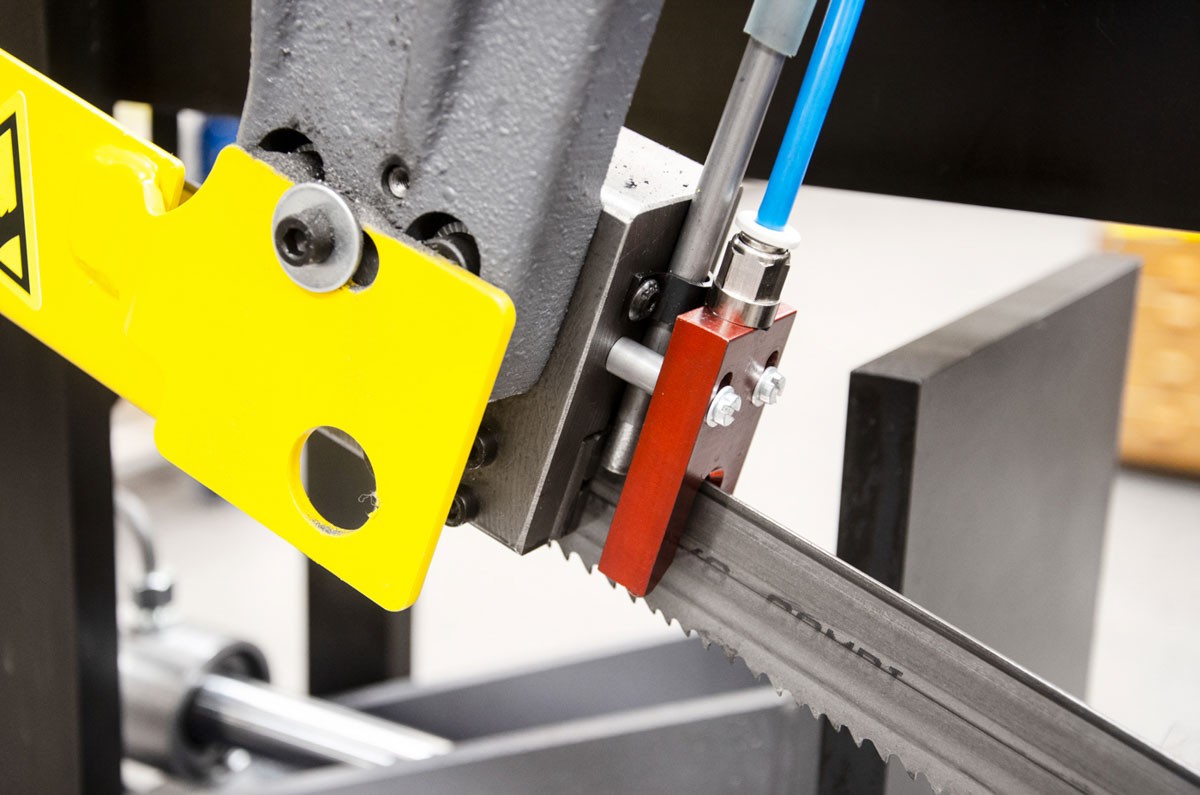

- Carbide saw blade guides and guide rollers
- Coolant pump with double feed to the saw blade guides
- Bi - metal saw blade M 42 Driven chip brush
Technical data ELMAG TRANSVERSE 610.440 DGH BOMAR metal band saw
Cutting range max.
610x440 mm
Saw blade length
3,800 mm
Sawband height
27 mm
Saw blade thickness
0.9 mm
Cutting angle
0-60 °
Speed stages
infinitely variable
cutting speed 1/2
22-90 m/min
Saw blade drive Motor power
1,100/1.500 W
Network connection
400/50-60 V/Hz
Inlet height
760 mm
Remaining piece length
30 mm
Length
2,000 mm
Width
750 mm
Height
1,210 mm
Weight
493 kg
Highest quality of ELMAG machines
Benefit from a 2-year warranty from ELMAG
Accessories for ELMAG machines on request
