Product Highlights ELMAG Universal lathe INDIVIDUAL 1000/200 - Vario

Individual 1000/200

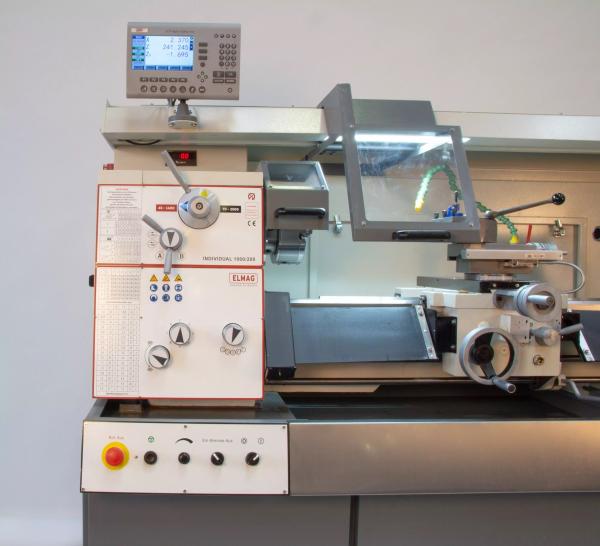

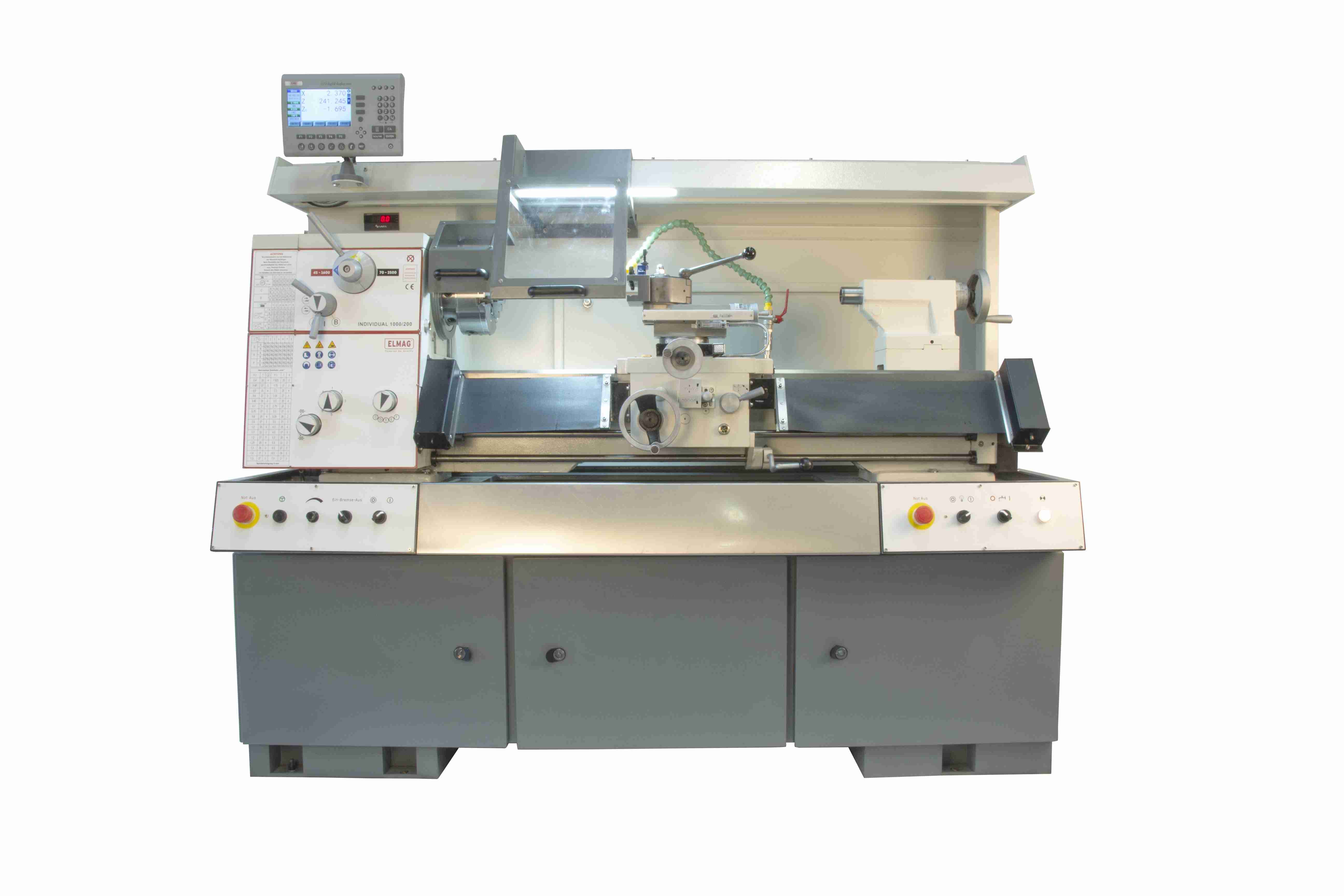

The Individual is a compact centre lathe for the specialist and is ideally suited for training and maintenance. With infinitely variable speed control and a digital speed display, the machine always enables the cutting speed to be matched precisely to the material.

Thanks to precision bearings and a weight of 850 kg, the machine runs particularly smoothly and is designed for demanding continuous operation. It enables turning size production over slides up to Ø 200 x 1,000 mm. The INDIVIDUAL 1000/200 has a 2,400 watt motor, infinitely variable speed adjustment from 45 - 2,500 rpm and 48 longitudinal and transverse feeds.

ADVANTAGES

Coolant tank and pump integrated in the machine base
Infinitely variable speed setting incl. digital display
LED lighting
Automatic central lubrication
Digital position display for 3 axes with colour display
Electromagnetic motor brake
Large protective cover for a clean working environment

Technical data ELMAG Universal lathe INDIVIDUAL 1000/200 - Vario

Tip width	1000 mm
Tip height	200 mm
turning diameter over bed	400 mm
turning diameter over carriage	260 mm
turning diameter without bridge	560 mm
bridge length	235 mm
cross slide way	175 mm
top slide way	95 mm
turning chisel cross-section, max.	25x25 mm
rotating feed intake	D1 - 5
mandrel holding fixture (screw mandrel)	MK 5 mm
spindle bore	51 mm
rotational speed	45 - 2500 rpm
speed gradually	continuously variable
longitudinal feed	0,043 - 0,653 mm/rev
cross feed rates	0,027 - 0,413 mm/rev
module thread metric	0,4 - 7 mm
inch thread, gears G	4 - 56 G/'
inch module thread, Gears G	4 - 56 G/'
lead screw gradient	4 mm
lead screw diamteter	22 mm
sleeve holding fixture	MK 3
quill diameter	50 mm
spindle stroke	120 mm
motor power	2400 W
coolant pump	40 W
voltage	400/50 V/Hz
length (total)	2114 mm
width (total)	998 mm
height (total)	1700 mm
Weight	850 kg

Highest quality of ELMAG machines
Benefit from a 2 year ELMAG warranty

Accessories for ELMAG machines on request
