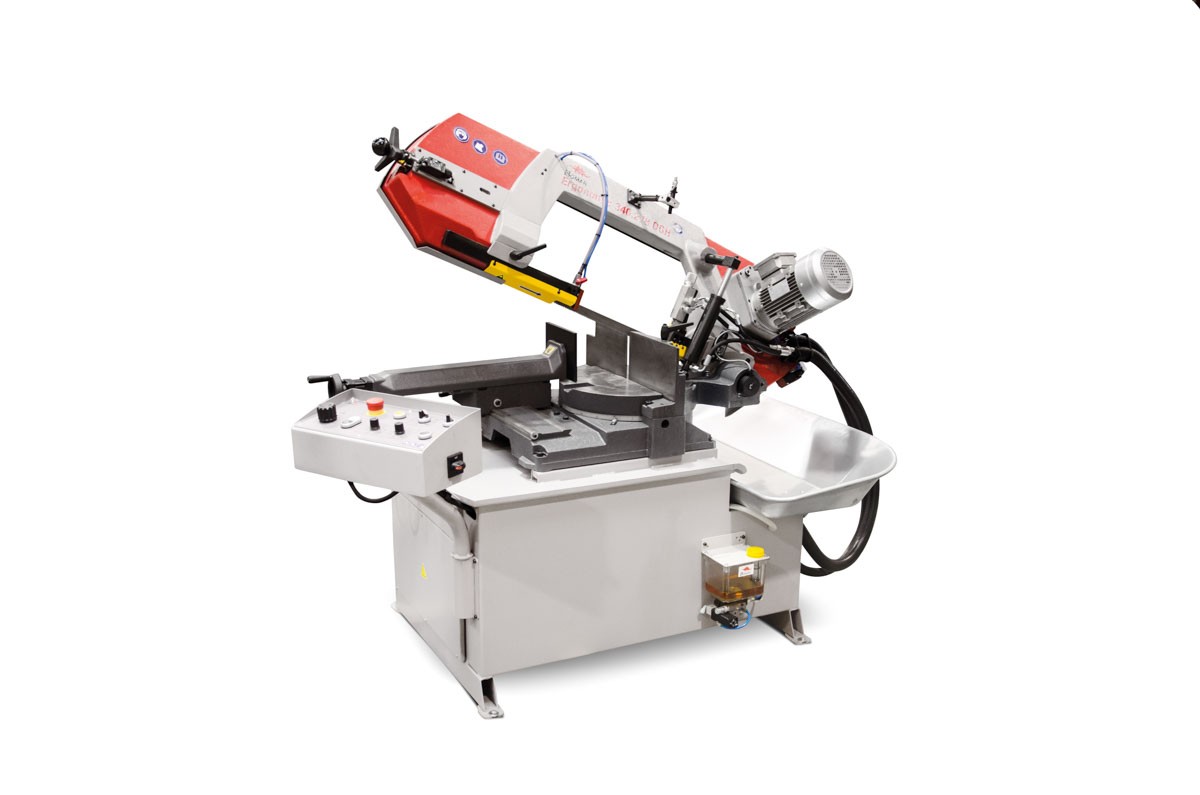

ELMAG ERGONOMIC 320.258 DG BOMAR metal band saw
Product Highlights ELMAG ERGONOMIC 320.258 DG BOMAR metal band saw
Manual metal band saw
Universal band saw machine with robust cast iron saw frame and saw blade of 27 mm. The precise carbide guide of the saw band, in pretensioned tapered roller bearings of the saw frame and synchronously running brushes for chip removal are a prerequisite for excellent cutting performance. The saw band is driven by an industrial drive with frequency converter and gear with helical gearing in an oil bath.
Universal band saw machine with robust cast iron saw frame and saw blade of 27 mm. The precise carbide guide of the saw band, in pretensioned tapered roller bearings of the saw frame and synchronously running brushes for chip removal are a prerequisite for excellent cutting performance. The saw band is driven by an industrial drive with frequency converter and gear with helical gearing in an oil bath.
-
Standard equipment ELMAG ERGONOMIC 320.258 DG BOMAR metal band saw
- - Sturdy cast iron frame
- Vise quick clamping device
- start/stop function
- Carbide saw blade guides
- Band saw blade BI-Metal -

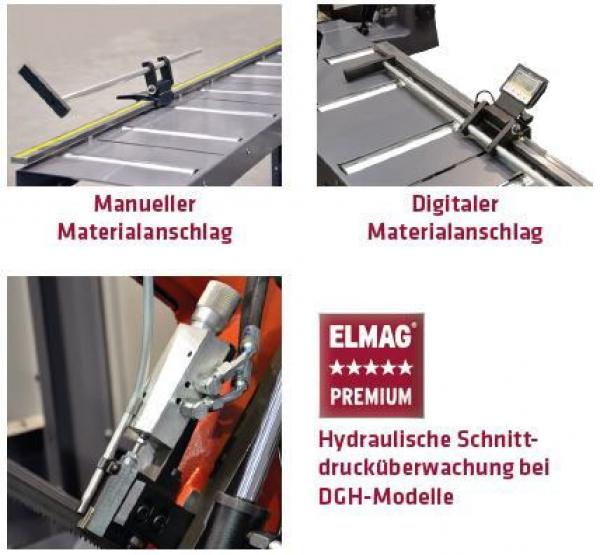

Special accessories ELMAG ERGONOMIC 320.258 DG BOMAR metal band saw
- - LaserLiner Laser Measurement Guideline
- Micro-spraying device 24V

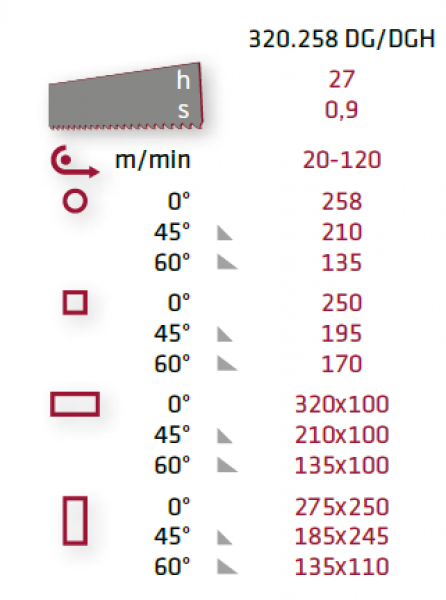

Technical data ELMAG ERGONOMIC 320.258 DG BOMAR metal band saw
Cutting range max.
320x250 mm
Saw blade length
2,910 mm
Sawband height
27 mm
Saw blade thickness
0.9 mm
Cutting angle
45-0-60 °
Speed stages
infinitely variable
cutting speed 1/2
20-120 m/min
Saw blade drive Motor power
1,500 W
Network connection
400/50-60 V/Hz
Inlet height
760 mm
Remaining piece length
20 mm
Length
1,700 mm
Width
1,480 mm
Height
2,000 mm
Weight
390 kg
Highest quality of ELMAG machines
Benefit from a 2-year warranty from ELMAG
Accessories for ELMAG machines on request
