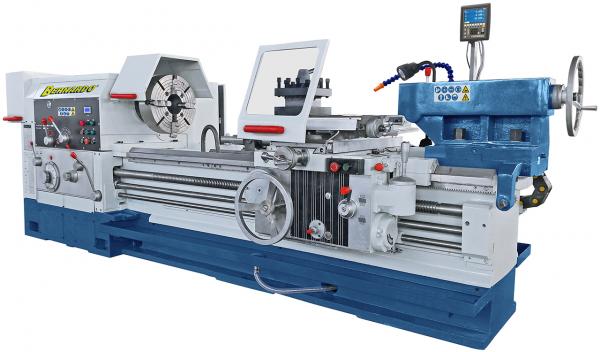

Bernardo universal lathe RDM 130

Max. Workpiece length

1500 mm

Max. Turning length

1300 mm

Swing diameter over bed

630 mm

Swing diameter over cross slide

340 mm

Pipe diameter min./max.

30 - 127 mm

Bed width

490 mm

Max. Workpiece weight

3000 kg

Travel x-axis

340 mm

Travel z-axis

1300 mm

Speed range

(18) 16 - 800 rpm

Spindle bore

130 mm

Longitudinal feed range

(26) 0.07 - 1.33 mm/rev

Area Plan Advances

(22) 0.02 - 0.45 mm/rev

Metric threads

(24) 1 – 14 mm

Inch thread

(40) 2 – 28 Gg/1“

Rapid traverse x-axis

3000 mm/min

Rapid traverse z-axis

4000 mm/min

Dimension tool shank

32 x 32 mm

Spindle sleeve holder

MK 5

Pin diameter

100 mm

Pinole path

250 mm

Engine power

7,5 KW

Machine dimension (W x D x H)

3700 x 1700 x 1600 mm

Weight approx.

4150 kg
