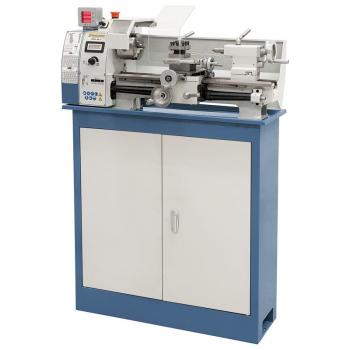

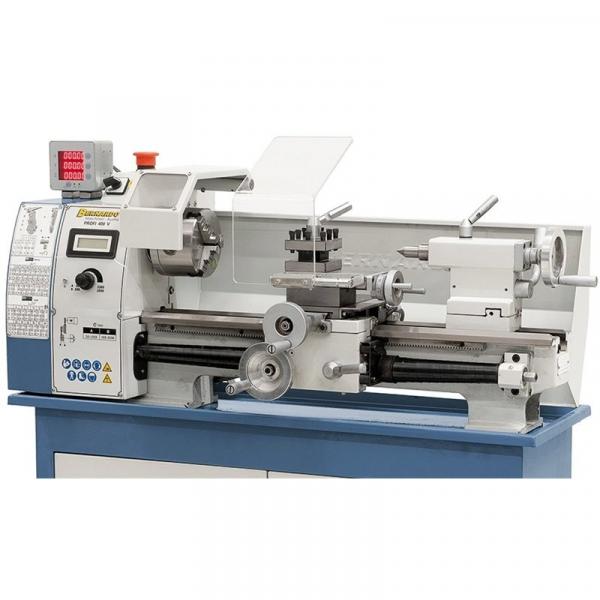

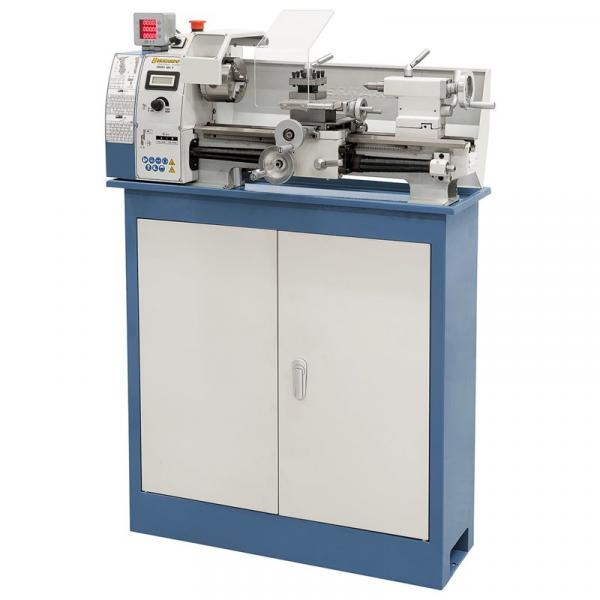

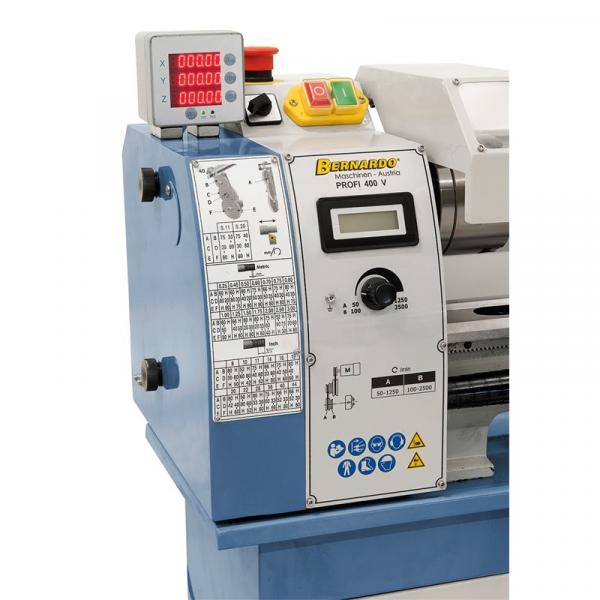

Bernardo table lathe Profi 400V incl. 2-axis digital display
TOP
Product features Bernardo Profi 400V table lathe incl. 2-axis digital display
The Profi 400 V bench lathe is equipped with an infinitely variable speed control as standard, the set speed is read off by means of a digital display. The optimal price-performance ratio makes this model ideal for model makers and hobby craftsmen.
- Ideally suited for machining steel, non-ferrous materials and plastics
- Versatile use: longitudinal turning, facing, boring, thread cutting,...
- With lead screw as standard for thread cutting or for automatic longitudinal feed
- With change gears as standard for cutting metric threads
- High concentricity of the spindle nose (better than 0.009 mm) due to precision ball bearings
- User-friendly arrangement of the switching elements
- Compact, small design, optimal price-performance ratio
- Electronic, infinitely variable speed control, enabling optimum adaptation of the cutting speed to the workpiece
Scope of delivery Bernardo table lathe Profi 400V incl. 2-axis digital display
- 2-axis digital display DT 30
- 3-jaw chuck DK 11-100 mm
- Quadruple toolholder
- Centre points
- Chuck guard

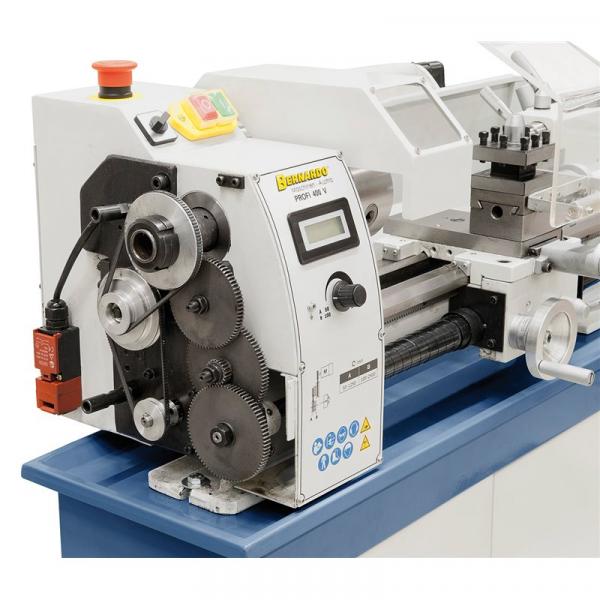

- Change gears
- Digital speed indicator
- Chip rear wall
- Chip tray
- Operating tool
Technical data Bernardo table lathe Profi 400V incl. 2-axis digital display
| Peak width | 400 mm |
| Centre height | 100 mm |
| Swing diameter over bed | 200 mm |
| Spindle bore | 20 mm |
| Mounting in the spindle bore | MK 3 |
| Speed range, infinitely variable | 50 - 1250 / 100 - 2500 rpm |
| Longitudinal feed range | (3) 0,089 - 0,198 mm/U |
| Metric threads | (14) 0,3 - 3 mm |
| Inch thread | (10) 10 - 44 Gg/1" |
| Pinole path | 50 mm |
| Spindle sleeve holder | MK 2 |
| Motor output power S1 100% | 0,60 kW / 230 V |
| Motor input power S6 40% | 0,80 kW / 230 V |
| Machine dimension (W x D x H)* | 930 x 400 x 380 mm |
| Weight approx. | 65 kg |
* without underframe
