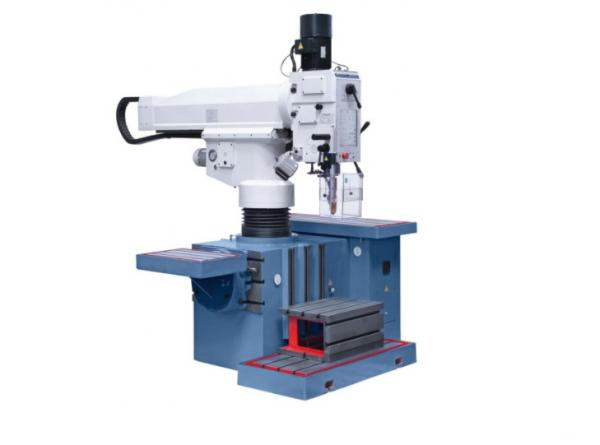

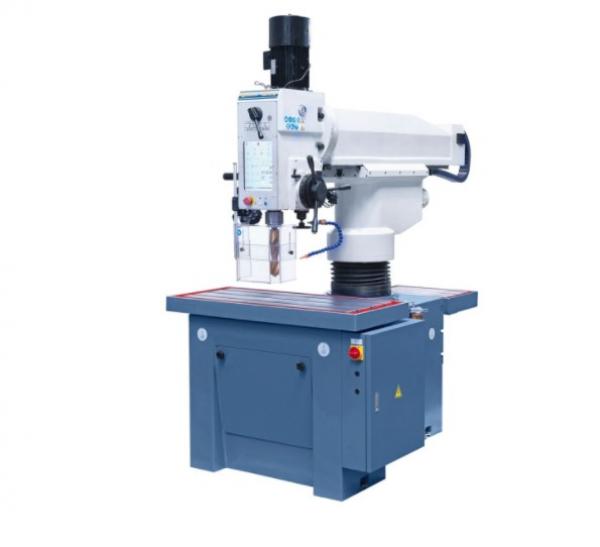

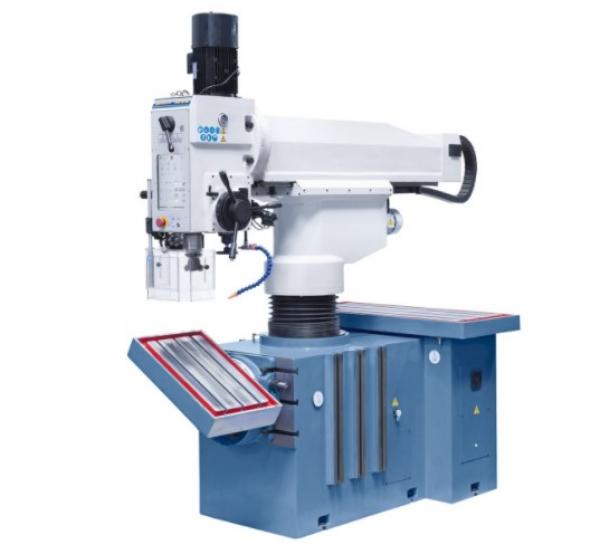

Bernardo radial drilling machine SRB 50 NC

The SRB 50 NC is new in our programme and the largest model in our high-speed radial drilling machine series. The special features of this model are the operation via a large touch screen and the quill feed via servo motor.

Features Bernardo radial drilling machine SRB 50 NC:

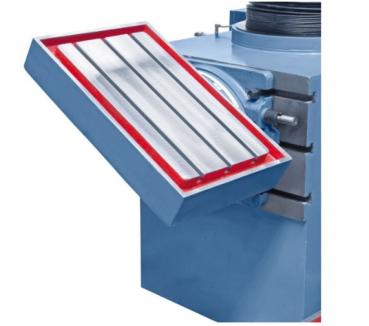

• A wide range of clamping and machining options due to the design-related construction

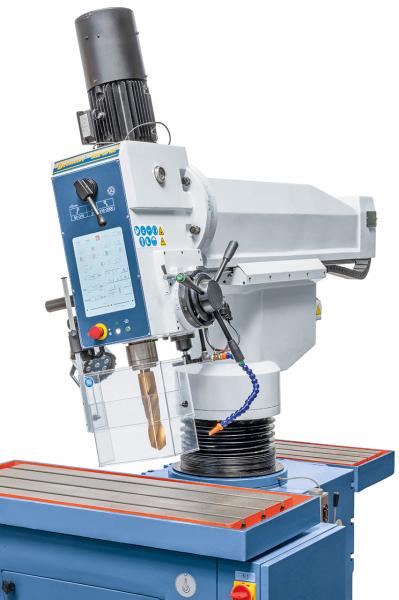

• Electromotive height adjustment of the drilling head without adjustment of the drilling position, ideal for deep hole drilling
• Large table surface (1200 x 500 mm) for simultaneous clamping of several workpieces
• Quick adjustment of the drill head to the workpiece, clamping is done hydraulically
• Standard with electronically infinitely variable speed control and 2 gear stages
• Heavily ribbed column ensures great rigidity of the boom
• Stable construction guarantees vibration-free working
• Spindle sleeve feed is via a high-quality servo motor
• Standard with infinitely variable speed control, the set speed can be read directly on the display

Scope of delivery Bernardo Radial Drilling Machine SRB 50 NC:

• Electromagnetic spindle feed

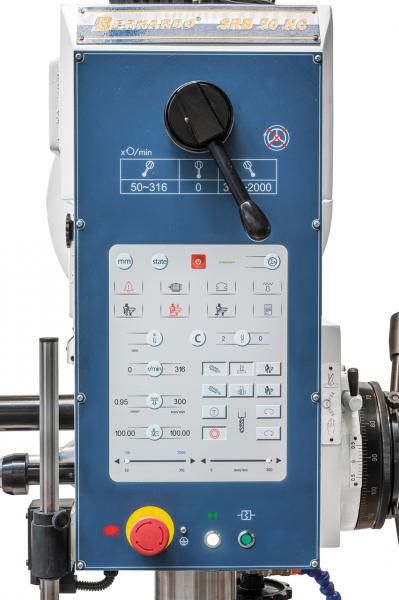

• Touchscreen
• Servo motor for spindle sleeve feed

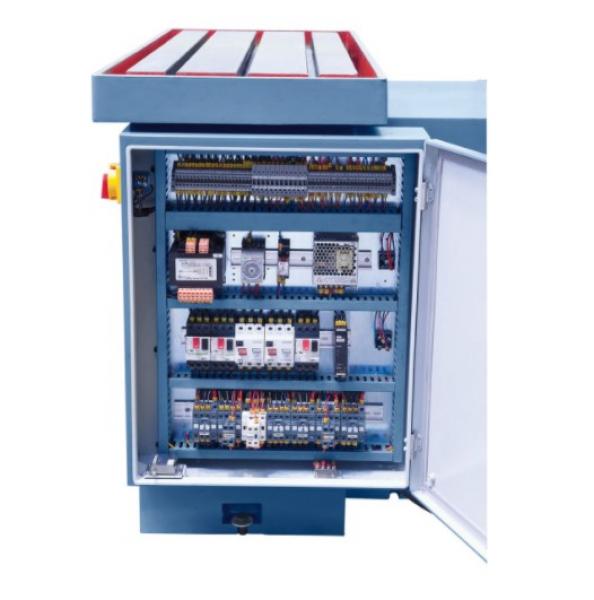

• Frequency converter

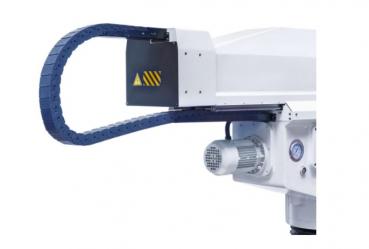

• Electromotive drill head adjustment
• Initial filling with Shell Tellus 46
• Reducing sleeve MK 4 / 3, 4 / 2, 3 / 1
• Thread cutting device
• Coolant device
• LED machine light
• Height-adjustable protective cover
• Operating tool

Available special accessories Bernardo Radial Drilling Machine SRB 50 NC:

• Bernardo thread cutting quick change chuck set MK 4 / M6 - M30 / 12 pcs. art. No.: 24-1100
• Bernardo machine vice MS 200 Art. No.: 28-1021
• Bernardo industrial drilling machine vice BMS 200 Art. No.: 28-2020
• Bernardo facing and boring head set diam. 75 mm with adapter MK 4 Art. No.: 25-1020

Technical data Bernardo Radial Drilling Machine SRB 50 NC:
