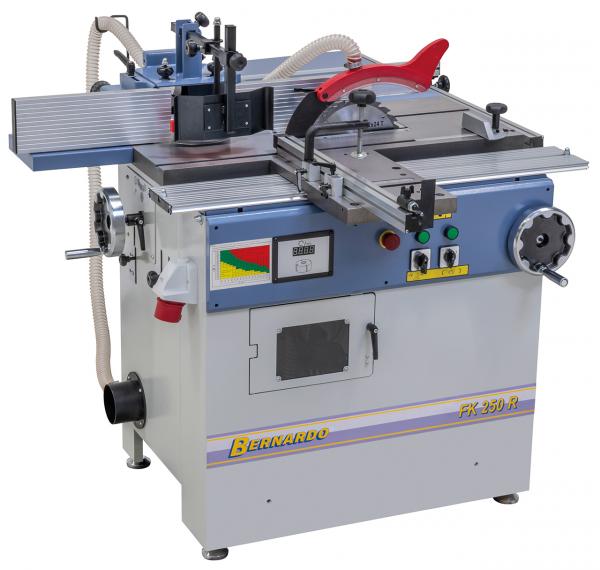

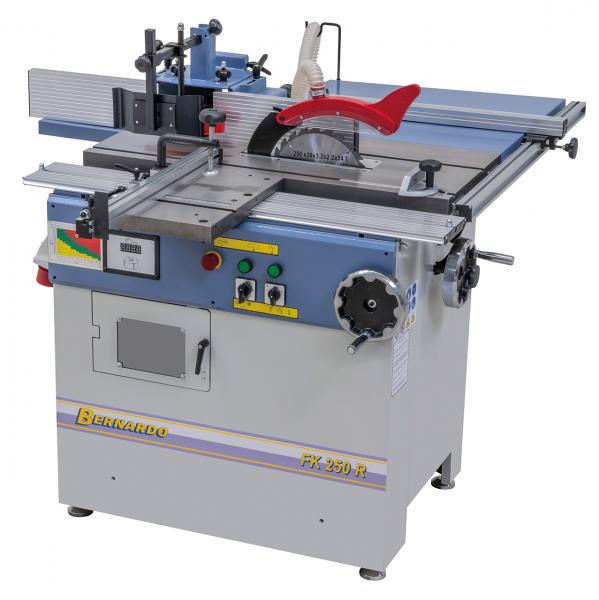

Bernardo FK 250 R circular saw/milling machine / 400 V
NEW
Product features Bernardo FK 250 R circular saw/milling machine / 400 V
The FK 250 R circular saw and milling machine comes with a roller table as standard. Its small and compact design makes this model ideal for hobbyists.
- Optimal price-performance ratio for hobbyists and DIY enthusiasts
- Solid milling guard with 100 mm extraction connection
- Ergonomically positioned switches and controls for comfortable working
- Solid grey cast iron table for vibration-free working, precision machined and ground
- The saw unit is adjusted using ergonomically positioned hand wheels
- Increased ease of use thanks to the standard roller table with aluminium stop
- Increased safety thanks to the emergency stop switch on the front
- Ideal for precise machining of boards, strips, beams, etc.
- Dynamically balanced milling spindle for vibration-free operation
Scope of delivery Bernardo FK 250 R circular saw/milling machine / 400 V
- HM saw blade 250 x 3.2 x 30 mm / Z 24

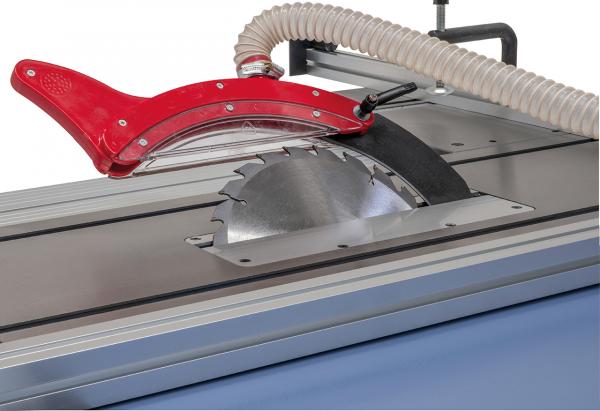

- Saw blade guard with extraction connection
- Connecting hose with Y-piece
- Mitre fence
- Hold-down clamp
- Table extension
- Aluminium fence with stop flap
- Rolling table

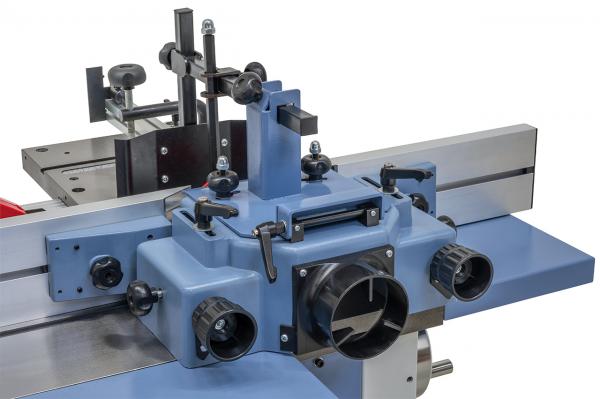

- Milling guard
- Digital speed display for the milling spindle
- Push stick
- Operating tool
Technical data Bernardo FK 250 R circular saw/milling machine / 400 V
| Circular Saw | |
| Table dimensions | 900 x 410 mm |
| Table height | 865 mm |
| Table extension | 2x 235 x 210 mm |
| Table width extension | 670 x 300 mm |
| Sliding table | 400 x 250 mm |
| Edging length | 710 mm |
| Max. saw blade diameter | 250 x 30 mm |
| Max. cutting height 90° / 45° | 80 / 60 mm |
| Cutting width at rip fence | 820 mm |
| Main saw blade speed | 4750 rpm |
| Extraction port Ø | 100 mm |
| Motor output S1 100% | 2.2 kW (1.5 HP) |
| Motor input S6 40% | 3.0 kW (4.0 HP) |
| Spindle Moulder | |
| Spindle diameter | 30 mm |
| Height adjustment | 110 mm |
| Spindle table opening | 170 mm |
| Clamping length | 90 mm |
| Max. tool diameter – profiling | 150 mm |
| Max. tool diameter – tenoning | 150 mm |
| Spindle speed | 1400 / 4000 / 6000 / 8000 rpm |
| Motor output S1 100% | 1.5 kW (2.0 HP) |
| Motor input S6 40% | 2.1 kW (2.8 HP) |
| Voltage | 400 V |
| Machine dimensions (W x D x H) | 1240 x 1620 x 1150 mm |
| Weight approx. | 179 kg |
