Zipper Wood splitter ZI-HS8TN

Product Highlights Zipper Wood Splitter ZI-HS8TN

• vertical design for splitting short wood (10-50cm)
• Sturdy, torsion-resistant steel construction

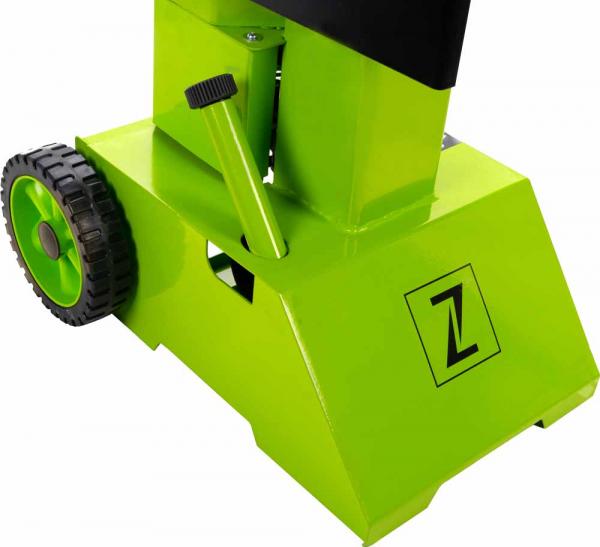

• easy transport by means of a trolley
• two-hand safety operation
• CEE plug with phase inverter
• Foldable support tables for space-saving storage
• Split stroke adjustment (end position)

Technical data Zipper log splitter ZI-HS8TN

• Motor power S6 in W: 3500
• Voltage: 400V / (50Hz)
• Protection class: IP 54

• Installation dimensions in mm: 845 x 935 x 1500

• Splitting force in t: 8
• max. splitting stroke in mm: 485
• splitting material diameter in mm: 80-300
• splitting length (without accessories) in mm: 100-500
• Hydraulic oil capacity in l: 4
• Hydraulic stroke in MPa: 21
• Forward speed in cm/s: 6
• Reverse speed in cm/s: 19.4

• Sound pressure level in dB(A): 77.8
• Handle vibration in m/s2: <2.5

• Gross weight in kg: 115.90
• Net weight in kg: 108.80

• Packaging width in mm: 400
• Packing length in mm: 560
• Packaging height in mm: 1,115

• EAN Code: 9120039234236
