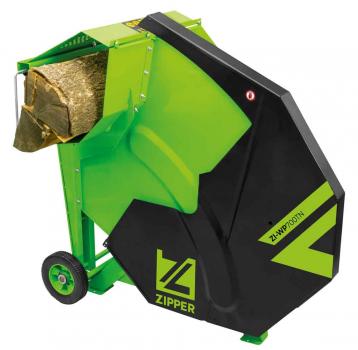

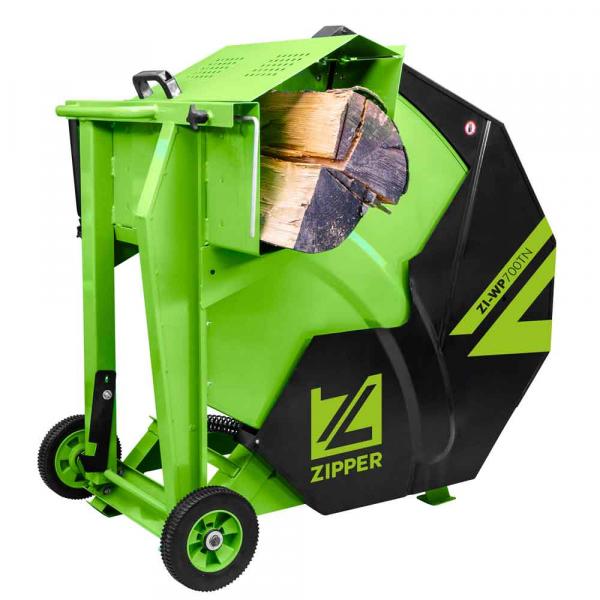

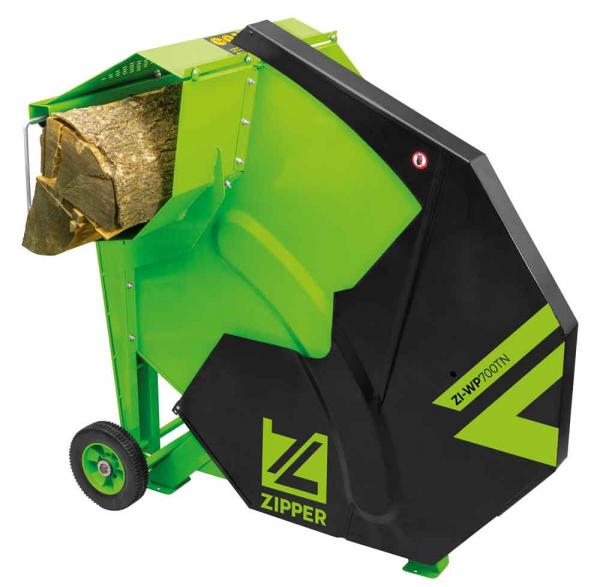

Zipper Tilting Saw ZI-WP700TN

Product Highlights Zipper Tilting Saw ZI-WP700TN

• robust steel construction
• incl. large 700 mm-ø saw blade with 64 teeth
• stable and large carriage
• tool for saw blade change
• transport lock
• phase inverter
• electronic motor brake
• fully assembled - ready for immediate use
• Rocker support extension

Technical data Zipper Tilting Saw ZI-WP700TN

• Motor power S6 in W: 5000 S2(15min)
• Voltage: 400V / 3p / 50Hz
• Speed in min-1: 1400
• Motor type: IP54

• Installation dimensions in mm: 1175x700x1185

• Cutting capacity roundwood in mm: max ø250 (L=300-1000mm)

• Bore in mm: ø 30
• Saw blade (/bore) in mm: ø700

• Sound power level in dB(A): 115
• Sound pressure level in dB(A): 101

• Gross weight in kg: 92.50
• Net weight in kg: 88

• Packaging width in mm: 750
• Packing length in mm: 1,075
• Packaging height in mm: 1,140

• EAN Code: 9120039233734
