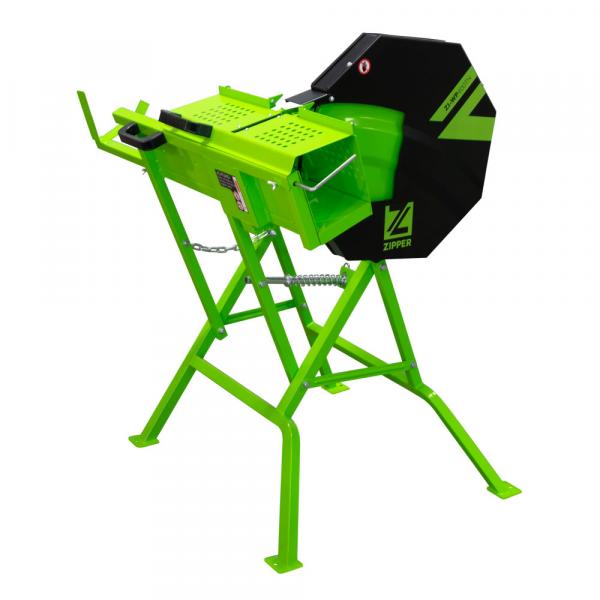

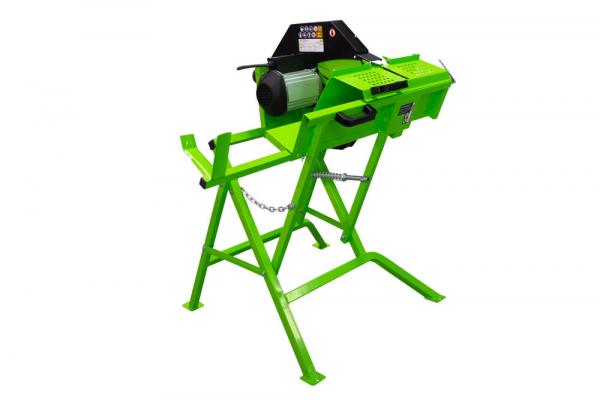

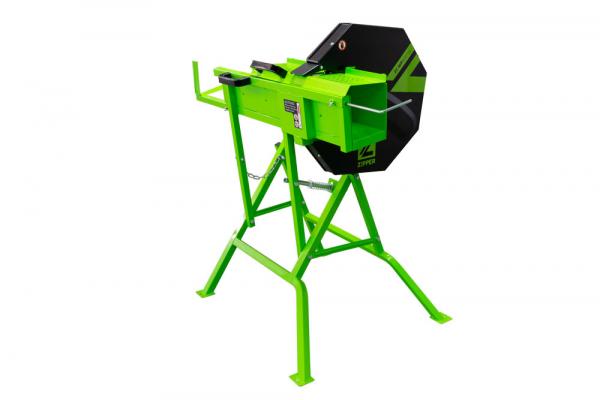

Zipper Tilting Saw ZI-WP400TN

Product Highlights Zipper Tilting Saw ZI-WP400TN

• robust steel construction
• incl. 405 mm-ø saw blade with 32 teeth

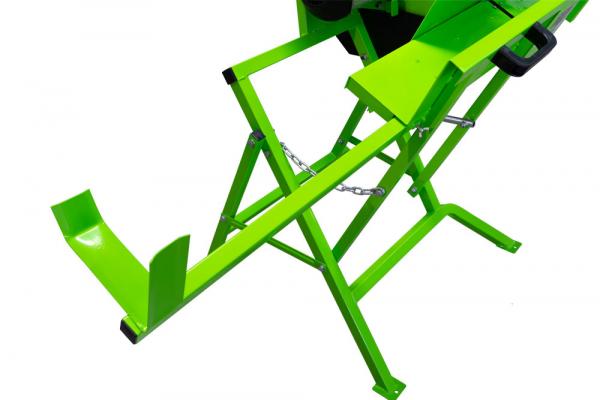

• log support extension
• log gauge (fence)
• tool for saw blade change
• must be assembled before use

Scope of delivery Zipper tilting saw ZI-WP400TN

• Saw blade Ø405 x 30 (32Z)

Technical data Zipper Tilting Saw ZI-WP400TN

• Motor power S6 in W: 2200 S2(15min)
• Voltage: 230V / 50Hz
• Protection class: IP54

• Installation dimensions in mm: 755 x 736 x 1046

• min. Workpiece length in mm: 300
• max. workpiece length: 1000
• max. workpiece diameter in mm: Ø 130

• Saw blade (/bore) in mm: 405 / (30)
• Saw blade speed in min-1: 2800

• Sound power level in dB(A): 115
• Sound pressure level in dB(A): 101

• Gross weight in kg: 41
• Net weight in kg: 36.30

• Packaging width in mm: 700
• Packing length in mm: 1,006
• Packaging height in mm: 233

• EAN Code: 9120039234427
