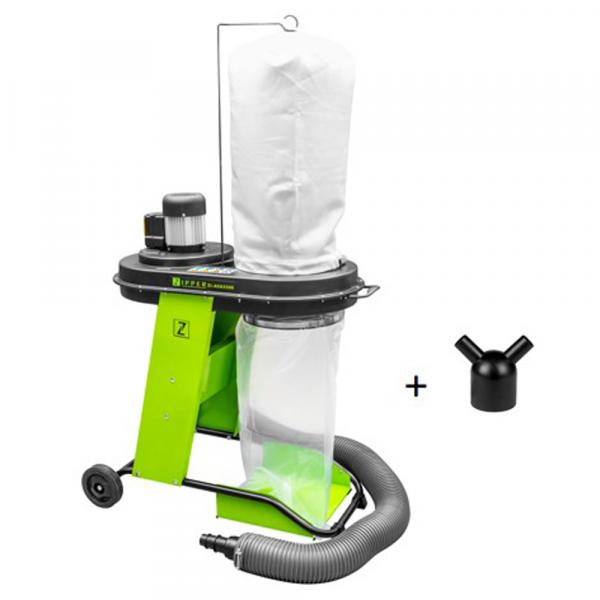

Zipper extraction unit ZI-ASA550ESA

Product Highlights Zipper Extraction System ZI-ASA550ESA

• Powerful extraction system for home and hobby use
• automatic switch-on to supply machines up to 2.4 kW (input power)
• uncomplicated handling
• 2.5m suction hose
• suction hose connection ø 100 mm
• incl. 4-piece adapter set 100/70 mm, 70/45 mm, 45/40 mm, 40/35 mm and double connection adapter 2 x ø35mm,
• incl. trolley, shavings and filter bag

Technical data Zipper extraction unit ZI-ASA550ESA

• Motor power S1 in W: 550
• Voltage: 230 V / 50 Hz
• Cable length: 1.83 m
• Speed in min-1: 2850

• Installation dimensions in mm: 900 x 500 x 1550

• Extraction capacity in m³/h: 1150
• Chip bag volume in L: 65
• Negative pressure in Pa: 1160
• Connected load: 2400 W

• Sound power level in dB(A): 99.5
• Sound pressure level in dB(A): 90

• Gross weight in kg: 21
• Net weight in kg: 19.50

• Packaging width in mm: 480
• Packing length in mm: 850
• Packaging height in mm: 400

• EAN Code: 9120039234151
