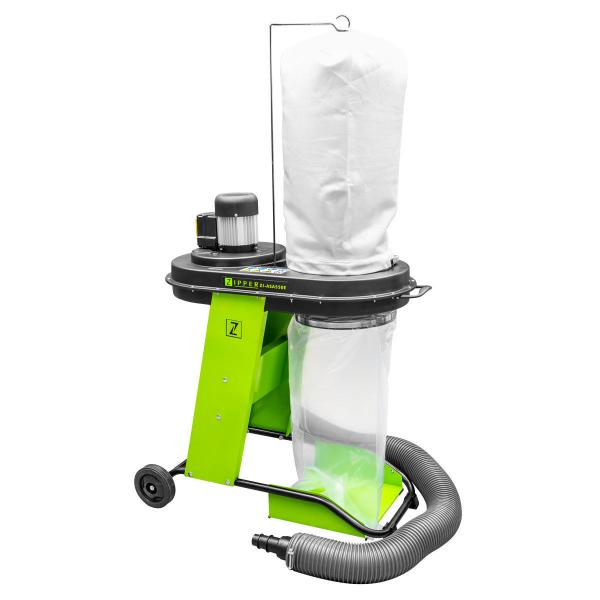

Zipper extraction unit ZI-ASA550E

Product Highlights Zipper Extraction System ZI-ASA550E

• powerful extraction unit for home and hobby use
• easy handling
• Hose length approx. 2 m
• hose connection 100 mm

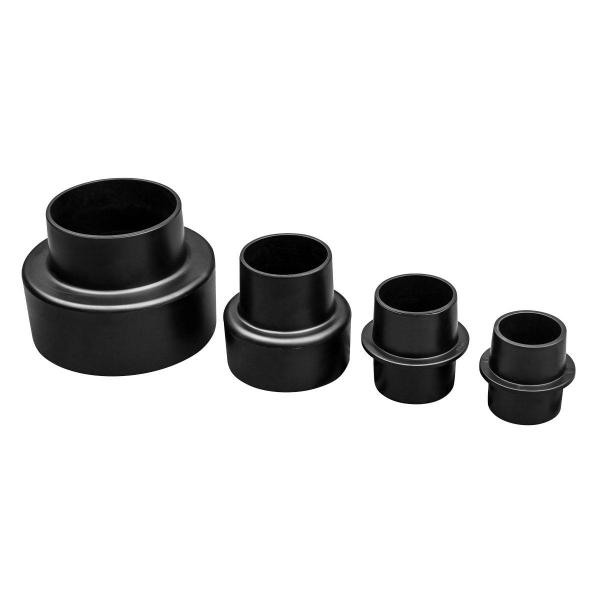

• incl. adapters 100/70 mm, 70/45 mm, 45/40 mm, 40/35 mm
• incl. trolley

Technical data Zipper extraction unit ZI-ASA550E

• Motor power S1 in W: 550
• Motor power S6 in W: 825
• Voltage: 230V 50Hz
• Speed in min-1: 2900

• Suction connection in mm: 100

• Extraction capacity in m³/h: 1150
• Chip bag volume in L: 65
• Negative pressure in Pa: 700

• Sound power level in dB(A): 95
• Sound pressure level in dB(A): 75

• Gross weight in kg: 20.40
• Net weight in kg: 18.50

• Packing width in mm: 380
• Packing length in mm: 890
• Packaging height in mm: 540

• EAN Code: 9120039233611
