Zarges ladder EFAmix S

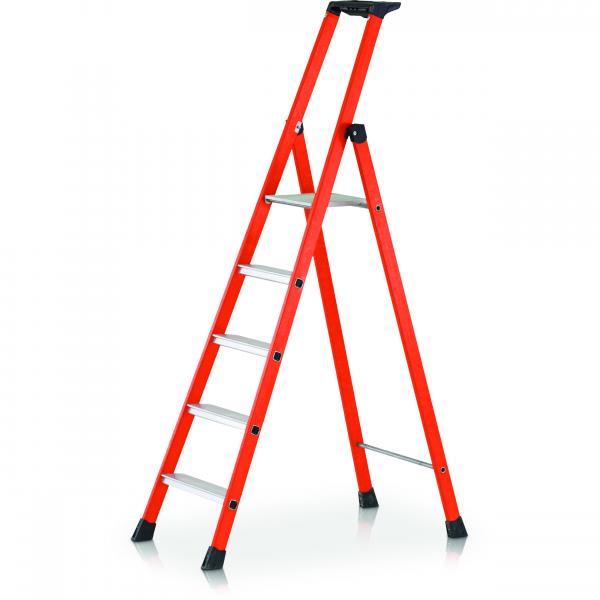

Product details Zarges ladder EFAmix S
The specialised ladder for all work in electrical environments.

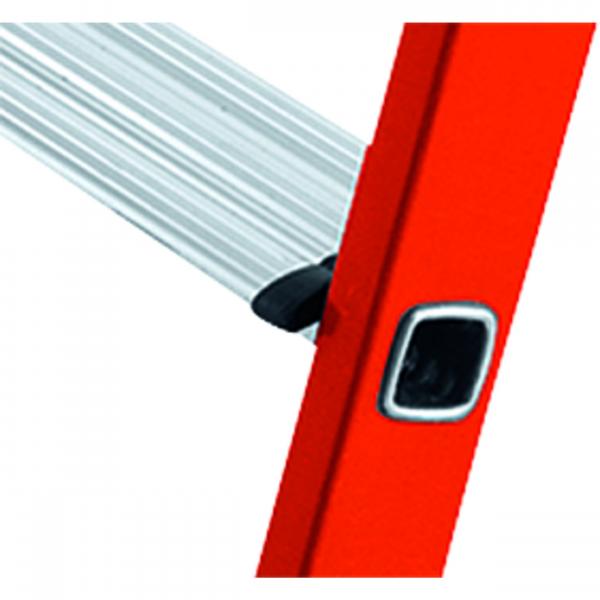

- 80 mm deep light metal steps with non-slip ribbing.

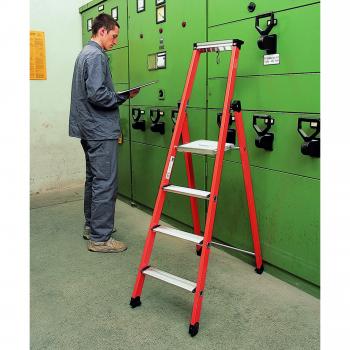

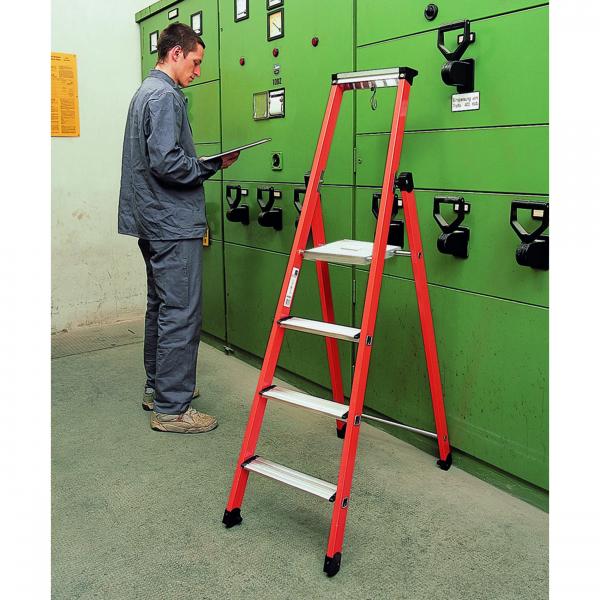

- For working on electrical systems thanks to insulating stiles made of glass fibre reinforced plastic.
- Safety platform (250 x 250 mm).
- Safe storage of accessories and tools in plastic storage tray.
- Only 88 mm deep when folded.
- Fulfils the high-voltage test for conductors made of insulating material in accordance with DIN EN 61 478.
- Steps made of extruded aluminium profile.
- Complies with the EN 131 professional standard.
Product features Zarges ladder EFAmix S
- Storage tray: Plastic
- Load: max. 150 kg
- Guarantee: 10 years
- Rail height: 50 mm
- Rail height: 50 mm
- Stile height riser/support section: 50 mm / 50 mm
- Material: aluminium / plastic
- Standards: EN 131 professional
- Platform width: 250 mm
- Platform length: 250 mm
- Rung/step-stile connection: flanged
- Vertical rung/step spacing: 230 mm
- Rung/step type: ribbed
- Step depth: 80 mm
All variants Zarges ladder EFAmix S
| Order no. | Working height | Weight | Floor space | Ladder length | Platform height | Number of steps incl. platform | Transport dimensions | Lower, outer width |
|---|---|---|---|---|---|---|---|---|
| 40431 | 2,7 m | 6 kg | 0,75 m × 0,52 m | 1,4 m | 0,68 m | 3 | 1.390 mm × ca. 520 mm × 100 mm | 0,52 m |
| 40432 | 2,9 m | 7 kg | 0,91 m × 0,55 m | 1,65 m | 0,91 m | 4 | 1.640 mm × ca. 550 mm × 100 mm | 0,55 m |
| 40433 | 3,15 m | 8 kg | 1,07 m × 0,57 m | 1,9 m | 1,14 m | 5 | 1.890 mm × ca. 570 mm × 100 mm | 0,57 m |
| 40434 | 3,35 m | 9 kg | 1,24 m × 0,6 m | 2,15 m | 1,37 m | 6 | 2.140 mm × ca. 600 mm × 100 mm | 0,6 m |
| 40435 | 3,6 m | 10 kg | 1,4 m × 0,62 m | 2,4 m | 1,6 m | 7 | 2.390 mm × ca. 620 mm × 100 mm | 0,62 m |
