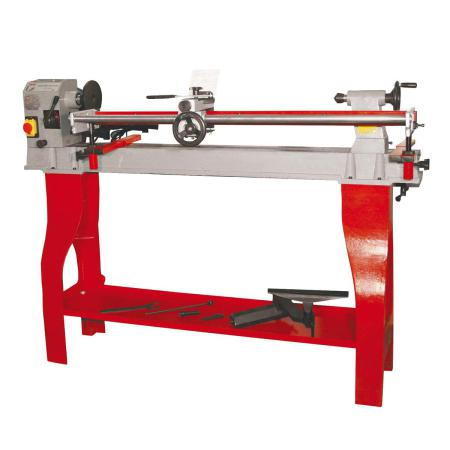

VD1100N400V Holzmann lathe variable speed

Product Highlights VD1100N400V Holzmann lathe variable speed​

• heavy cast iron base frame allows vibration-free working and stability
• Bed, base, tailstock and headstock made of solid grey cast iron

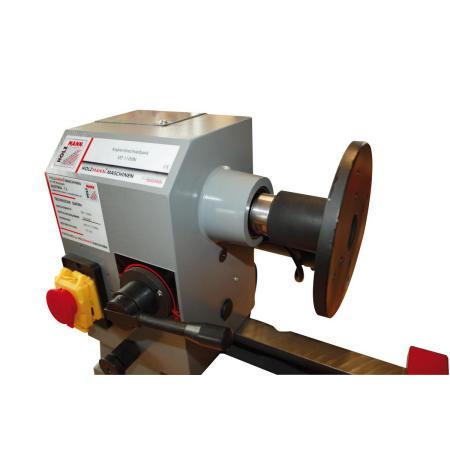

• Headstock can be turned 90°, therefore external turning is possible

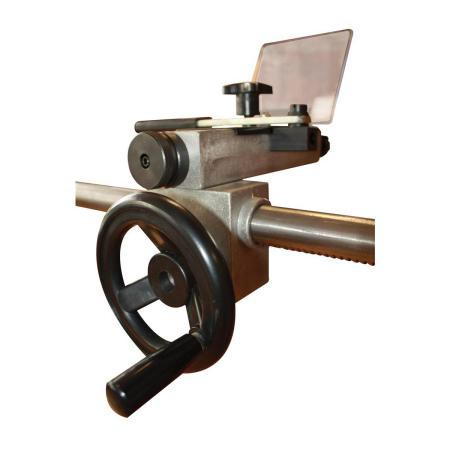

• Copying device for copying originals or according to templates
• Copy length 1000mm
• Headstock can be swivelled 90° - for large diameters

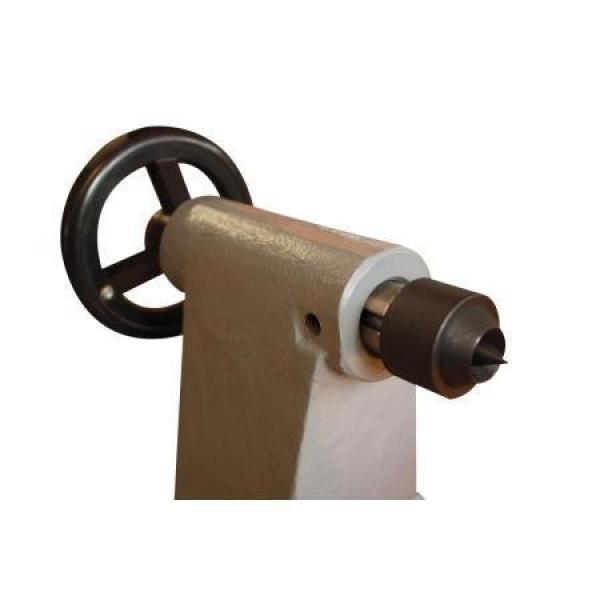

• MK2 tailstock
• Quick adjustment for tailstock and headstock
• large face plate

Scope of delivery VD1100N400V Holzmann lathe variable speed​

• Base frame,
• 4-point driver,
• ball bearing mounted rolling grains,
• face plate,
• Operating tool,
• Copying device,
• Hand rest

Technical data VD1100N400V Holzmann lathe variable speed​

• voltage: 400V
• Motor power S1 in W: 750
• Motor power S6 in W: 1100

• Table height in mm: 900
• Gross weight in kg: 149

• quill travel in mm: 60
• Copy tip height in mm: 80
• Spindle speed in min-1: 500-2000
• Tailstock cone: MK2/MT2
• centre height in mm: 185
• centre distance in mm: 1100
• Thread: M33 DIN800
• Spindle bore in mm: 12
