Column Drilling Machine with Belt Drive

In addition to outstanding precision, pillar drilling machines are characterized first and foremost by the variety of their possible applications. Different models are recommended depending on the intended use.

Column drills are primarily used in metalworking. Accuracy is particularly important in this field. Other advantages of pillar drills: the drills do not break off as quickly because - unlike hand-held drills - they hit the workpiece straight on. In addition, greater pressure can be built up with these devices. What's more, many pillar drills are equipped with a depth limiter.

Buy Bernardo pillar drilling machine

The fact that pillar drilling machines are primarily designed for metalworking can be seen, among other things, in the usually comparatively small drilling table. Especially when it comes to cutting threads, users should make sure to choose a machine with clockwise/anticlockwise rotation switching. The standard drilling depth is between 50 and 80 millimeters.

A large number of pillar drilling machines have a speed control. This is regulated by means of different stepped pulleys and the shifting of a V-belt and, depending on the model, is available with infinitely variable digital control. As a general rule, the following applies to pillar drills: The smaller the drill, the more important it is to have a correspondingly high speed. The exception: when thread cutting, a low speed is needed. The motor power ensures that the speed is as constant as possible. The higher, the smoother. Do-it-yourselfers do well with speeds of 120 - 2500 rpm. The standard. The corresponding motor power is between 350 and 700 watts.

For the drill bit holder salvage column drills two different variants: offered as a gear rim chuck or with a quick-action drill chuck. With the latter, a drill chuck key is unnecessary. The nature of the chuck is of importance. With larger drill chucks, these only start at 1.5 millimeters and are therefore not suitable for DIY use.

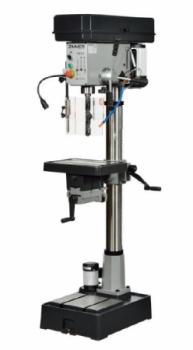

Zimmer BMS 32V Saeulenbohrmaschine
Powerful and smooth-running pillar drilling machine for the workshop area.
3.270,90 EUR
19% VAT excl. Shipping costs
Zimmer UNIMAX 2S Saeulenbohrmaschine
Powerful, precise universal pillar drill with a wide range of applications.
4.907,90 EUR
19% VAT excl. Shipping costs

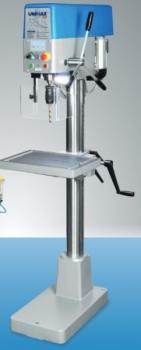

Zimmer UNIMAX 2 TAP Saeulenbohrmaschine
The popular UNIMAX 2 universal drilling machine has been equipped with a TAP thread-cutting device and an LED machine light to expand its already wide range of applications.
6.190,90 EUR
19% VAT excl. Shipping costs

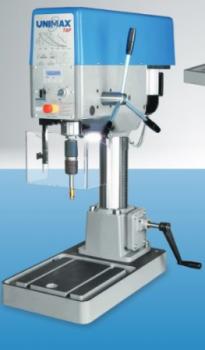

Zimmer UNIMAX 3 TAP pillar drilling machine
MAXION UNIMAX 3 with "TAP" thread cutting device
7.204,90 EUR
19% VAT excl. Shipping costs

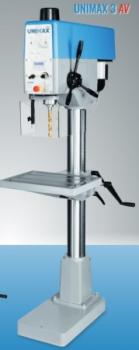

Zimmer UNIMAX 3 AV pillar drilling machine
Modern, precise production pillar drilling machine according to the proven UNIMAX 3 concept with infinitely variable feed drive, automatic tool ejector and chip breakage control as standard.
8.581,90 EUR
19% VAT excl. Shipping costs

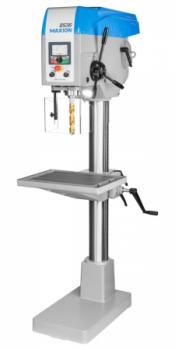

Zimmer MAXION BS 36 Saeulenbohrmaschine
Powerful MK4 machine with easy-scroll control wheel and large display.
Price on request

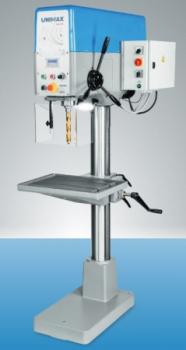

Zimmer UNIMAX 4 BASIC pillar drilling machine
Universal and very modern pillar drilling machine with MK 4 spindle, thread cutting device, enormous power and very good price/performance ratio.
13.394,90 EUR
19% VAT excl. Shipping costs
Zimmer UNIMAX 3 TAP Säulenbohrmaschine
Universal and very modern pillar drilling machine with MK 4 spindle, thread cutting device, enormous power and very good price/performance ratio.
Price on request

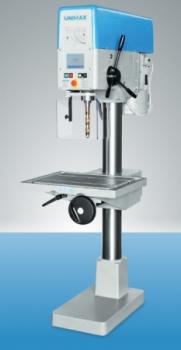

Zimmer UNIMAX 4 pillar drilling machine
Powerful, universally applicable pillar drilling machine with infinitely variable feed rates and spindle speeds.
15.360,90 EUR
19% VAT excl. Shipping costs
Zimmer BS 50 AVST Saeulenbohrmaschine
Price on request
Zimmer BMS25 Pillar drilling machine
NEW
Powerful and smooth-running pillar drill for the workshop area.
1.790,90 EUR
19% VAT excl. Shipping costs

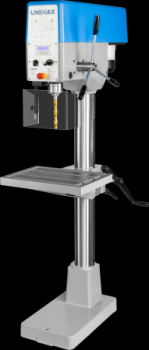

Zimmer UNIMAX 3 pillar drilling machine
NEW
Powerful, precise pillar drill with a wide range of applications, drill table adjustable via rack and worm gear and can be swivelled around the pillar. Right/left rotation reversing switch. Emergency stop button. Full motor protection. Star grip. Digital display for speed as standard.
5.424,90 EUR
19% VAT excl. Shipping costs

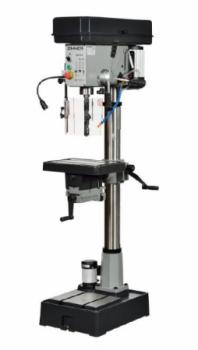

Zimmer BMS 32 Saeulenbohrmaschine
Powerful and smooth-running pillar drilling machine for the workshop area.
2.690,90 EUR
19% VAT excl. Shipping costs
1 to 37 (from a total of 37)

Frequently asked questions about the pillar drill:

What can I use a pillar drilling machine for?

Basically, you can use a pillar drilling machine to machine various materials, such as wood, metals and plastics. It is best suited for small to medium-sized workpieces. With pillar drilling machines, or with the Bernardo drilling machines, you can create a variety of machining options with just a few simple steps.

What are the advantages of pillar drilling machines?

The column drilling machines convince above all with their speed and precision. In addition, they require little space and have comparatively little weight. They are very stable and, unlike hand-held drills, hit the workpiece straight on. This means that the drills only break off in rare cases, even when working on metal.

What should I look for when buying?

First, you should clarify your intended use. It is also important what workpieces you want to work with and what size they will be. For a model maker, a smaller version, such as the Bernardo SB 25 S pillar drilling machine, is sufficient, while the Bernardo SB 40 Profi pillar drilling machine is more suitable for industrial operations. You can find all important information in our BHM-Maschinen online store. If you are unsure or have individual questions, please do not hesitate to contact us. We will be happy to assist you with advice.

Can I use the pillar drilling machines for workpieces of different sizes?

Of course you can machine different sized workpieces in the pillar drilling machines. Most of the machines are adjustable with the help of swiveling and height-adjustable work tables and speed controls. Here, too, we will be happy to advise you so that you can find the pillar drilling machine that perfectly fits your needs.

Which suppliers of pillar drilling machines are offered?

We, at BHM-Maschinen, offer you only high quality products from ELMAG, Bernardo and Zimmer. All manufacturers enjoy our fullest confidence and are offered and recommended by us with the best conscience.
