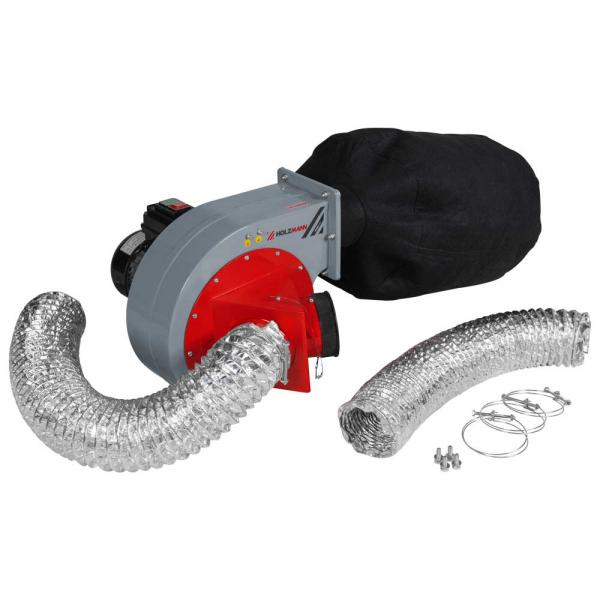

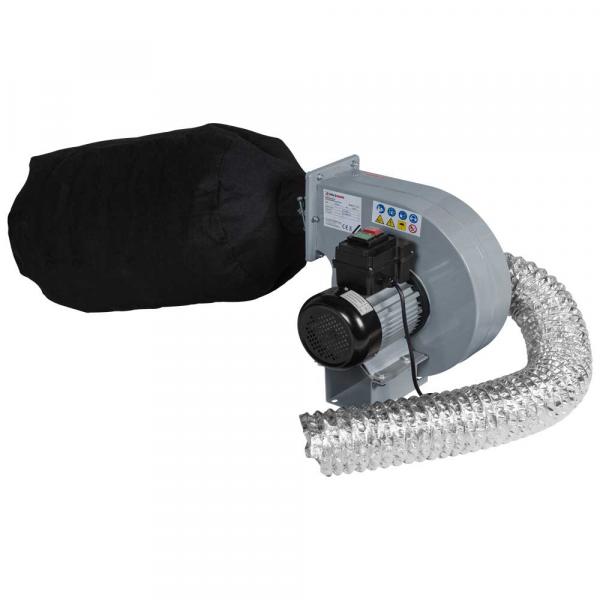

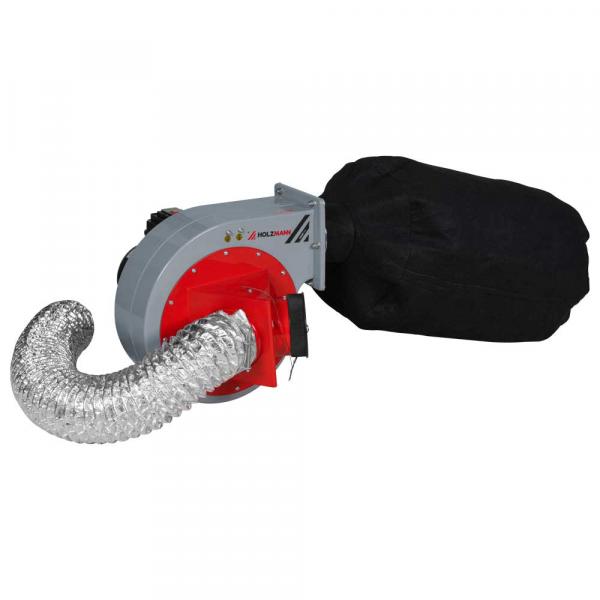

MABS700_230V Holzmann extraction system for metal grinding machines
Product highlights MABS700_230V Holzmann extraction system for metal grinding machines
The HOLZMANN MABS700 extraction system – the ideal addition to your metal grinding machine!

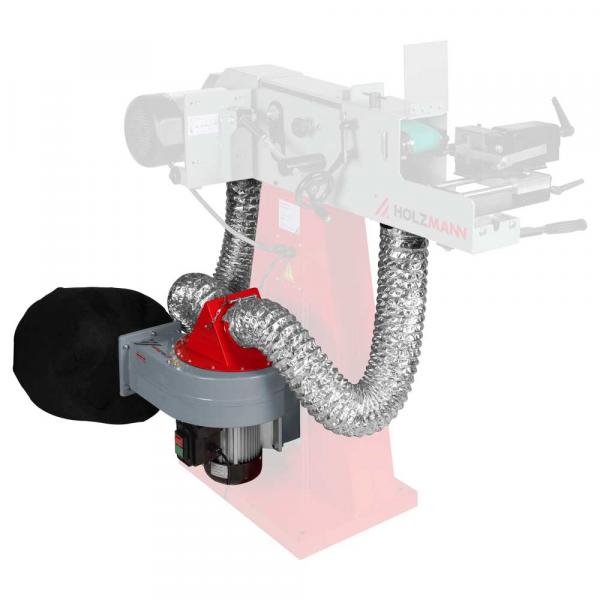

Equipped with two flexible connection hoses, it ensures efficient dust and chip extraction directly at the point of use. Thanks to its practical motor mount, the MABS700 can be easily mounted on machines such as the MSM75_3In1 – for clean, safe and powerful working.
- Chip bag Ø 350 x 500 mm
- 2 connection hoses Ø100mm
- L: ~1m
- 1 x cover cap
- 850 m³/h extraction capacity
Technical data MABS700_230V Holzmann extraction system for metal grinding machines
| Motor Data | |
|---|---|
| Motor power S1 in W | 750 |
| Voltage | 230 V / 50 Hz |
| General Dimensions | |
| Dust extraction port in mm | 2 x Ø 100 |
| Footprint in mm | 755 x 455 x 533 |
| Dust Extraction Systems | |
| Extraction capacity in m³/h | 850 |
| Chip bag diameter in mm | Ø 350 |
| Chip bag length in mm | 500 |
| Fan wheel diameter in mm | Ø 230 |
| Vacuum pressure in Pa | 910 |
| Noise and Vibrations | |
| Sound power level in dB(A) | 87 |
| Sound pressure level in dB(A) | 75 |
| Weight | |
| Gross weight in kg | 15 |
| Net weight in kg | 13.50 |
| Shipping Dimensions | |
| Packaging width in mm | 440 |
| Packaging length in mm | 460 |
| Packaging height in mm | 400 |
| General Data | |
| EAN code | 9120132141233 |
