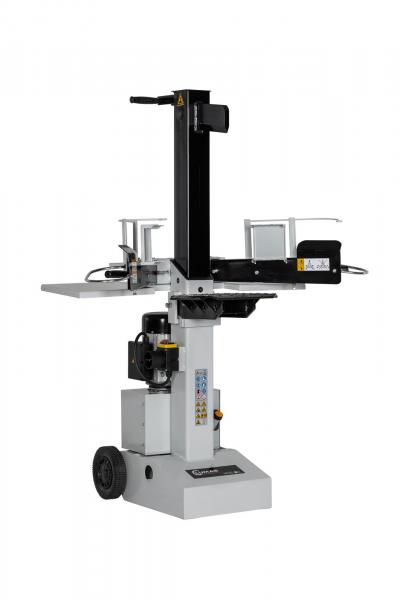

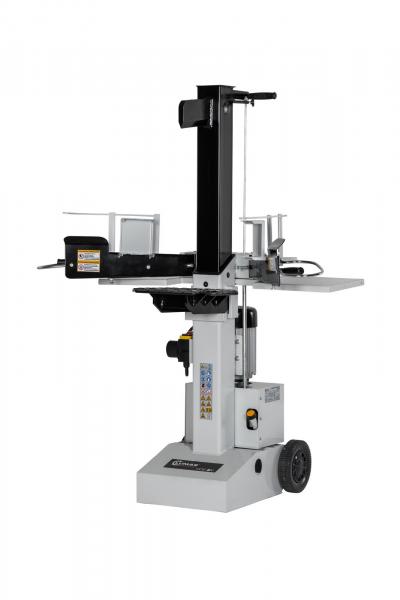

Lumag Vertical Hydraulic Log Splitter HOS-8N

Technical facts Lumag Vertical Hydraulic Log Splitter HOS-8N:

• Complies with the latest safety standards
• Suitable for common household sockets
• Vertical design for splitting short wood
• Innovative design on the splitting wedge for 30% faster splitting
• Sturdy torsion-resistant steel construction
• 2-hand safety operation, hand guard and flexible wood holding device

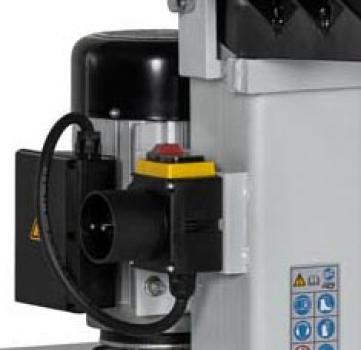

• With drive unit as standard

Technical data Lumag Vertical Hydraulic Log Splitter HOS-8N:

• Operating voltage 230 V / 50 Hz
• Motor power P1/P2 3.5 kW / 2.4 kW
• Operating mode S6 40%
• Protection class IP54
• Motor speed 2820 1/min
• Motor protection yes
• Phase inverter no
• Splitting force 8 t
• Splitting material diameter: 80 - 350 mm
• Splitting length 250 - 550 mm
• Hydraulic oil quantity max. 4.5 litres (HLP46)
• Hydraulic pressure 28.0 MPa
• Working speed approx. 4.5 cm/s
• Return speed approx. 20.0 cm/s
• Dimensions (L x W x H) Splitting wedge retracted 990 x 860 x 1080 mm
• Dimensions (L x W x H) 1180 x 860 x 1550 mm Splitting wedge raised
• Weight (net / gross): 113 / 121 kg
• Packing dimensions (L x W x H): 570 x 400 x 1170 mm
