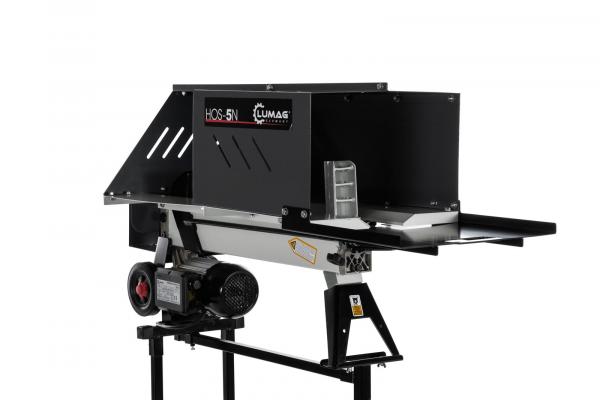

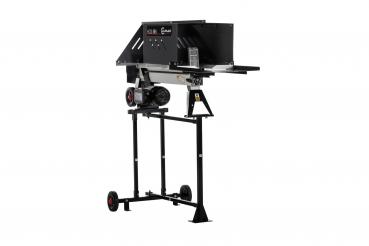

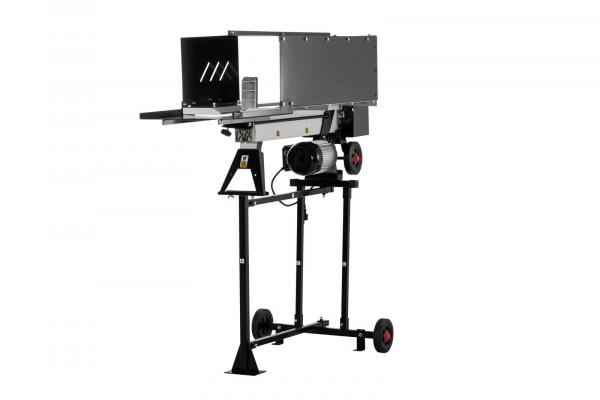

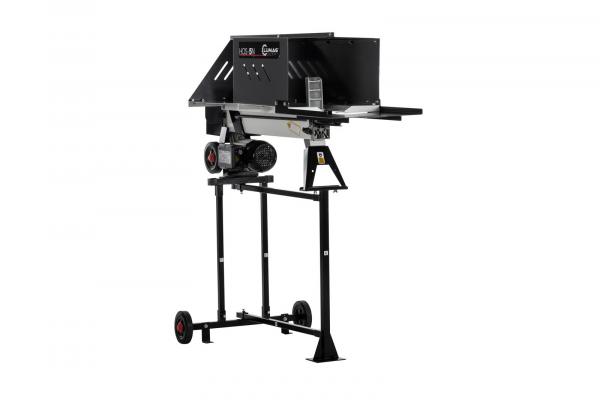

Lumag hydraulic firewood splitter HOS-5N

Technical facts Lumag hydraulic firewood splitter HOS-5N:

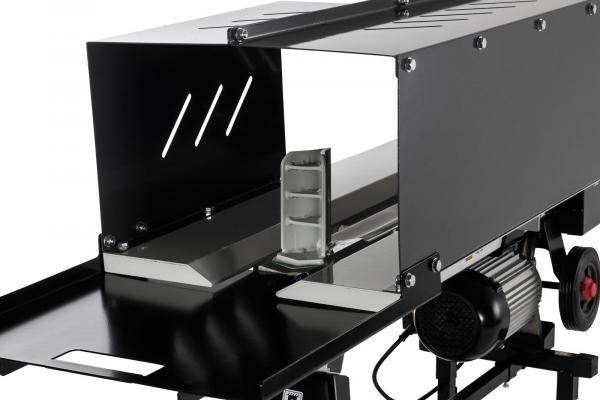

• Splitting protection device for more safety (acc. to 2017 standard)
• Horizontal design
• Compact and powerful, ideal for splitting firewoodStable, torsion-resistant steel construction
• Two-hand safety operation
• 2 wheels and a handle for easy transport
• With stroke limiter as standard! By adjusting the stop, the log can be set to any length between 150 - 520 mm can be made.

Technical data Lumag hydraulic firewood splitter HOS-5N:

• Operating voltage 230 V / 50 Hz
• Motor power P1/P2 1.5 kW / 0.989 kW
• Operating mode S3 80%
• Motor speed 2885 1/min
• Protection class IP54
• Splitting force 5 t
• Splitting length 150 - 520 mm
• Splitting material diameter 50 - 250 mm
• Hydraulic oil capacity max. 3.2 litres (HLP46)
• Hydraulic pressure 18 MPa
• Forward speed approx. 3.2 cm/s
• Return speed approx. 6.5 cm/s
• Dimensions without base 1380 x 465 x 650 mm
• Weight (net / gross) 59 / 63 kg
• Packing dimensions (L x W x H) 960 x 380 x 510 mm
