Technical facts Lumag brick cutting machine ZS-700PRON:

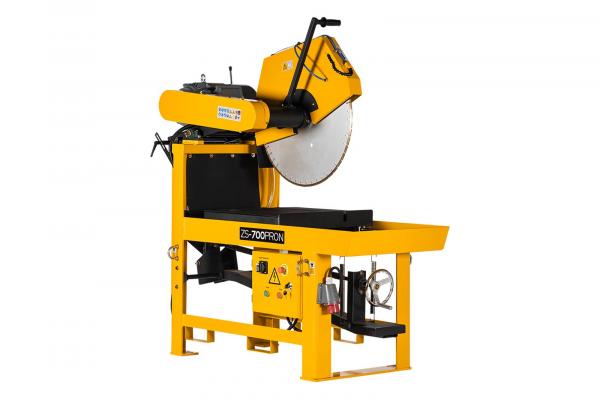

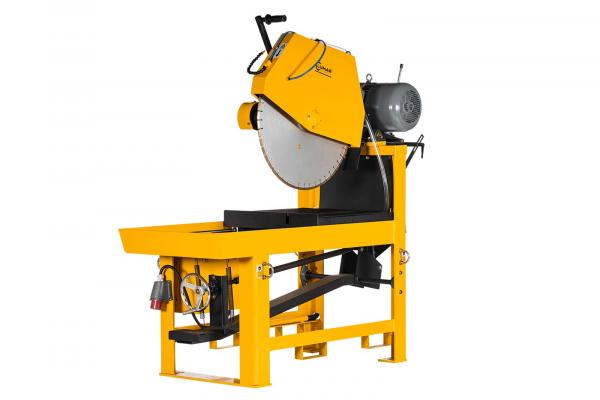

The ZS-700PRON brick cutting machine is a powerful motorised, three-phase all-round saw for daily use on the construction site. The supplied quality diamond saw blade with large cutting radius allows a cutting depth of 290 mm. In reverse cut 500 mm possible.
- Construction suitable for construction sites and low-maintenance

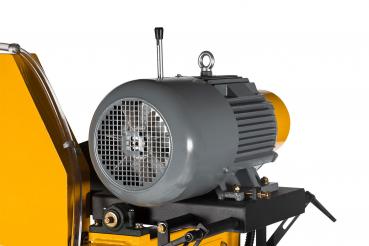

- Powerful three-phase motor with 5.5 kW (S1)
- Safety due to large saw hood
- Quality diamond saw blade

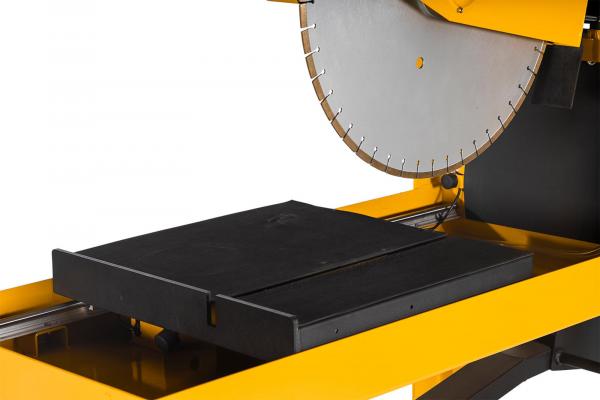

- Easily movable horizontal carriage on steel rollers with precision ball bearings
- Perfect saw blade cooling with the water supply system
- Easy to remove water pump (e.g. for cleaning or in case of frost)

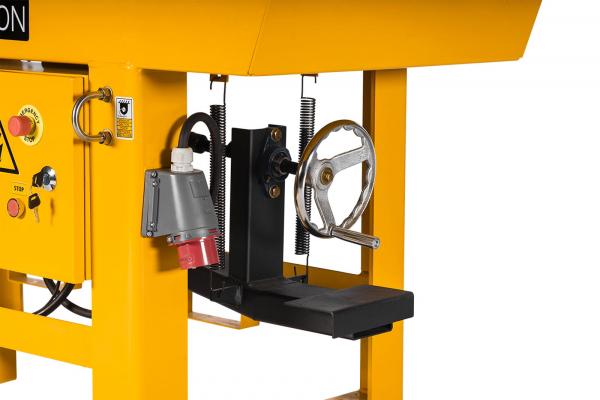

- Hand crank for convenient adjustment of the cutting depth
- Easy transport due to fork-lift truck mountings and attachment points
Technical data Lumag brick cutter ZS-700PRON:
- Motor power 5.5 kW (S1) / 400 V
- Power consumption 11 A / 3PH + N + PE
- Rated speed 1440 rpm
- Protection class IP 54
- Dimensions (L/W/H) 1637 x 670 x 1527 mm
- Table size L/600 x W/625 mm
- Diamond saw blade diameter 700 mm
- Saw blade holder 50 mm
- Cutting shaft speed 1870 rpm
- Cutting depth max. 290 mm
- Cutting length max. 510 mm
- Sound power level LWA 105.45 dB(A)
- Continuous sound pressure level LPA 102.4 dB(A)
- Own weight 345 kg
- Transport weight 375 kg
- Packaging dimensions (L/W/H) 1600 / 760 / 1260 mm
