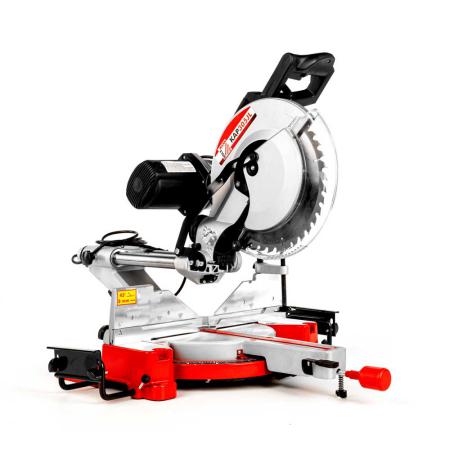

KAP305JL230V Holzmann pull- crosscut and mitre saw incl. saw blade

Product Highlights KAP305JL230V Holzmann pulling crosscut and mitre saw incl. saw blade​

• extremely low noise and gentle on the mechanics due to belt drive

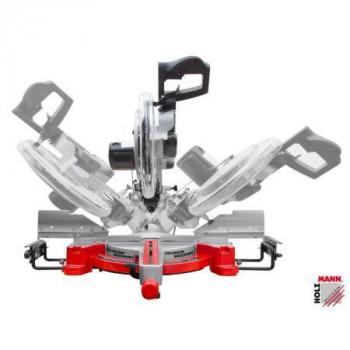

• Saw unit left/right (-45°/+45°) tiltable and rotatable (-45°/+45°)
• Extendable backgauge
• Narrow laser line marks exactly the cutting line
• Depth stop included in delivery
• particularly smooth-running and precision-bearing mounted double-guide pulling system
• very solid aluminium die-cast base frame ensures optimum stability

Scope of delivery KAP305JL230V Holzmann pull-cut and mitre saw incl. saw blade​

• Carbide circular saw blade,
• laser,
• Table extension

Technical data KAP305JL230V Holzmann pull-cut and mitre saw incl. saw blade​

• Motor power S1 in W: 1600
• Speed in min-1: 4200
• Motor power S6 in W: 2000 S6(25%)
• Cable length: 1.2 m
• Protection class: IP 20

• Suction connection in mm: Ø 68
• Installation dimensions in mm: 895 x 900 x 700
• Gross weight in kg: 25

• max. cutting height 45° in mm: 85
• max. cutting height 90° in mm: 115
• max. cutting length 90° in mm: 330
• max. cutting length 45° in mm: 240

• Saw blade (/hole) in mm: 305

• Sound power level in dB(A): 108
• Sound pressure level in dB(A): 95
