KAP305ECO230V Holzmann pull, chop and mitre saw

Product Highlights KAP305ECO230V Holzmann pull-, chop- and mitre saw​

• extremely low noise and gentle on the mechanics due to belt drive

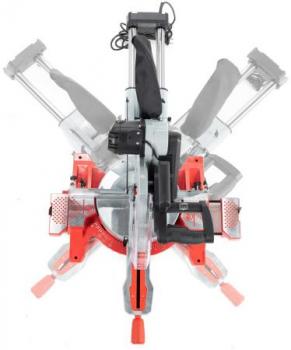

• Saw unit left/right (-45°/+45°) tiltable and rotatable (-45°/+45°)
• Extendable backgauge
• Narrow laser line marks exactly the cutting line
• Depth stop included in delivery
• particularly smooth-running and precision-bearing mounted double-guide pulling system
• very solid aluminium die-cast base frame ensures optimum stability

Scope of delivery KAP305ECO230V Holzmann pull-, chop- and mitre saw​

• Carbide circular saw blade,
• laser,
• Table extension

Technical data KAP305ECO230V Holzmann pull, chop and mitre saw​

• Motor power S1 in W: 1800
• Motor power S6 in W: 2000
• voltage: 230V
• Speed in min-1: 3800
• Protection class: II
• Motor type: IP20
• Cable length: 2 m

• Suction connection in mm: Ø 37.5
• Installation dimensions in mm: 890 x 600 x 490 (max 1140 x 1020 x 690)
• Gross weight in kg: 25

• max. cutting height 90° in mm: 105
• max. cutting height 45° in mm: 60
• max. cutting length 90° in mm: 330
• max. cutting length 45° in mm: 230

• Saw blade (/hole) in mm: 305
• Drill hole in mm: 25,4

• Sound power level in dB(A): 108
• Sound pressure level in dB(A): 95
