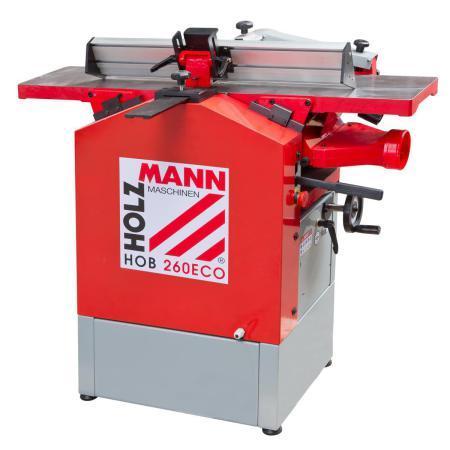

HOB260ECO400V Holzmann surface and thickness planer

Product Highlights HOB260ECO400V Holzmann surface and thickness planer​

• stable substructure ensures high stability
• Dressing fence swivels
• grey cast iron tables that can be opened to the side for comfortable thickness planing
• Suction connection enables dust- and chip-free working
• Feed can optionally be switched off

Scope of delivery HOB260ECO400V Holzmann surface and thickness planer​

• Strip planer knife 3pcs. (250x30x3mm),
• Dressing fence,
• Operating tool,
• Shaft cover

Technical data HOB260ECO400V Holzmann surface and thickness planer​

• Dressing max. chip removal in mm: 3
• Dressing stop in mm: 700x130
• Swivel range of dressing fence: 90-45
• Dresser Table size in mm: 1085x256

• Motor power S1 in W: 1500
• Motor power S6 in W: 2100
• Feed speed: 5.5
• voltage: 400V / 3 / 50 Hz

• Installation dimensions in mm: 1084x472x1050
• Table height in mm: 850
• Suction connection in mm: 100
• Gross weight in kg: 165

• Thickness planer Table size in mm: 245x590
• Thickness planing max. chip removal in mm: 2

• Planer shaft diameter in mm: 75
• Planer shaft speed in min-1: 4000
• Number of planing knives: 3

• Sound power level in dB(A): 93
