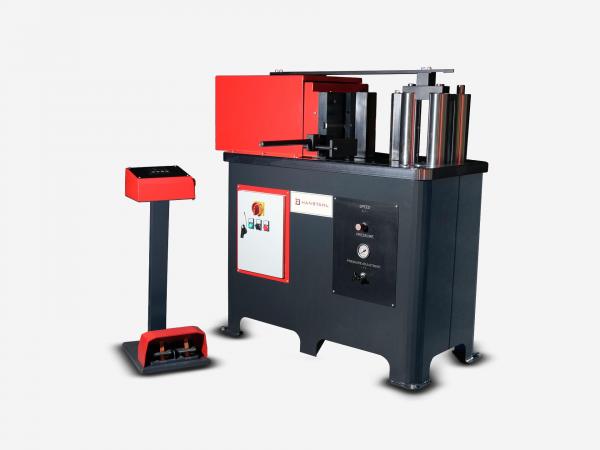

Hanstahl P150 HYDRAULIC HORIZONTAL PRESS
HANSTAHL P-Series Hydraulic Horizontal Press Machine was manufactured for making all productions such as bending, cutting, shaping and punching for standard or special molds such as profile, pipe, plate, sheet etc. High capacity of our Horizontal Hydraulic Press Machines will help you to prepare a awesome forging parts and all sorts of operations in all types material: flat bar, pipe, various profiles, rods etc.
Features Hanstahl P150 HYDRAULIC HORIZONTAL PRESS:

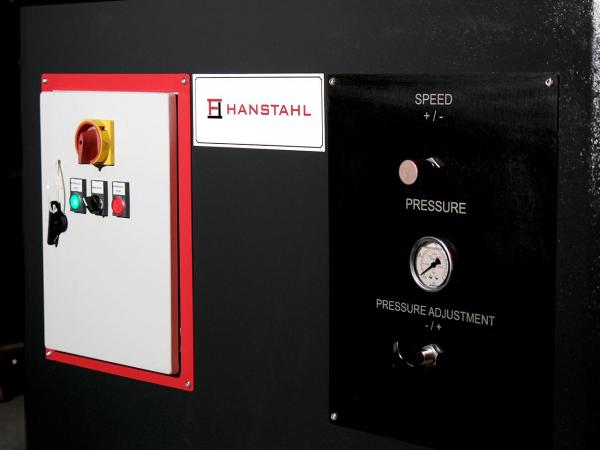

- Mobile Control Unit
- Digitally adjustable forward-backward distance position
- Adjustable working pressure
- Corresponds to CE Standards
- High strength body

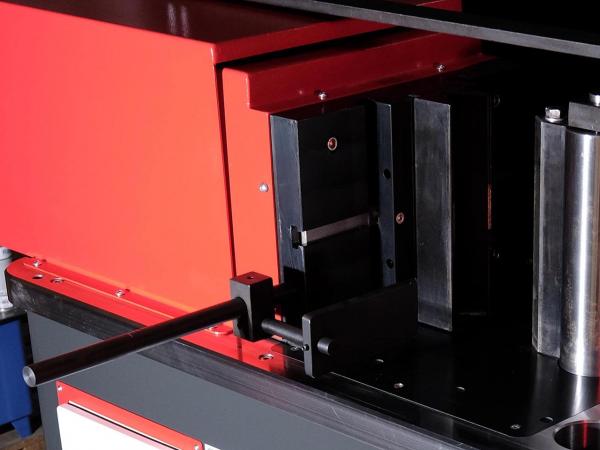

- Adjustable Backgauge
- Quick Mold Connection System
- Mobile Control Unit
- Digitally adjustable forward-backward distance position
- Adjustable working pressure
- Corresponds to CE Standards
- High strength body
- Adjustable Backgauge
- Quick Mold Connection System
Technical data Hanstahl P150 HYDRAULIC HORIZONTAL PRESS:
Unit : P150Max Pressure At 200 Bars: ton 150
Oil Tank Capacity: lt 150
Bending Capacity Flat Material: mm 350×35
Bending Capacity Round Tubes: mm 127×12
Max Stroke: mm 350
Diameter Of Bolts: mm 135
Height Of Toolings: mm 350
Working Speed: mm/sec 10
Return Speed: mm/sec 10
Motor Power: kw 15
Net Weight: kg 2400
Size Of The Table (LxW): mm 900×1800
Working Height: mm 935
Length Of The Machine: mm 1900
Width Of The Machine: mm 1000
Height Of The Machine: mm 1800
Size Of Packing (WxLxH): mm 1100x2000x1900
