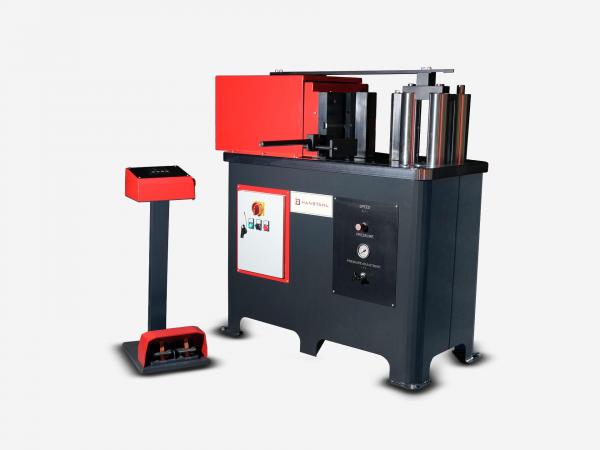

Hanstahl P100 HYDRAULIC HORIZONTAL PRESS
HANSTAHL P-Series Hydraulic Horizontal Press Machine was manufactured for making all productions such as bending, cutting, shaping and punching for standard or special molds such as profile, pipe, plate, sheet etc. High capacity of our Horizontal Hydraulic Press Machines will help you to prepare a awesome forging parts and all sorts of operations in all types material: flat bar, pipe, various profiles, rods etc.
Features Hanstahl P100 HYDRAULIC HORIZONTAL PRESS:

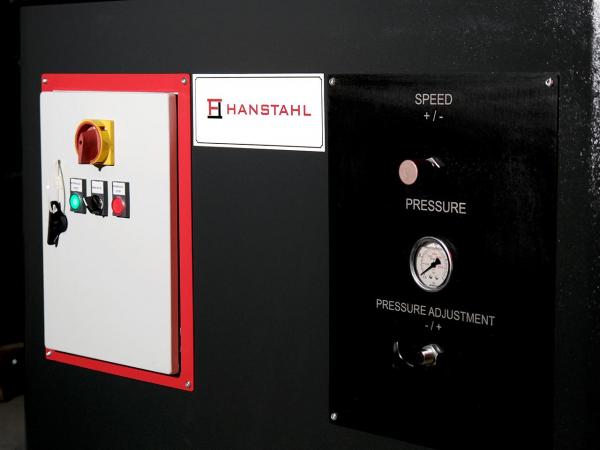

- Mobile Control Unit
- Digitally adjustable forward-backward distance position
- Adjustable working pressure
- Corresponds to CE Standards
- High strength body
- Adjustable Backgauge
- Quick Mold Connection System
- Mobile Control Unit
- Digitally adjustable forward-backward distance position
- Adjustable working pressure
- Corresponds to CE Standards
- High strength body
- Adjustable Backgauge
- Quick Mold Connection System
Technical data Hanstahl P100 HYDRAULIC HORIZONTAL PRESS:
Unit: P100Max Pressure At 200 Bars: ton 100
Oil Tank Capacity: lt 120
Bending Capacity Flat Material: mm 300×30
Bending Capacity Round Tubes: mm 114×10
Max Stroke: mm 290
Diameter Of Bolts: mm 105
Height Of Toolings: mm 300
Working Speed: mm/sec 10
Return Speed: mm/sec 10
Motor Power: kw 11
Net Weight: kg 1700
Size Of The Table (LxW): mm 800×1500
Working Height: mm 935
Length Of The Machine: mm 1600
Width Of The Machine: mm 850
Height Of The Machine: mm 1700
Size Of Packing (WxLxH): mm 950x1700x1800
