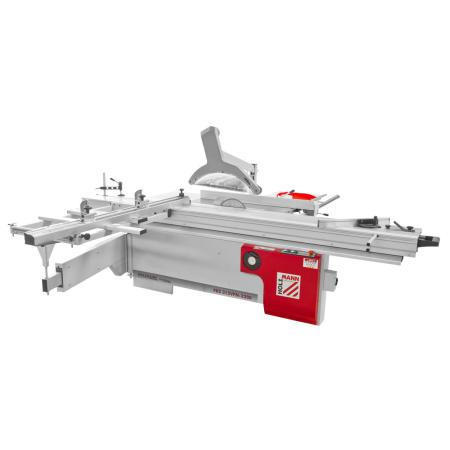

FKS315VFN3200400V Holzmann sliding table saw

Product highlights FKS315VFN3200400V Holzmann sliding table saw

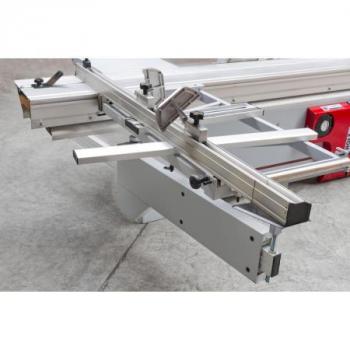

• with large professional aluminium format sliding table and extension arm ideal for processing large workpieces and cutting large, heavy panels
• Parallelogram suction device with pan and wide suction bonnet, can be swung away
• including scorer with own motor
• Central control panel at the front of the machine
• Smooth and precise saw blade height and angle adjustment by handwheel
• analogue angle display for reading the saw blade inclination
• two cutting speeds on the main circular saw blade as standard
• very high-quality and stable machine body
• Table widening and extension enables comfortable working
• smooth-running aluminium sliding table with hardened steel guide rods and double rod guide
• high dead weight enables precise machining of heavy workpieces
• stable parallel stop with fine adjustment
• extendable and robust telescopic fence on the jib with 2 tilt stops
• Please note that this machine is only available with the suction bonnet shown in the picture! There are other pictures of this machine in circulation, but they do not correspond to the current scope of delivery.

Technical data FKS315VFN3200400V Holzmann sliding table saw​

• Motor power S6 in W: 7700
• voltage: 400V / 3 / 50 Hz

• Suction connection in mm: Ø 100
• Format sliding table in mm: 3200x405
• Gross weight in kg: 720

• max. cutting length 90° in mm: 3200
• max. cutting height 90° in mm: 80
• max. cutting height 45° in mm: 55
• Cutting width at rip fence in mm: 1150

• Saw blade (/hole) in mm: 315 / 30
• Scoring saw blade in mm: 120 / 20
• Saw blade speed in min-1: 4500 / 5500
• scoring saw blade speed in min-1: 8000
• Scorer motor power in W: 750
• Saw blade tilting range: 45°.
