FKS315V1200400V Holzmann sliding table saw

Product highlights FKS315V1200400V Holzmann sliding table saw​

• with aluminium format sliding table and extension table ideal for the processing of workpieces and the cutting of panels
• including scorer with own motor
• Central control console at the press
• Smooth and precise saw blade height and angle adjustment by handwheel
• analogue angle display for reading the saw blade inclination
• very high-quality and stable machine body
• Table widening and extension enables comfortable working
• smooth-running aluminium sliding table

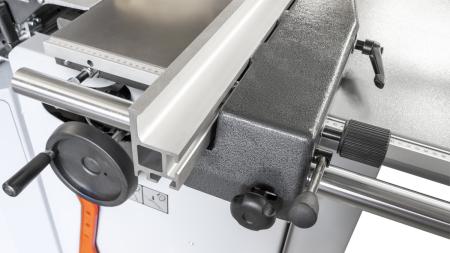

• stable rip fence with fine adjustment
• extendable and robust telescopic fence on the jib with 2 tilt stops

Scope of delivery FKS315V1200400V Holzmann sliding table saw​

• Saw blade (ø 315mm);
• scoring saw blade (ø120mm)

Technical data FKS315V1200400V Holzmann sliding table saw​

• Motor power S1 in W: 3000
• voltage: 400V / 3 / 50Hz

• Table size in mm: 955x400
• Table height in mm: 900
• Table extension in mm: 810x660
• Format sliding table in mm: 1200x360
• Gross weight in kg: 449

• max. cutting height 90° in mm: 100
• max. cutting height 45° in mm: 70
• Cutting width at rip fence in mm: 990

• Saw blade (/hole) in mm: 250-315 (/30)
• Saw blade speed in min-1: 4300
• Scoring saw blade in mm: 120 (/20)
• scoring saw blade speed in min-1: 8530
• Saw blade tilting range: 0-45°.
• Scorer motor power in W: 750

• Sound power level in dB(A): 100
• Sound pressure level in dB(A): 85.7
