ELMAG SEDSS 60WDE - Stage 3A with generator IVECO diesel engine NEF45SM1F
Product Highlights ELMAG SEDSS 60WDE - Stage 3A with generator IVECO diesel engine NEF45SM1F

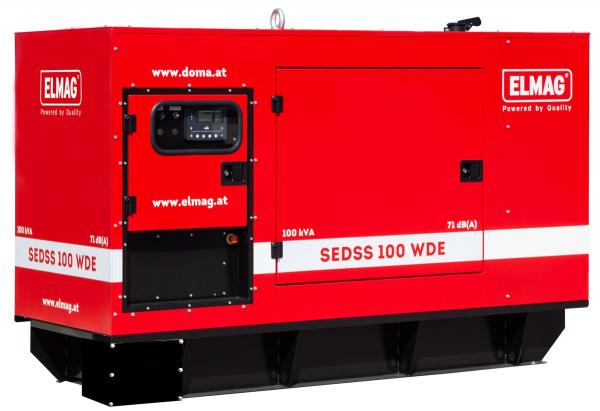

POWER GENERATOR SEDSS 60 TO 250 KVA - HIGH POWER
Power generators of the SEDSS series are the perfect choice for stationary emergency power applications, but they are also ideally suited as stationary and mobile power supply systems.
Even in the basic version, all the important features are already on board, thus enabling versatile use. A large number of options and special equipment make the units into a complete system that is precisely tailored to your requirements.
Even in the basic version, all the important features are already on board, thus enabling versatile use. A large number of options and special equipment make the units into a complete system that is precisely tailored to your requirements.
Standard equipment ELMAG SEDSS 60WDE - Stage 3A with generator IVECO diesel engine NEF45SM1F
- Direct power output
- 12V electric start
- Shut down: emergency stop, magneto stop, low oil pressure, over temperature, low coolant level, low fuel level, overload and short circuit.
- Generator type: LEROY SOMER 42.3L9
- AVR regulation
- Protection class IP 23
- DSE7320
- 5 dig. Inputs
- 5 potential-free outputs
- Connection preparation for TS-Kit
- Remote start connection
- Tank with drip tray
- Leakage sensor
- Diesel pump (membrane)
- Diesel pump (manual)
- Oil drain pump
- Water separator
- Transport safety
- Sound insulation SS
- Lifting eye
- 12V electric start
- Shut down: emergency stop, magneto stop, low oil pressure, over temperature, low coolant level, low fuel level, overload and short circuit.
- Generator type: LEROY SOMER 42.3L9
- AVR regulation
- Protection class IP 23
- DSE7320
- 5 dig. Inputs
- 5 potential-free outputs
- Connection preparation for TS-Kit
- Remote start connection
- Tank with drip tray
- Leakage sensor
- Diesel pump (membrane)
- Diesel pump (manual)
- Oil drain pump
- Water separator
- Transport safety
- Sound insulation SS
- Lifting eye
Technical facts ELMAG SEDSS 60WDE - Stage 3A with generator IVECO diesel engine NEF45SM1F
- Super-sound-insulated housing for stationary and mobile continuous use - Sound level only 64 dB(A) per 7 m
- Water-cooled IVECO diesel engines for long running times
- Robust Zincor housing (galvanised) - powder-coated
- Large lockable maintenance doors
- Synchronous generator and AVR control as standard
- Freely programmable inputs/outputs (partly potential-free), at least 5 each

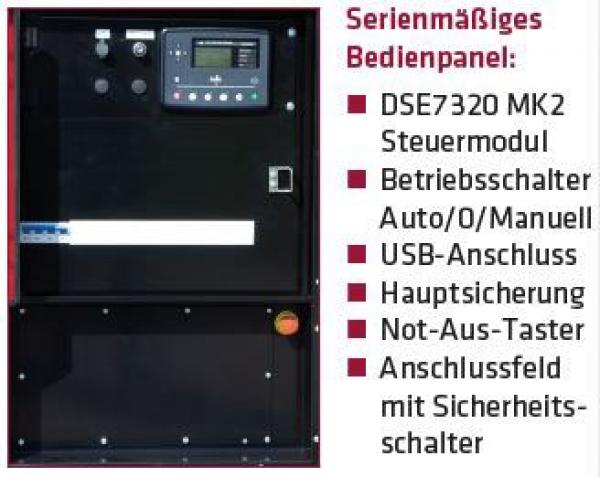

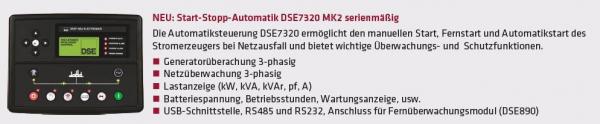

- Automatic control panel DSE 7320 for manual operation, automatic emergency power supply and remote start operation
- Remote start input
- Internal tank with drip tray and leakage sensor
- Central lifting eye for crane transport
- External emergency stop switch
- Oil drain pump
- Maintenance-free start battery
- Tank level indicator readable via control panel
- Thermal-magnetic circuit breaker with release module
- Power output via terminal board with cover for cable entry
- Engines according to exhaust emission standard Stage 3A (Stage 5 in preparation)
Technical data ELMAG SEDSS 60WDE - Stage 3A with generator IVECO diesel engine NEF45SM1F
voltage - frequency
400/230 Volt - 50 Hz
Maximum power 3~400V
66 kVA
Continuous power 3~400V
60 kVA
Power 3~400V cont.
86 A
Maximum power 1~230V
22 kVA
Continuous power 1~230V
20 kVA
Power 1~230V cont.
86 A
Fuel type
Diesel
Speed
1500 rpm
Cooling
water-cooled
Engine type
Iveco NEF45SM1F FPT
Emission standard
3A
Engine power
54,5 kW
Cubic capacity
4.500 cm³
Cylinders
4
Tank capacity
200 l
Consumption at 75% load
12,5 l/h
Running time per tank filling at 75% load
16,0 h
Dimensions LxWxH
285x114x190 cm
Weight (without fuel)
1.433 kg
Sound power according to RL 2000/14/EG, 2005/88/EG
89 LWA
Sound pressure level in 7m
64 dB(A)
