Main page » Manufacturer » ELMAG » ELMAG SEDSS 30WE-AVR-DSE4520 - Stage 3A generator with KUBOTA motor V3800-DIT (super sound insulated)
ELMAG SEDSS 30WE-AVR-DSE4520 - Stage 3A generator with KUBOTA motor V3800-DIT (super sound insulated)
Product Highlights ELMAG SEDSS 30WE-AVR-DSE4520 - Stage 3A generator with KUBOTA motor V3800-DIT (super sound insulated)
SERIES SEDSS 230 VOLT WATER-COOLED - CONTROLLED SLOW RUNNING
SEDSS generators with low-speed diesel engines offer the highest
Power quality, extra long running times, highest technical safety and a long service life. They are excellently suited for maintaining the function of process and life-support systems. Perfectly suited as emergency power systems.
All SEDSS models are equipped with an AVR control system and enable trouble-free operation of voltage-sensitive computer, control, telecommunications and energy storage systems. Individual models come with electronic speed control for maximum speed and frequency stability.
Power quality, extra long running times, highest technical safety and a long service life. They are excellently suited for maintaining the function of process and life-support systems. Perfectly suited as emergency power systems.
All SEDSS models are equipped with an AVR control system and enable trouble-free operation of voltage-sensitive computer, control, telecommunications and energy storage systems. Individual models come with electronic speed control for maximum speed and frequency stability.
-
SEDSS 30WE - POWER+MODELS
Top design, cool and slow drive, AVR, only 65 dB(A), RCD and ground spike - a 230 Volt top model for private and commercial use.
Standard equipment ELMAG SEDSS 30WE-AVR-DSE4520 - Stage 3A generator with KUBOTA motor V3800-DIT (super sound insulated)
- connections: 2x 230 V Schuko 16A, 1x 230 V CEE 16A-3p, 2x 230 V CEE 32A-3p and 1x 230 V CEE 63A-3p
- Electric start
- Battery
- Shutdown: magneto stop, emergency stop, low oil pressure, overtemperature, overload, short circuit, FI 30 mA-30A reg. and earth spike
- Synchronous generator
- AVR regulation
- Protection class IP 23
- DSE4520
- Speed controller
- Tank level sensor
- Tight base tray
- Diesel pump 12 V
- Connection preparation for TS-Kit
- Remote start connection
- Oil drain pump
- Water separator
- Sound insulation SS
- Lifting eye
- Electric start
- Battery
- Shutdown: magneto stop, emergency stop, low oil pressure, overtemperature, overload, short circuit, FI 30 mA-30A reg. and earth spike
- Synchronous generator
- AVR regulation
- Protection class IP 23
- DSE4520
- Speed controller
- Tank level sensor
- Tight base tray
- Diesel pump 12 V
- Connection preparation for TS-Kit
- Remote start connection
- Oil drain pump
- Water separator
- Sound insulation SS
- Lifting eye
Technical facts ELMAG SEDSS 30WE-AVR-DSE4520 - Stage 3A generator with KUBOTA motor V3800-DIT (super sound insulated)
- Extra powerful - original Kubota four-stroke diesel engine with water cooling
- Space-saving - large fuel tank in the base frame
- Synchronous generator with AVR control, voltage difference max. ±1%.
- Easy handling - electric start system with maintenance-free starter battery
- Magneto-Stop system for automatic start-stop
- Thermal-magnetic circuit breaker with switch-off on overload/short circuit
- Automatic switch-off in case of overtemperature and low oil pressure
- Residual current circuit breaker and ground spike

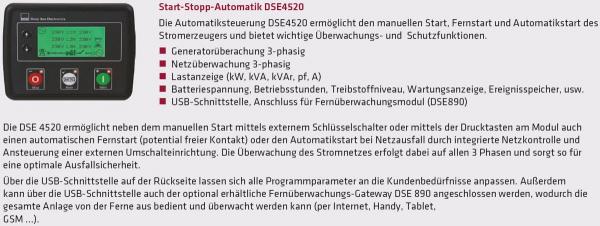

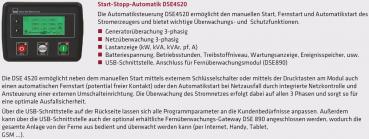

- With DSE 4520 control module for automatic operation
Technical data ELMAG SEDSS 30WE-AVR-DSE4520 - Stage 3A generator with KUBOTA motor V3800-DIT (super sound insulated)
voltage - frequency
230 Volt - 50 Hz
Maximum power 3~400V
- kVA
Continuous power 3~400V
- kVA
Power 3~400V cont.
- A
Maximum power 1~230V
30 kVA
Continuous power 1~230V
28 kVA
Power 1~230V cont.
122 A
Fuel type
Diesel
Speed
1500 rpm
Cooling
water-cooled
Motortype
Kubota V3800DIT
Emission standard
3A
Engine power
42 kW
Cubic capacity
3769 cm³
Cylinders
4
Tank capacity
90 l
Consumption at 75% load
7,7 l/h
Running time per tank filling at 75% load
11,7 h
Dimensions LxWxH
210x94x112 cm
Weight (without fuel)
970 kg
Sound power according to RL 2000/14/EG, 2005/88/EG
90 LWA
Sound pressure level in 7m
65 dB(A)
Highest quality of ELMAG machines
Benefit from a 2-year guarantee from ELMAG
Accessories for ELMAG machines on request
