Main page » Manufacturer » ELMAG » ELMAG SEDSS 163WE-DSE4520 - Stage 3A power generator with KUBOTA motor D1105 (super sound insulated)
ELMAG SEDSS 163WE-DSE4520 - Stage 3A power generator with KUBOTA motor D1105 (super sound insulated)
Product Highlights ELMAG SEDSS 163WE-DSE4520 - Stage 3A generator with KUBOTA motor D1105 (super sound insulated)
SERIES SEDSS 230 VOLT WATER-COOLED - QUIET & ECONOMICAL
Low consumption and noise levels, long running time and service life - the water-cooled SEDSS models are among the most successful diesel units. They secure the infrastructure of public buildings, commercial and agricultural operations, supply remote objects such as alpine pastures and ski huts and accompany service teams, construction and auxiliary teams - the "right" electricity is always with you. The SEDSS models have also proven themselves as emergency power systems for private buildings. SEDSS models are equipped with an earthed socket and three three-pole CEE connections.
-
SEDSS 163WE - 230 VOLT
Ideal for mobile service, installation and maintenance teams, excellent equipment with FI 30 mA, ground spike and lifting lug.
Standard equipment ELMAG SEDSS 163WE-DSE4520 - Stage 3A power generator with KUBOTA motor D1105 (super sound insulated)
- connections: 1x 230 V Schuko 16A, 1x 230 V CEE 16A-3p, 1x 230 V CEE 32A-3p and 1x 230 V CEE 63A-3p
- Electric start
- Battery
- Shutdown: magneto stop, emergency stop, low oil pressure, overtemperature, overload, short circuit, FI 30 mA and earth spike
- Synchronous generator
- Condenser control
- Protection class IP 23

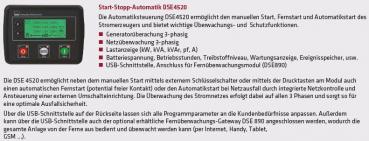

- DSE 4520
- Tank level sensor
- Tight base tray
- Connection preparation for TS-Kit
- Remote start connection
- Diesel pump 12 V
- Oil drain pump
- Sound insulation SS
- Lifting eye
- Electric start
- Battery
- Shutdown: magneto stop, emergency stop, low oil pressure, overtemperature, overload, short circuit, FI 30 mA and earth spike
- Synchronous generator
- Condenser control
- Protection class IP 23
- DSE 4520
- Tank level sensor
- Tight base tray
- Connection preparation for TS-Kit
- Remote start connection
- Diesel pump 12 V
- Oil drain pump
- Sound insulation SS
- Lifting eye
Technical facts ELMAG SEDSS 163WE-DSE4520 - Stage 3A generator with KUBOTA motor D1105 (super sound insulated)
- Extra powerful - original Kubota four-stroke diesel engine
- Durable - drive with water cooling, large dimensioned cooling system
- Space-saving - large fuel tank in the base frame
- Synchronous generator with capacitor control, voltage difference max. ±1%.
- Magneto-Stop system for automatic start-stop
- Thermal-magnetic circuit breaker with switch-off on overload/short circuit
- residual current circuit breaker FI 30 mA and earth spike
- Automatic switch-off in case of overtemperature and low oil pressure
- Tight base tray (leakage protection)
- Tank level sensor with content display on DSE 4520
- Preparation for connection of TS-Kit (automatic mains switch-over) and remote start
Technical data ELMAG SEDSS 163WE-DSE4520 - Stage 3A generator with KUBOTA motor D1105 (super sound insulated)
voltage - frequency
230 Volt - 50 Hz
Maximum power 3~400V
- kVA
Continuous power 3~400V
- kVA
Power 3~400V cont.
- A
Maximum power 1~230V
14,5 kVA
Continuous power 1~230V
13,2 kVA
Power 1~230V cont.
57 A
Fuel type
Diesel
Speed
3000 rpm
Cooling
water-cooled
Motortype
Kubota D1105
Emission standard
3A
Engine power
19 kW
Cubic capacity
1123 cm³
Cylinders
3
Tank capacity
63 l
Consumption at 75% load
3,9 l/h
Running time per tank filling at 75% load
16,2 h
Dimensions LxWxH
150x64x90 cm
Weight (without fuel)
455 kg
Sound power according to RL 2000/14/EG, 2005/88/EG
93 LWA
Sound pressure level in 7m
68 dB(A)
Highest quality of ELMAG machines
Benefit from a 2-year guarantee from ELMAG
Accessories for ELMAG machines on request
