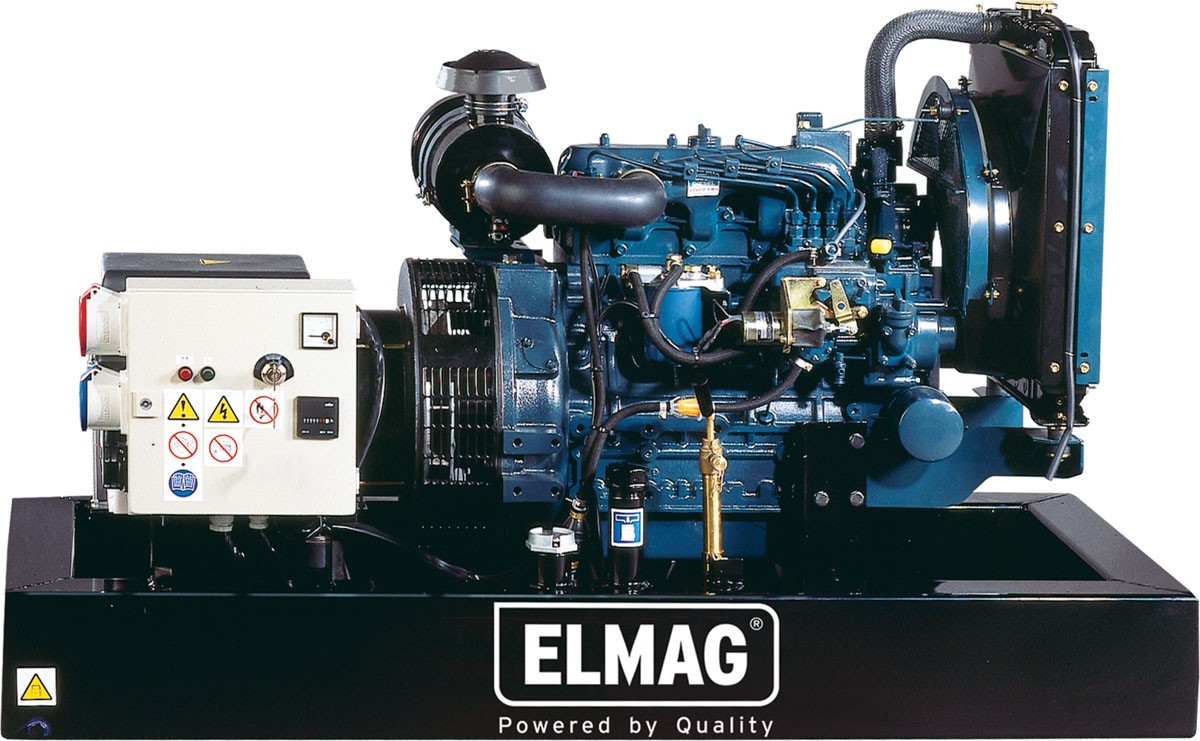

ELMAG SED 9WDE Generator with KUBOTA engine D1105
Product Highlights ELMAG SED 9WDE Generator with KUBOTA engine D1105
SERIES SED 230 & 400 VOLT WATER-COOLED - AVR-REGULATED LOW SPEED
SED generators with slow drive system are called slow runners because they have synchronous generators with four generator poles and run at 1,500 rpm motor speed. They are therefore low-wear, particularly durable and the right choice for intensive use of the generator. Ideally, the open models are installed in a generator room, energy container or in a Utility vehicle installed.
Models with electronic speed control and AVR regulation offer maximum speed, frequency and voltage stability and are an ideal supply solution for process or life-support systems with high power.
Models with electronic speed control and AVR regulation offer maximum speed, frequency and voltage stability and are an ideal supply solution for process or life-support systems with high power.
-
SED 9WDE - TOP-SELLER
400/230 Volt universal unit for construction and assembly crews and for central power and emergency power supply, thanks to AVR also for computers, controls etc.
Standard equipment ELMAG SED 9WDE generator with KUBOTA motor D1105
- connections: 2x 230 V Schuko 16A and 1x 400 V CEE 16A-5p
- Electric start
- Battery
- Shutdown: magneto stop, emergency stop, low oil pressure, overtemperature, overload, short circuit, FI 30 mA and earth spike
- Synchronous generator
- AVR regulation
- Protection class IP 23
- Voltmeter
- Hour meter
- Mechanical fuel gauge
- Basic frame tank
- Diesel pump 12 V
- Oil drain pump
- Electric start
- Battery
- Shutdown: magneto stop, emergency stop, low oil pressure, overtemperature, overload, short circuit, FI 30 mA and earth spike
- Synchronous generator
- AVR regulation
- Protection class IP 23
- Voltmeter
- Hour meter
- Mechanical fuel gauge
- Basic frame tank
- Diesel pump 12 V
- Oil drain pump
Technical facts ELMAG SED 9WDE Generator with KUBOTA engine D1105
- Extra powerful - original Kubota four-stroke diesel engine with water cooling
- Space-saving - large fuel tank in the base frame

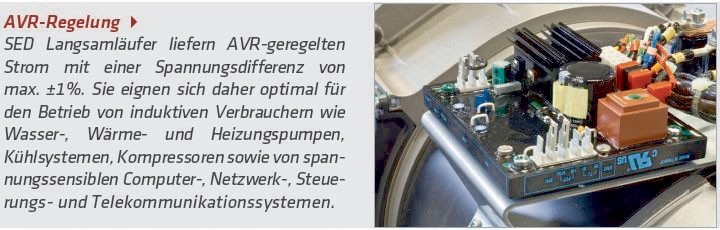

- Synchronous generator with AVR control, voltage difference max. ±1%.
- Easy handling - electric start system with maintenance-free starter battery
- Magneto-Stop System
- Thermal-magnetic circuit breaker with switch-off on overload/short circuit
- residual current circuit breaker FI 30 mA and earth spike
- Automatic switch-off in case of overtemperature and low oil pressure
Technical data ELMAG SED 9WDE Generator with KUBOTA motor D1105
voltage - frequency
400/230 Volt - 50 Hz
Maximum power 3~400V
9 kVA
Continuous power 3~400V
8,5 kVA
Power 3~400V cont.
12,3 A
Maximum power 1~230V
3 kVA
Continuous power 1~230V
2,7 kVA
Power 1~230V cont.
12,2 A
Fuel type
Diesel
Speed
1500 rpm
Cooling
water-cooled
Engine type
Kubota D1105
Emission standard
-
Engine power
10,3 kW
Cubic capacity
1123 cm³
Cylinders
3
Tank capacity
55 l
Consumption at 75% load
1,9 l/h
Running time per tank filling at 75% load
28,9 h
Dimensions LxWxH
130x64x86 cm
Weight (without fuel)
320 kg
Sound power according to RL 2000/14/EG, 2005/88/EG
95 LWA
Sound pressure level in 7m
70 dB(A)
Highest quality of ELMAG machines
Benefit from a 2-year guarantee from ELMAG
Accessories for ELMAG machines on request
