ELMAG SED 73WE Generator with KUBOTA engine Z482

Product No.:
53454
on request on request (abroad may vary)
  • Spare parts supply
  • Top quality
  • Happy customers
  • Secure payment
  • Authorized dealers

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
190 kg per piece
Price on request
Ask about product
Description

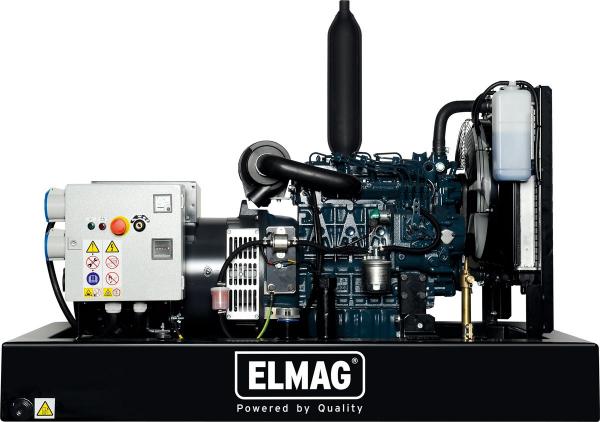

Product highlights ELMAG SED 73WE power generator with KUBOTA engine Z482​

  • SERIES SED 230 VOLT WATER-COOLED - STATIONARY POWER PLANTS

    The open SED power generators are installed in generator rooms, energy containers or utility vehicles. They serve as reliable construction site power generators or emergency power generators and supply events, tent festivals and open-air events. Their water-cooled 3000 rpm diesel engine combines long service life and high efficiency. Models with AVR control are recommended for supplying computer, telecommunications and energy storage systems.

  • SED 73WE - DURATION POWER

    Long running times and low consumption characterise the open 230 volt sets. Equipped as standard with residual current circuit breaker and ground spike.

Standard equipment ELMAG SED 73WE power generator with KUBOTA motor Z482​

- connections: 1x 230 V Schuko 16A and 1x 230 V CEE 32A-3p
- Electric start
- Battery
- Shutdown: Magneto-Stop, low oil pressure, overtemperature, overload, short circuit, FI 30 mA and earth spike
- Synchronous generator
- Condenser control
- Protection class IP 23
- Voltmeter
- Hour meter
- Mechanical fuel gauge
- Basic frame tank
- Diesel pump 12 V
- Oil drain pump

Technical facts ELMAG SED 73WE power generator with KUBOTA engine Z482​

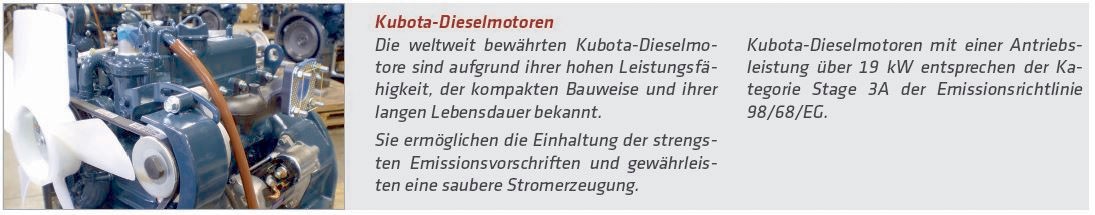

  • Extra powerful - original Kubota four-stroke diesel engine
  • Durable - drive with water cooling, large dimensioned cooling system
  • Space-saving - large fuel tank in the base frame
  • Synchronous generator with capacitor control, voltage difference max. ±1%.
  • Easy handling - electric start system with maintenance-free starter battery
  • Magneto-Stop System
  • Thermal-magnetic circuit breaker with switch-off on overload/short circuit
  • residual current circuit breaker FI 30 mA and earth spike
  • Automatic switch-off in case of overtemperature and low oil pressure
  • 1) Sound level does not comply with Directives 2000/14/EC, 2005/88/EC​

Technical data ELMAG SED 73WE power generator with KUBOTA motor Z482​

voltage - frequency
230 Volt - 50 Hz
Maximum power 3~400V
- kVA
Continuous power 3~400V
- kVA
Power 3~400V cont.
- A
Maximum power 1~230V
7 kVA
Continuous power 1~230V
6 kVA
Power 1~230V cont.
26 A
Fuel type
Diesel
Speed
3000 rpm
Cooling
water-cooled
Engine type
Kubota Z482
Emission standard
-
Engine power
8,3 kW
Cubic capacity
479 cm³
Cylinders
2
Tank capacity
47 l
Consumption at 75% load
1,8 l/h
Running time per tank filling at 75% load
26,1 h
Dimensions LxWxH
105x64x79 cm
Weight (without fuel)
190 kg
Sound pressure level in 7m
78¹ dB(A)

Highest quality of ELMAG machines
Benefit from a 2-year guarantee from ELMAG

Accessories for ELMAG machines on request
