ELMAG SED 113WDE power generator with KUBOTA engine D722
ELMAG SED 113WDE Stromerzeuger mit KUBOTA-Motor D722
ELMAG SED 113WDE Stromerzeuger mit KUBOTA-Motor D722
ELMAG SED 113WDE Stromerzeuger mit KUBOTA-Motor D722
Mobile Preview: ELMAG SED 113WDE Stromerzeuger mit KUBOTA-Motor D722
Mobile Preview: ELMAG SED 113WDE Stromerzeuger mit KUBOTA-Motor D722
Mobile Preview: ELMAG SED 113WDE Stromerzeuger mit KUBOTA-Motor D722

ELMAG SED 113WDE power generator with KUBOTA engine D722

Product No.:
53457
on request on request (abroad may vary)
  • Spare parts supply
  • Top quality
  • Happy customers
  • Secure payment
  • Authorized dealers

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
260 kg per piece
Price on request
Ask about product
Description

Product Highlights ELMAG SED 113WDE Generator with KUBOTA engine D722​

  • SERIES SED 230 & 400 VOLT WATER-COOLED - STATIONARY POWER PLANTS

    The open SED power generators are installed in generator rooms, energy containers or utility vehicles. They serve as reliable construction site power generators or emergency power generators and supply events, tent festivals and open-air events. Their water-cooled 3000 rpm diesel engine combines long service life and high efficiency. Models with AVR control are recommended for supplying computer, telecommunications and energy storage systems.

  • SED 113WDE - ALLROUNDER

    The universal 400/230 Volt sets turn heavy electric motors, water pumps, cooling systems, ventilation, milking, feeding systems, freight lifts etc.

Standard equipment ELMAG SED 113WDE generator with KUBOTA motor D722

- connections: 2x 230 V Schuko 16A and 1x 230 V CEE 16A-5p
- Electric start
- Battery
- Shutdown: Magneto-Stop, low oil pressure, overtemperature, overload, short circuit, FI 30 mA and earth spike
- Synchronous generator
- Compound control
- Protection class IP 23
- Voltmeter
- Hour meter
- Mechanical fuel gauge
- Basic frame tank
- Diesel pump 12 V
- Oil drain pump

Technical facts ELMAG SED 113WDE Generator with KUBOTA engine D722​

  • Extra powerful - original Kubota four-stroke diesel engine
  • Durable - drive with water cooling, large dimensioned cooling system
  • Space-saving - large fuel tank in the base frame
  • Synchronous generator with compound control, voltage difference max. ±1%.
  • Easy handling - electric start system with maintenance-free starter battery
  • Magneto-Stop System
  • Thermal-magnetic circuit breaker with switch-off on overload/short circuit
  • residual current circuit breaker FI 30 mA and earth spike
  • Automatic switch-off in case of overtemperature and low oil pressure
  • 1) Sound level does not comply with Directives 2000/14/EC, 2005/88/EC​

Technical data ELMAG SED 113WDE Generator with KUBOTA motor D722​

voltage - frequency
400/230 Volt - 50 Hz
Maximum power 3~400V
11 kVA
Continuous power 3~400V
10 kVA
Power 3~400V cont.
14,4 A
Maximum power 1~230V
3,8 kVA
Continuous power 1~230V
3,4 kVA
Power 1~230V cont.
14,4 A
Fuel type
Diesel
Speed
3000 rpm
Cooling
water-cooled
Engine type

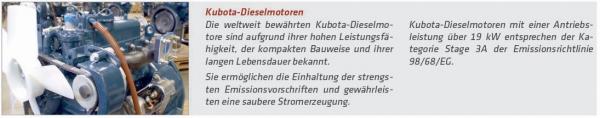

Kubota D722
Emission standard
-
Engine power
12 kW
Cubic capacity
719 cm³
Cylinders
3
Tank capacity
50 l
Consumption at 75% load
2,5 l/h
Running time per tank filling at 75% load
20 h
Dimensions LxWxH
115x64x83 cm
Weight (without fuel)
260 kg
Sound pressure level in 7m
80¹ dB(A)

Highest quality of ELMAG machines
Benefit from a 2-year guarantee from ELMAG

Accessories for ELMAG machines on request
