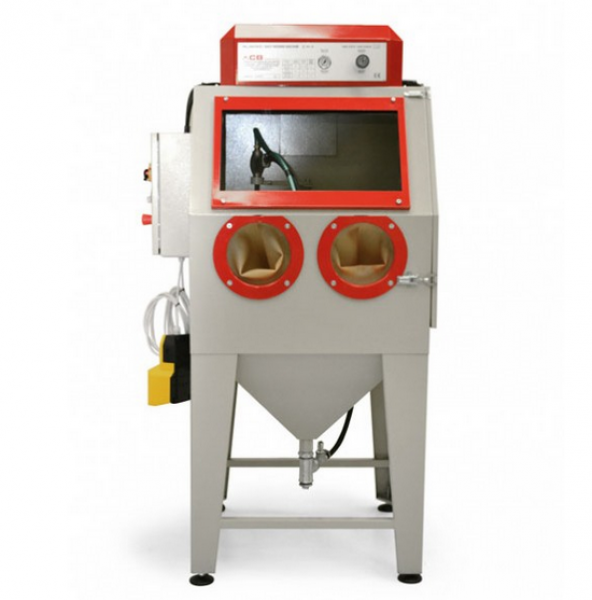

Product Highlights ELMAG Sandblasting Cabinet PAL-1S

Affordable entry-level device with professional features
With a maximum workpiece size of approx. 30 x 50 x 40 cm, the PAL 1S granulate blasting machine is an ideal solution for small parts cleaning and surface decoration.

Equipment
Equipped like the large PAL models with suction fan and dust filter bag, but without cyclone cutter (therefore no abrasive circuit as with PAL 2N, 3L, 4XL).

Technical facts ELMAG Sandblasting Cabinet PAL-1S

Max. Workpiece size approx. 30 x 50 x 40 cm
With compressed air injector nozzle P/3
With heavy-duty tungsten carbide jet nozzle P/4
Safety foot pedal (start-stop)
Extraction fan
Dust filter bag
P/3 Injector Ø 3 mm: 600 l/min air requirement
- P/3 injector Ø 3.5 mm: 800 l/min air requirement
- P/3 injector Ø 4 mm: 1,200 l/min air requirement
P/4 Nozzle Ø: 6 / 8 / 10 mm

Technical data ELMAG Sandblasting Cabinet PAL-1S

working pressure	1,5 - 8 bar
Air requirement injector nozzle P/3 Ø 3 mm	600 l/min
Air requirement injector nozzle P/3 Ø 3,5 mm	800 l/min
Air requirement injector nozzle P/3 Ø 4 mm	1200 l/min
Jet nozzles P/4 Ø	6/8/10 mm
Voltage/frequency	400/50 V/Hz
cabin space	60x72x70 cm
dimensions	920x960x1820 mm
weight	80 kg
