ELMAG PROFI TIG AC-DC WELDING INVERTER 'PFC' TIG SOUND AC-DC 2240/M - PLUG & PLAY SET

Product Highlights ELMAG PROFI TIG AC-DC WELDING INVERTER 'PFC' TIG SOUND AC-DC 2240/M - PLUG & PLAY SET

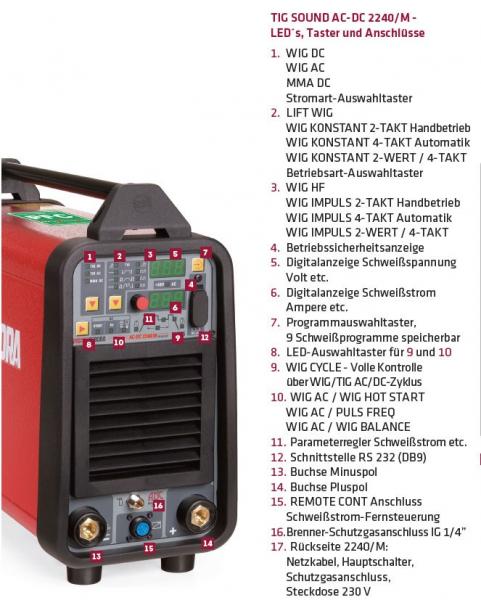

TIG SOUND AC-DC 2240/M

With welding currents from 5 to 220 amperes, the TIG SOUND
AC-DC 2240/M enables the precise processing of smallest weld pools and the powerful welding of thick cross-sections. A universal unit with direct and alternating current for all weldable metals.

TIG SOUND AC-DC 2240/M PLUG & PLAY SET WELDING FREE

- TIG SOUND AC-DC 1531/M: TIG & E-hand inverter welder, portable, loose
- TIG hose package SR 26 HF: 4 m package length with control pushbutton, welding cable plug Ø 13 mm, 35/50 mm²
- Earth cable: 3 m with earth clamp, plug Ø 13 mm, 35/50 mm²
- Pressure regulator: Argon/CO2, with 2 manometers Ø 63 mm
- Steel cylinder filled: 20 litres argon 4.6
- Automatic head welding shield: MultiSafeVario XXL 'art
- Operating instructions

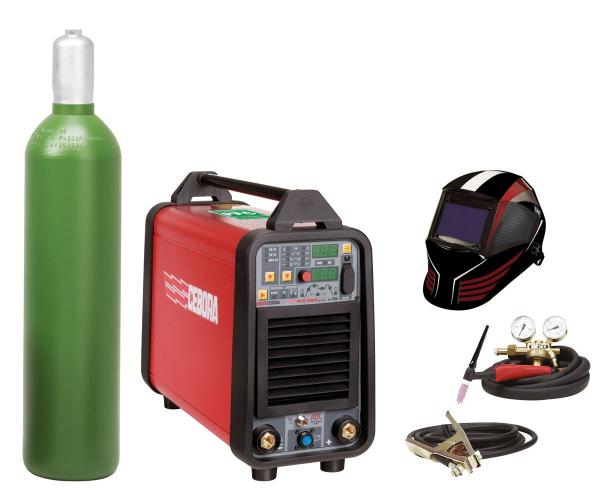

ELMAG PROFI TIG AC-DC WELDING INVERTER 'PFC' TIG SOUND AC-DC 2240/M - PLUG & PLAY SET CONSISTING OF:

INCL. 20 LT. ARGON STEEL BOTTLE
1 PC. WELDING INV. 2240/M AC/D ART.-NO.: 55904
1 PC. TIG HOSE P. SR 26/4M ART.NO.: 55920
1 PC. PRESSURE REDUCER F. STEEL FL. ART.NO.: 54122
1 PC. EARTH CABLE COMPLETE 35QMM, 3M, PLUG 35/50 ITEM NO.: 55283
1 PC. MULTISAFEVARIO 'PREMIUM' ART.-NO.: 58390
1 PC. STEEL CYLINDER ARGON
20L / 200BAR, FILLED WITH 1006 ARGON, COMPRESSED, CLASS 2, ADR *CARRIAGE WITHOUT EXCEEDING THE EXEMPTION LIMITS SPECIFIED IN SUBSECTION 1.1.3.6, ART.-NO. 54242

APPLY NOW FOR UP TO 24 MONTHS WARRANTY!
SIMPLY REGISTER UP TO 15 DAYS AFTER DATE OF PURCHASE AT HTTPS://WWW.CEBORA.IT/GARANZIE/FRONTEND/.

Application examples ELMAG PROFI TIG AC-DC WELDING INVERTER 'PFC' TIG SOUND AC-DC 2240/M - PLUG & PLAY-SET:

Production, repair & assembly companies
Pipeline & pipeline construction
Metal, railing construction
Machine, plant & tank construction
Service & customer service

materials:
Steel
CrNi
Copper
Aluminium

Technical facts ELMAG PROFI TIG AC-DC WELDING INVERTER 'PFC' TIG SOUND AC-DC 2240/M - PLUG & PLAY SET:

Universal use - ideal for trade and industry
For high load operation (e.g. series production) expandable with water cooling unit
Energy-saving PFC technology
Welding current constant source with PFC (compliant with EN 61000-3-12)
Reduced power consumption, high mains current tolerance
Suitable for power generators (min. 8 kVA)

Technical data ELMAG PROFI TIG AC-DC WELDING INVERTER 'PFC' TIG SOUND AC-DC 2240/M - PLUG & PLAY-SET:

Welding electrode diameter TIG/MMA 1.6 mm - 4.0 mm
Welding current setting range TIG 5 - 220 A / MMA 10 - 180 A
100 % duty cycle (10 min. at 40 °C) at welding current TIG 160 A / MMA 110 A
Duty cycle (10 min at 40°C) at welding current TIG 180 A / MMA 140 A
Duty cycle (10 min at 40°C) at max. welding current TIG 40/220 %/A / MMA 30/180 %/A
Open-circuit voltage 47 V
Mains connection / phases 230 / 1 V / ~
Mains frequency 50/60 Hz
Mains current tolerance + 15 / - 20 %
Mains fuse slow-blow 16 AT
Thermal overload protection Yes
Insulation class H
Protection class (IP) 23
Power input l1 max. / l1 eff. TIG 24.5/16 A / MMA 29/16 A
Earth connection plug / cross-section 13 / 35 Ø / mm²
Connection plug Schuko 16 A
Width 207 mm
Depth 545 mm
Height 411 mm
Weight 21,5 kg

Highest quality machines from ELMAG
Benefit from a 2 year ELMAG warranty

Accessories for ELMAG machines on request
