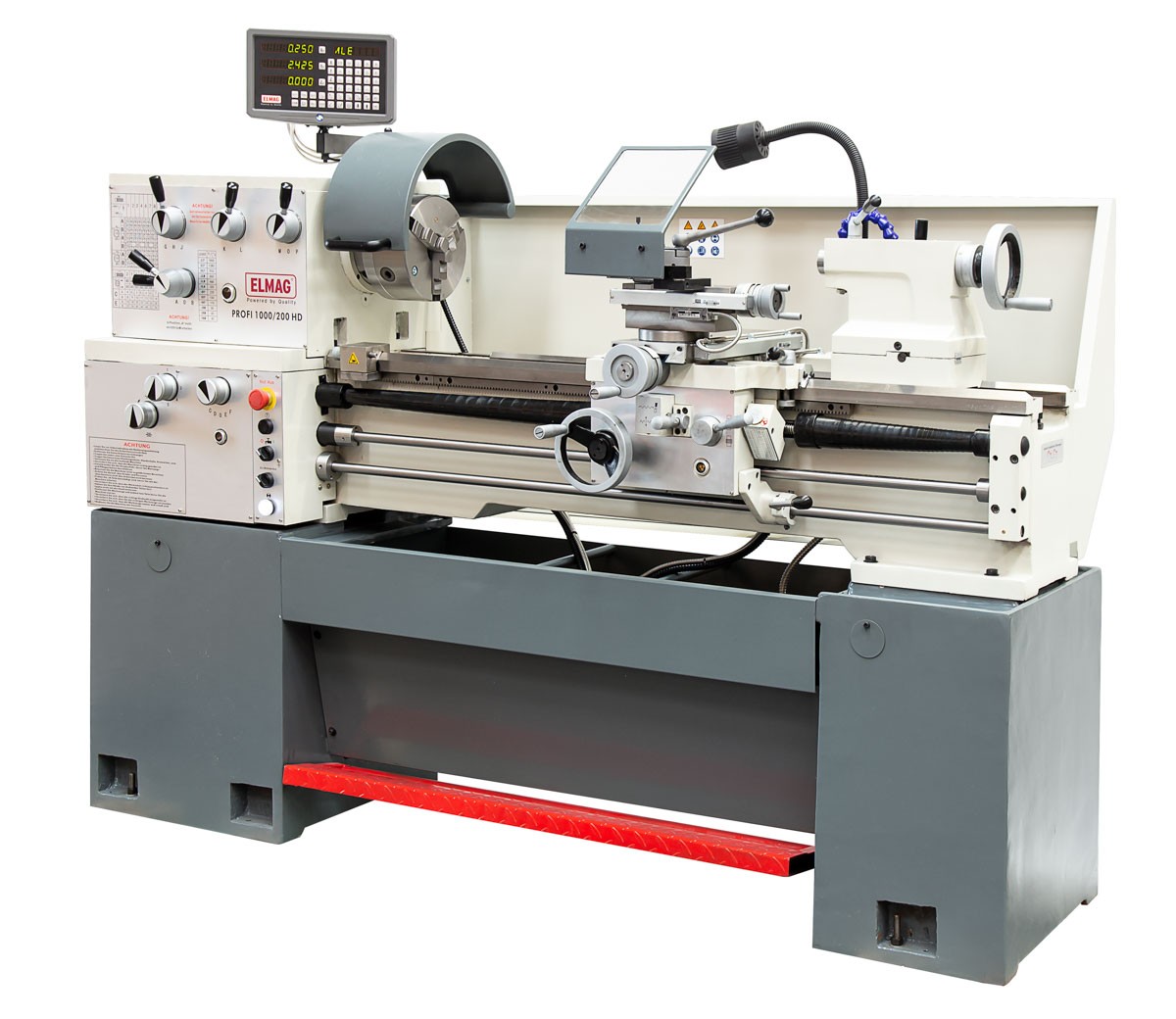

ELMAG PROFI 1000/200 HD Universal lathe

Technical facts ELMAG PROFI 1000/200 HD Universal lathe​

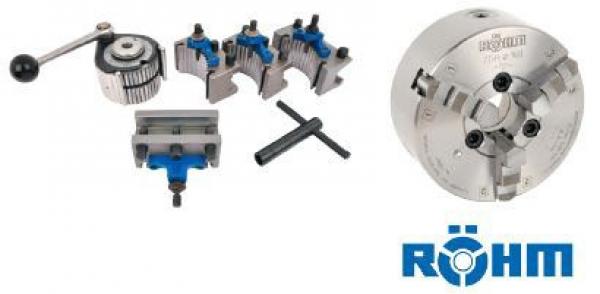

• Four-jaw face plate chuck Ø 200 mm
• Clamping disk Ø 320 mm
• 2 centring tips fixed
• Travelling centre punch MK 4
• Follow-through bezel
• Stem bezel
• Quick-change toolholder set ME
• Thread gauge and change gear set
• Halogen machine lamp
• Emergency stop button / zero voltage release
• Lathe chuck protection with safety switch
• Base frame / chip tray / splashback
• Tool set / Operating instructions / CE

Technical Data ELMAG PROFI 1000/200 HD Universal Lathe​

• centre distance 1.000 mm
• turning diameter over bed 400 mm
• Turning diameter via slide214 mm
• turning diameter without bridge570 mm
• Bridge length228 mm
• Cross slide travel235 mm
• Top slide travel125 mm
• turning tool cross section, max. 25 x 25 mm
• Lathe chuck adapter D1-6
• Spindle holder (turning spindle) MK 6
• spindle bore51 mm
• Speed 40 - 1,700 rpm
• Speed steps 12
• Longitudinal feeds (48) 0.023 - 0.347 mm/rev
• Cross feeds (48) 0.04 - 0.603 mm/rev
• Thread dimension metric (48) 0,4 - 7 mm
• metric module threads (48) 0.4 - 7 mm
• inch thread, threads G (32) 4 - 56 G/'
• inch module thread, threads G (32) 4 - 56 G/'
• lead screw pitch4 mm
• Lead screw diameter22 mm
• Quill adapter MK 4
• quill diameter50 mm
• quill travel 100 mm
• Motor power 3.000 W
• Coolant pump 40 W
• Power supply 400/50-60 V/Hz
• Length (total) 1,680 mm
• Height (total) 1,235 mm
• Weight 1.200 kg
