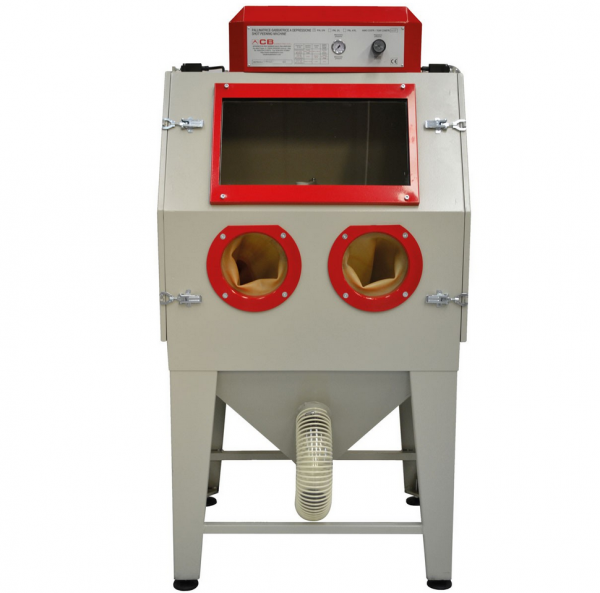

ELMAG Pressure Sandblasting Cabinet PAL-2N D 24 LT
Product Highlights ELMAG Pressure Sandblasting Cabinet PAL-2N D 24 LT:
More power in surface cleaning and finishing
Compared to injector blasting systems, PAL D pressure blasting systems have a significantly higher blasting performance. They considerably reduce process times and unit costs.
PAL sandblast cabinets Application
PAL sandblast cabinets are suitable for the use of all commercially available reusable blasting media such as blasting corundum, micro glass beads, plastic granulate etc. Reusable abrasives are recycled or recirculated.
Pressure blasting method
In the pressure blasting process, the abrasive is transported from a pressure container by means of compressed air through the pressure hose to the blasting nozzle and accelerated in a nozzle. Thanks to a higher abrasive velocity, the pressure blasting process is significantly more efficient than the injector blasting process and usually requires a larger quantity of abrasive.
Compared to injector blasting systems, PAL D pressure blasting systems have a significantly higher blasting performance. They considerably reduce process times and unit costs.
PAL sandblast cabinets Application
PAL sandblast cabinets are suitable for the use of all commercially available reusable blasting media such as blasting corundum, micro glass beads, plastic granulate etc. Reusable abrasives are recycled or recirculated.
Pressure blasting method
In the pressure blasting process, the abrasive is transported from a pressure container by means of compressed air through the pressure hose to the blasting nozzle and accelerated in a nozzle. Thanks to a higher abrasive velocity, the pressure blasting process is significantly more efficient than the injector blasting process and usually requires a larger quantity of abrasive.
Technical facts ELMAG Pressure Sandblasting Cabinet PAL-2N D 24 LT:
- With pressure reduction to adjust the abrasive speed
- Precise adjustment of the blasting effect on metals, glass, etc.
- Equally well suited for blank cleaning and surface polishing
- Professional surface finishing with shot-blasting material
- Ideal for series production thanks to blast optimisation
- Blast cabinet PAL 2N, 3L or 4XL
- Protective rubber lining of the blast cabinet

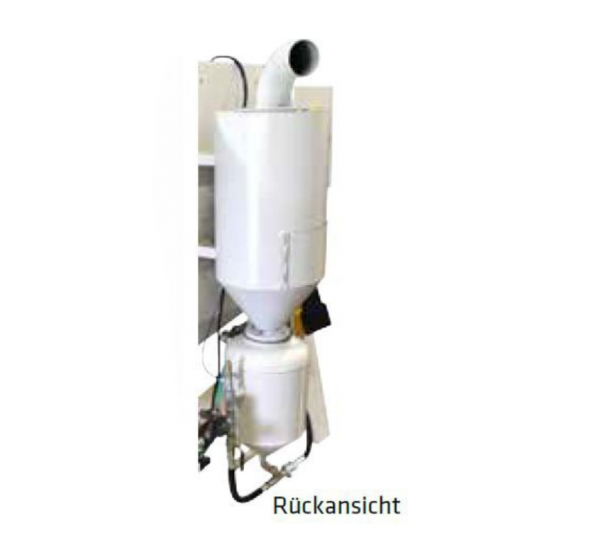

- Cyclone separator for abrasive
- Tested pressure tank 24 litres
- Pressure reduction for fine adjustment
- Optional: Fine dust filter cabinet PAL-6AF required!
- Max. Workpiece size approx. 50 x 70 x 50 cm
- Working pressure from 1.5 to max. 8 bar
- With heavy-duty tungsten carbide blasting nozzle UG-1
- Safety foot pedal (start-stop)
Technical data ELMAG Pressure Sandblasting Cabinet PAL-2N D 24 LT:
- Tank capacity 24 l
- Working pressure 1.5 - 8 bar
- Air requirement at 6 bar Venturi nozzle UG-1/3 mm 470 l/min
- Air requirement at 6 bar Venturi nozzle UG-1/4 mm 850 l/min
- Air demand at 6 bar Venturi nozzle UG-1/5 mm 1,500
- Air requirement at 6 bar Venturi nozzle UG-1/6 mm 2,600
- Voltage/frequency 400/50 V/Hz
- Cabin space 60x88x78 cm
- Dimensions 115x98x190 cm
- Weight 150 kg
Highest quality ELMAG machines
Benefit from a 2-year warranty from ELMAG
Accessories for ELMAG machines on request
