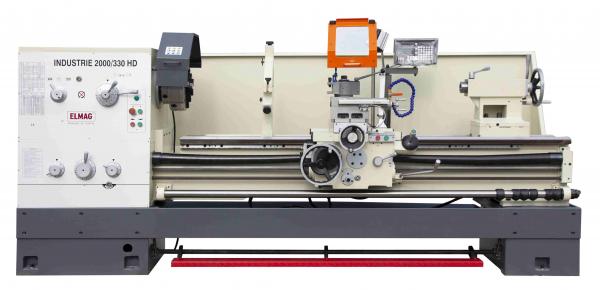

Product Highlights ELMAG INDUSTRIE 2000/330 HD universal lathe

The INDUSTRIE 330 HD universal lathes are the right answer when it comes to the precise machining of extra heavy, large machine, steel, tank construction and casting mould parts. With four top models in this powerful machine class, ELMAG® offers a perfect selection. A super-strong drive unit provides 7,500 watts of power for an easy-to-switch high-performance spindle gear with 12 clockwise or counter-clockwise speed settings. Oil-pressure lubrication ensures maximum precision and smooth running of the turning spindle. All gears are made of hardened chrome-nickel steel, precision-ground, particularly durable and smooth-running. Super-hard, precision-ground prismatic guides (> HB 400) carry a heavy tool slide according to the requirements. Thanks to a rapid traverse motor, it can be moved effortlessly and quickly. The traction spindle is engaged by an adjustable slipping clutch. The massive tailstock is moved by means of a crank drive and has an adjustment device for the quill feed. The INDUSTRIE 330-HD models are very well equipped for plug-and-play start-up, including a quick-change steel holder set for rapid tool changes and a SINO digital position display for maximum precision and efficiency in single-part and series production.

SPECIAL

- Electromagnetic rotary spindle foot brake
- Longitudinal and cross slide with rapid traverse drive
- Feed spindle with adjustable slipping clutch
- Lead screw with overload protection
- Tool slide with central lubrication
- Longitudinal stop for automatic stop
- Coolant system with return, tank in machine base
- With digital position indicator SINO

STANDARDS

- Heavy grey cast iron machine bed, good vibration damping
- Removable bridge
- Prismatic guides hardened (> HB 400) and precision ground
- Rotating spindle hardened and precision ground, high concentricity, adjustable precision bearings
- Turning spindle with oil pressure lubrication
- Smooth-running turning spindle and feed gear with oil bath
- Gear wheels made of chrome-nickel steel, hardened and precision-ground
- Shaft for right-hand and left-hand rotation of the spindle
- Feed reverser
- Tool slide with lock nut and central lubrication
- Precise slide guides, adjustable
- Solid tailstock with tapered rotation and crank drive
- Lathe accuracy according to DIN 8606

STANDARD EQUIPMENT

- Digital position indicator SINO SDS6-3V
- RÖHM three-jaw lathe chuck Ø 315 mm
- Four-jaw faceplate chuck Ø 400 mm
- Clamping disc Ø 610 mm
- 2 fixed centre points
- Travelling centre point MK 5
- Running steady rest
- Steady rest
- Quick-change steel holder set, 5-piece MC
- Threaded clock and change gear set
- LED machine lamp
- Emergency stop button / zero-voltage trigger
- Lathe chuck guard with safety switch
- Underframe / chip tray / splashboard
- Tool kit / Operating instructions / CE

Special accessories ELMAG INDUSTRIE 2000/330 HD universal lathe

- Insert turning tool set 25 x 25 mm, 7 pieces
- Insert set 7 pieces for turning tool set 25 x 25 mm
- Turning tool set "Camlock" 25 x 25 mm, 7 pieces
- Parting-off toolholder 25 x 25 mm, length 150 mm
- Knife for parting-off toolholder 25 x 25 mm

Technical data ELMAG INDUSTRIE 2000/330 HD universal lathe

Centre width: 2.000 mm
Centre height: 330 mm
Turning diameter over bed: 660 mm
Turning diameter over slide: 420 mm
Turning diameter without bridge: 870 mm
Machine bed width: 400 mm
Bridge length: 230 mm
Cross slide travel: 360 mm
Top slide travel: 145 mm
Turning tool cross-section, max.: 25 x 25 mm
Lathe chuck mounting: D1 - 8
Spindle mounting (turning spindle): MK 6
Spindle bore: 105 mm
Speed: 36 - 1,600 rpm
Speed steps: 12
Longitudinal feeds: (52) 0.063 - 2 mm/rev
Cross feeds: (52) 0.027 - 1.07 mm/rev
Metric thread dimension: (22) 1 - 14 mm
metric modular thread: (18) 0.5 - 4 mm
inch thread, G threads: (28) 1/4 - 56 G/'
inch modular thread, G threads: (24) 1/4 - 56 G/'
Lead screw pitch: 12 mm
Lead screw diameter: 40 mm
Quill mount: MK 5
Quill diameter: 75 mm
quill travel: 150 mm
Motor power: 7,500 W
Rapid traverse drive: 250
Coolant pump: 125 W
Mains connection: 400/50-60 V/Hz
Length (total): 3,500 mm
Width (total): 1,100 mm
Height (total): 2,450 mm
Weight: 3,400 kg
