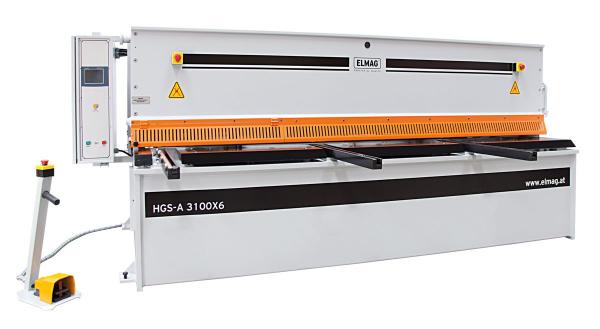

ELMAG HGS-A 2100x8mm hydraulic guillotine shears
Product Highlights ELMAG HGS-A 2100x8mm hydraulic guillotine shears
Super-fast swing-cut shears for medium requirements
HGS-A guillotine shears are hydraulically driven high-performance machines with modern swing cut technology. They combine economic efficiency with high performance and modern design. With a cycle rate of 15 - 24 strokes per minute, they are among the fastest and most powerful machines in their class. Their maximum
cutting length is between 2,600 and 4,100 mm.
HGS-A models are designed for years of demanding continuous operation. Their main frame and cutter bars are closed, torsionally rigid monobloc box constructions for maximum stability and cutting precision. The upper and lower blades are made of wear-resistant, high-alloy special steel and can be used on two or four sides. HGS-A swing-cut shears allow, thanks to a central, infinitely variable cutting gap adjustment, precise quality cuts of all
Material types. The kerf adjustment for the entire machine length is carried out with the highest precision by means of an adjustment lever on the right side of the machine. A wide range of special accessories is available to extend the machine functions. Especially ideal: Automatic kerf and stroke adjustment (CNC HGS-A).
Standard equipment
HGS-A guillotine shears are hydraulically driven high-performance machines with modern swing cut technology. They combine economic efficiency with high performance and modern design. With a cycle rate of 15 - 24 strokes per minute, they are among the fastest and most powerful machines in their class. Their maximum
cutting length is between 2,600 and 4,100 mm.
HGS-A models are designed for years of demanding continuous operation. Their main frame and cutter bars are closed, torsionally rigid monobloc box constructions for maximum stability and cutting precision. The upper and lower blades are made of wear-resistant, high-alloy special steel and can be used on two or four sides. HGS-A swing-cut shears allow, thanks to a central, infinitely variable cutting gap adjustment, precise quality cuts of all
Material types. The kerf adjustment for the entire machine length is carried out with the highest precision by means of an adjustment lever on the right side of the machine. A wide range of special accessories is available to extend the machine functions. Especially ideal: Automatic kerf and stroke adjustment (CNC HGS-A).
Standard equipment
- Upper and lower blade also for stainless steel processing
- Hydraulic cutting gap adjustment
- Upper blade with two cutting edges, special beam hardened
- lower blade with four cutting edges, special steel hardened
- Cutting Gap Adjustment Device
- NC-controlled backgauge with ball screw
- Section line lighting
- Automatic hold-down system
- CE safety devices
- Support arm with ruler and side stops
- Support table with ball rollers
- Control console HGS-A
- CybTouch 6 control with color touch screen
- Mobile control column with foot release and emergency stop button
- Operating Instructions / CE|Special Accessories- Crosscut Fence with Scale
- Sheet holding device type I or type II
- Support arm length up to three meters, with ruler
- Laser cutting line display
- Finger protection light curtain
- CNC HGS-A with control CYBELEC DNC 61 G
- Hydraulic cutting gap adjustment
- Upper blade with two cutting edges, special beam hardened
- lower blade with four cutting edges, special steel hardened
- Cutting Gap Adjustment Device
- NC-controlled backgauge with ball screw
- Section line lighting
- Automatic hold-down system
- CE safety devices
- Support arm with ruler and side stops
- Support table with ball rollers
- Control console HGS-A
- CybTouch 6 control with color touch screen
- Mobile control column with foot release and emergency stop button
- Operating Instructions / CE|Special Accessories- Crosscut Fence with Scale
- Sheet holding device type I or type II
- Support arm length up to three meters, with ruler
- Laser cutting line display
- Finger protection light curtain
- CNC HGS-A with control CYBELEC DNC 61 G
Technical facts ELMAG HGS-A 2100x8mm hydraulic guillotine shears
- Performance data HGS-A
- cutting capacity up to 6 or 8 mm material thickness
- cutting length up to 2.600 mm
- Cutting speed depending on model 15 - 24 strokes per minute
- High drive power 11 or 15 kW
- High quality standards
- Robust industrial models from the latest production
- High cutting accuracy
- Welded, very stable and stress-free monobloc steel construction with excellent vibration damping
- S275 material with very high tensile strength
- High quality BOSCH-REXROTH or HOERBIGER hydraulic system
- Low-noise ATOS hydraulic pumps with high pressure performance
- Powerful hydraulic cylinder honed and chrome-plated
- upper blade with two cutting edges, special steel, hardened
- lower blade with four cutting edges, special steel hardened
- Central kerf adjustment for quality cuts of different material thicknesses and types
- NC-controlled, motorised, precisely adjustable backgauge with ball screw
- High adjustment speed 110 mm
- -s, adjustment range 1,000 mm
- Backgauge with automatic return
- Section line lighting

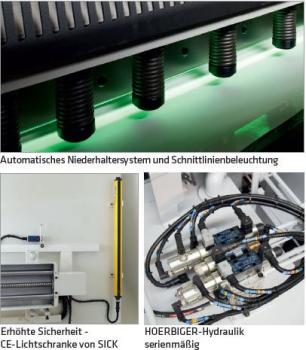

- Automatic hold-down system with high holding force for support and tilting safety during the cutting phase
- CE safety devices
- Installed safety through cut gap cover
- Light barrier at the rear of the machine
- Emergency stop button on the machine and on the control column
Technical data ELMAG HGS-A 2100x8mm hydraulic guillotine shears
- cutting length: 2100mm
- cutting capacity 42 kg/mm²: 8mm
- cutting capacity 70 kg/mm²: 4mm
- Number of strokes: 20min_¹
- Hold-down clamp: 11Anz.
- Hold-down pressure: 12t
- Main drive Motor power: 15kW
- backgauge adjustment range: 1000mm
- adjustment speed: 110mm/s
- length: 3010mm
- width: 2450mm
- height: 1700mm
- weight: 5200kg
Highest quality of ELMAG machines
Benefit from a 2 year ELMAG warranty
Accessories for ELMAG machines on request
