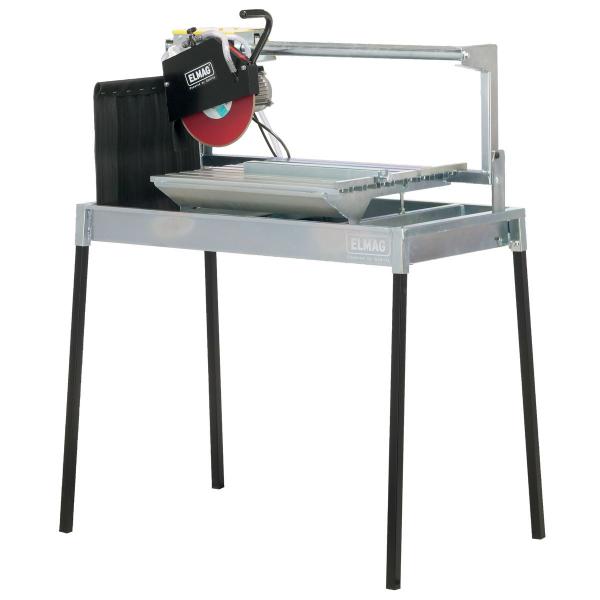

ELMAG FSM 570/230 K tile cutting machine
Product highlights ELMAG FSM 570/230 K tile cutting machine
The small one for thick tile, marble and granite slabs

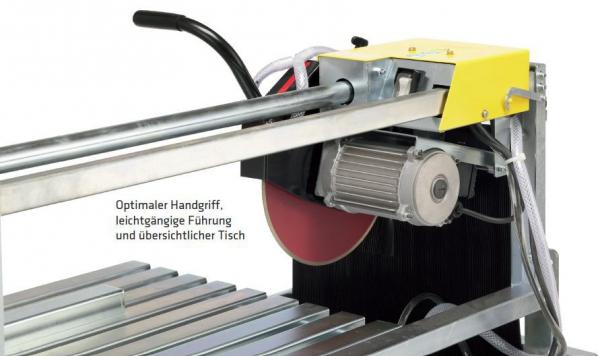

Similar to the STM models, the model FSM 570/230 K has an easily movable, particularly precisely guided, readjustable cutting unit with handle and is equipped with a diamond cutting disc Ø 230 mm for a cutting depth of up to 60 mm. Ideal as a universal machine for upmarket applications, with good suitability for flexible use on the construction site only 38 kg!
Similar to the STM models, the model FSM 570/230 K has an easily movable, particularly precisely guided, readjustable cutting unit with handle and is equipped with a diamond cutting disc Ø 230 mm for a cutting depth of up to 60 mm. Ideal as a universal machine for upmarket applications, with good suitability for flexible use on the construction site only 38 kg!
Technical facts ELMAG FSM 570/230 K Tile cutting machine

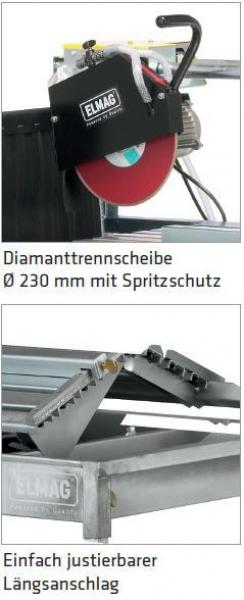

- Diamond cutting disc Ø 230 mm with splash guard
- Easy to adjust Longitudinal stop

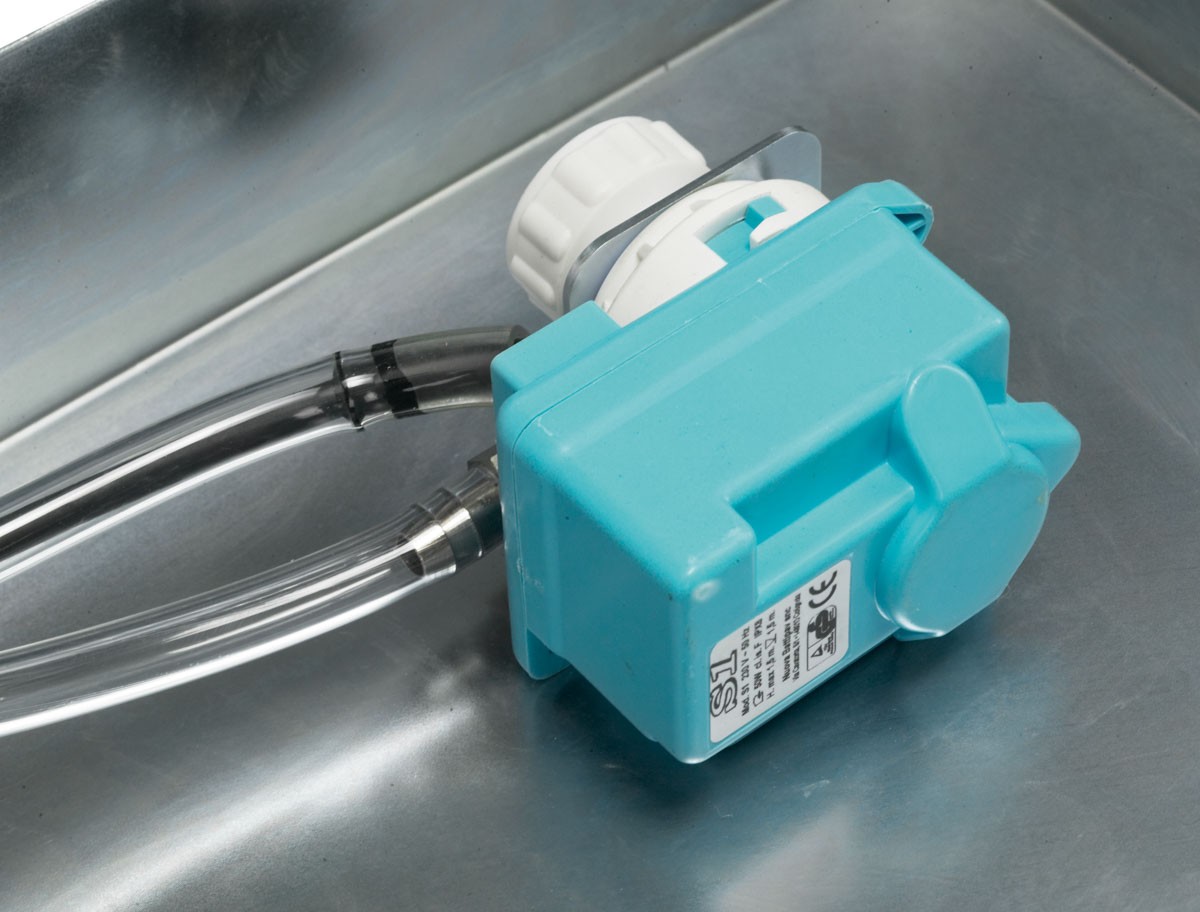

- Water pump S1
- Disc cooling with dosing valve
- Fully galvanized water trough

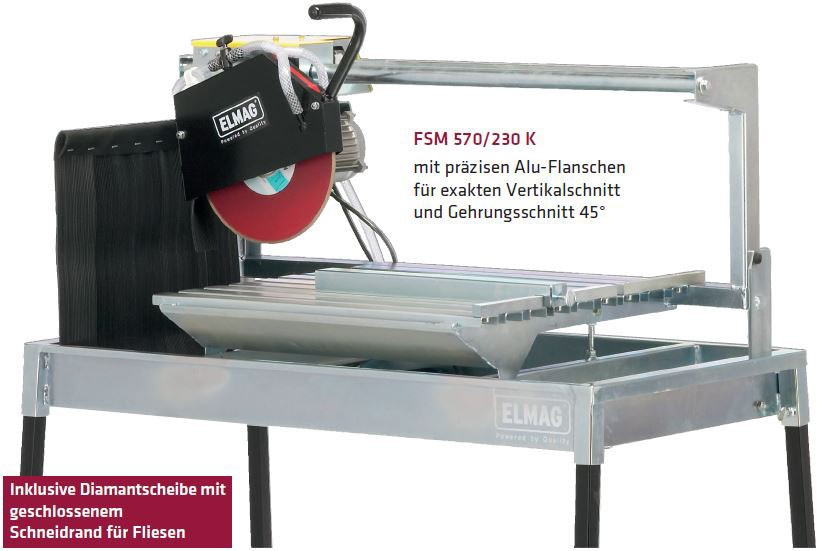

- Folding mitre table K with easy 45° adjustment
- Drive motor 0.8 kW with sealing by shaft sealing ring
- Thermal overload protection
- Safety switch with zero voltage release
- Transport safety device for cutting head
- Removable feet
Technical data ELMAG FSM 570/230 K Tile cutting machine
- cutting capacity depth/length: 60 / 570 mm
- Angle: 0 - 45 °
- Diamond cutting discs-Ø: 230 mm
- Diamond cutting discs Drill hole: 25.4 mm
- Nominal power: 0,8 kW
- Voltage/frequency: 230/50 V/Hz
- Dimensions: 90x55x118 cm
- Weight: 38 kg
Highest quality of ELMAG machines
Benefit from a 2 year ELMAG warranty
Accessories for ELMAG machines on request
