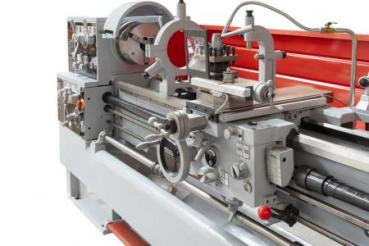

ED1500INDIG80400 Holzmann lathe

Product Highlights ED1500INDIG80400 Holzmann lathe​

• with 3-axis digital display
• heavy and vibration-absorbing cast design
• very wide, inductively hardened and ground machine bed
• handy and simple operation due to clear switching unit
• Removable bridge for machining large workpieces
• fourfold adjustable longitudinal stop
• all guides adjustable via wedge strips
• Camlock spindle mount D1-6, DIN 55029
• The tailstock can be eccentrically adjusted for taper turning
• Oil bath gear with ground and hardened gear wheels
• large spindle bore with a diameter of 80mm
• compl. with foot brake and automatic switch-off for immediate spindle stop
• very large number of different thread pitches possible
• including coolant system and halogen lamp

Scope of delivery ED1500INDIG80400 Holzmann lathe​

• 3-axis digital display,
• Coolant system,
• Halogen lamp,
• 3-jaw chuck Ø250mm,
• 4-jaw face plate 250mm,
• clamping plate 350mm,
• reducing sleeve,
• thread gauge,
• change gears,
• fixed and rotating steady,
• quadruple steel holder,
• centering points,
• splash guard,
• 2x center punch MK3

Technical details ED1500INDIG80400 Holzmann lathe​

• Motor power S1 in W: 5500
• voltage: 400V

• Installation dimensions in mm: 2720x1040x1370

• Travel path cross slide in mm: 290
• Sleeve travel in mm: 120
• Thread Metric in mm/r: (41) 0.1-14
• Spindle speed in min-1: (12) 25-2000
• max. swing diameter without bridge in mm: 690
• max. swing diameter cross slide in mm: 274
• Tailstock cone: MK4/MT4
• spindle mount: MK6/MT6
• Spindle bore in mm: 80
• Cross feed: 0.014-0.784
• longitudinal feed: 0.031-1.7
• Travel of top slide in mm: 120
• Center distance in mm: 1500
• max. swing diameter bed in mm: 460
• Centre height in mm: 230
• Traverse path of longitudinal slide in mm: 1235

• Gross weight in kg: 2.060
