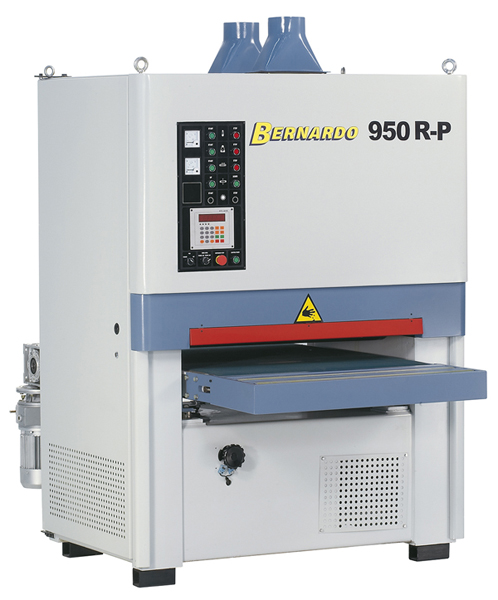

Bernardo Wide Belt Sander 950R-P

Working width min./max.

50 - 950 mm

Passage height min./max.

3 - 100 mm

Workpiece length min.

350 mm

Feed rate

4 - 14 m/min

1. grinding unit

Engine power

15,0 kW

Sanding belt speed

23 m/sec.

Recirculating roller

diam.120 mm

Contact roller

190 mm

2. grinding unit

Engine power

7,5 kW

Sanding belt speed

17 m/sec.

Recirculating roller

90 mm

Feed motor

1,1 kW

Hoist motor

0,37 kW

Sanding belt dimension

960 x 2200 mm

Suction connection

150 mm

Compressed air

8 bar

Grinding beam

70 mm

Dimensions

1500 x 1990 x 2160 mm

Total engine power

23,97 kW

Weight approx.

1800 kg
