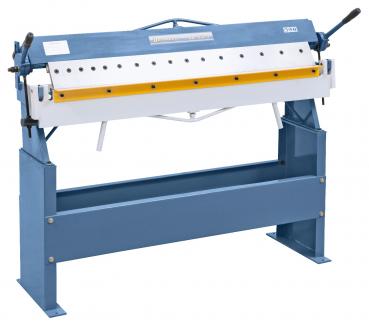

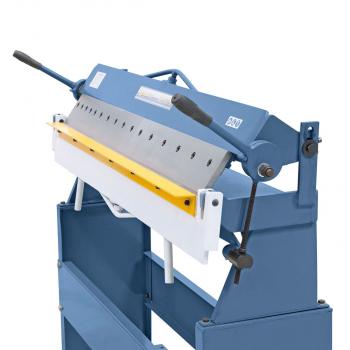

Bernardo SB 1220 S Swivel bending machine
.jpg "Bernardo SB 1220 S Swivel bending machine")
.jpg "Bernardo SB 1220 S Swivel bending machine")
.jpg "Bernardo SB 1220 S Swivel bending machine")
Properties Bernardo SB S 1220 S Swivel bending machine
-
Manual bending machine for standard tasks
- Pivoting movement of the bending beam via bow handle
- Upper beam rail with point angle 45 °
- Inexpensive entry-level model for the craftsman
- User-friendly upper beam infeed via eccentric
- Removeable segments for bending of boxes
- Secure clamping of the sheet metal by means of a special clamping device
Standard accessories Bernardo SB 1220 S Swivel bending machine
- Segmented upper beam
- Bending segments 5 x 51 | 6 x 76 | 5 x 102 mm
Technical specifications Bernardo SB 1220 S Swivel bending machine
| Working length | 1220 mm |
| Sheet thickness max. (400 N / mm2) | 1,5 mm |
| Max. opening | 40 mm |
| Bending angle | 0 - 135° |
| Working height with stand | 900 mm |
| Width | 1520 mm |
| Depth | 360 mm |
| Height * | 530 mm |
| Weight approx. ca. | 135 kg |
| * without stand |
|
