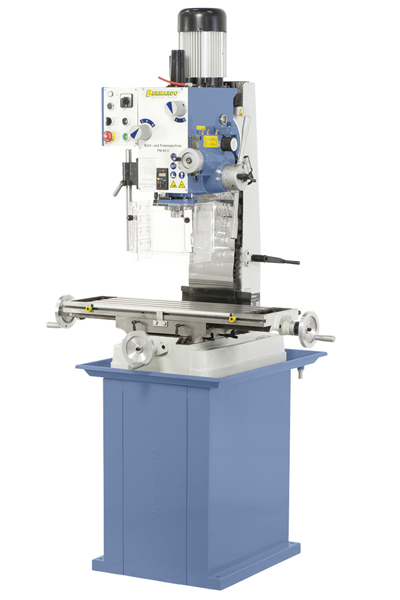

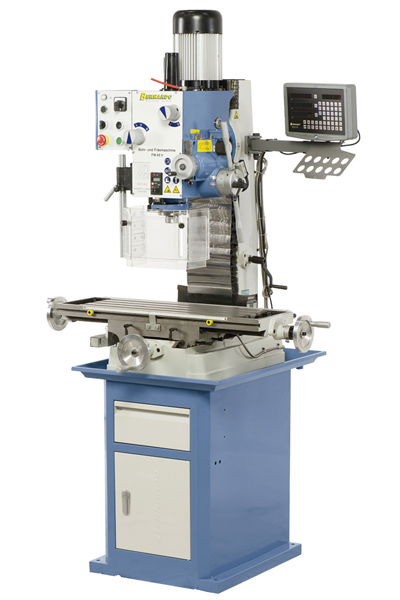

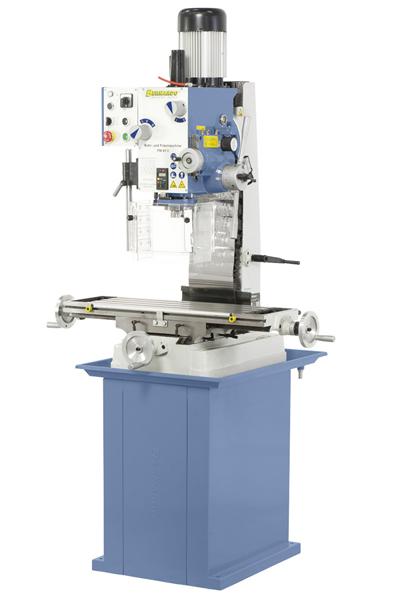

Bernardo Milling Machine - Drilling Machine FM 45 V

• With automatic spindle sleeve feed and thread cutting device as standard
• Wide speed range 50 - 2520 rpm (12 steps)
• Dovetail guide for x-, y- and z-axis, adjustable via wedge bars
• Versatile application possibilities, slot milling, face milling, spindling,...
• Massive, large cross table, precisely surface-machined
• Milling head can be swivelled on both sides for angle drilling, milling chamfers, etc.
• Milling: spindle sleeve adjustment via handwheel
• Drilling: Spindle sleeve adjustment via handle
• High-quality aluminium motor, designed for prolonged use
• Stable and vibration-free cast iron construction
• Simple and fast speed change via gear selector switch

Scope of delivery Bernardo milling machine - drilling machine FM 45 V​

• Automatic spindle sleeve feed
• Tightening spindle M 10 with adapter M 16
• Gear rim drill chuck 1 - 16 mm with adapter MK 4
• Digital quill stroke indicator
• Reducing sleeve MK 4/3, MK 3/2
• Cutter head 80 mm with adaptor MK 4
• Height-adjustable protective cover
• Blade protective cover
• Thread cutting device
• Longitudinal measuring scale
• Operating tool

Available special accessories Bernardo milling machine - drilling machine FM 45 V​

• Tapping attachment SUPER M 5 - M 12 (Art.No.:24-1096)
• Facing and boring head set diam. 75 mm with holder MK 4, incl. boring bars (Art.No.:25-1020)
• Cutter collet chuck set ER 40, MK 4, 3 - 25 mm, 16 pcs. (Art.No.:26-1007)
• Horizontal and vertical rotary table HV 8 - 200 mm (Art.No.:27-1001)
• Semi-universal dividing head BS-0 (Art.No.:27-1045)
• Clamping tool assortment 58 pcs, 14 mm, M 12 (Art.No.:28-1001)
• Two-axis precision machine vice PTS 100 (Art.No.:28-2033)
• Universal machine vice UMS 100 (Art.No.:28-2043)
• Machine vice KV 125 (Art.No.:28-2081)
• Wide clamping machine vice FJ 125 (Art.No.:28-2086)
• Edge finder diam. 10 mm / 10 mm (Art.No.:32-1065)
• 2-D precision centring device (Art.No.:32-1070)
• 3-D universal probe (Art.No.:32-1080)
• Set of end mills HSS TiN-coated, 6 - 25 mm, 10 pcs (Art.No.:42-1016)
• Set of end mills TiN-coated, 3 - 20 mm, 20-pcs. (Art.No.:42-1020)
• Face milling cutter 75° - diam. 80 mm / B 27 mm (Art.No.:42-1085)
• Combination arbor MK 4 / 27 mm (Art.No.:26-1049)
• Universal coolant concentrate RK 12, in 5 l canister (Art.No.:54-1206)
• Automatic milling table feed AL 500 D for x-axis (Art.No.:53-1005)
• Underframe model BF 3 Deluxe with chip tray (Art.No.:56-1017)
• Underframe BF 6 with coolant tray (Art.No.:56-1016)

Technical Data Bernardo Milling Machine - Drilling Machine FM 45 V​

* without underframe
