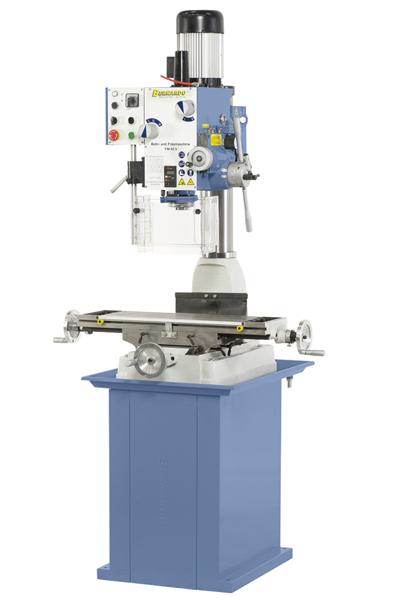

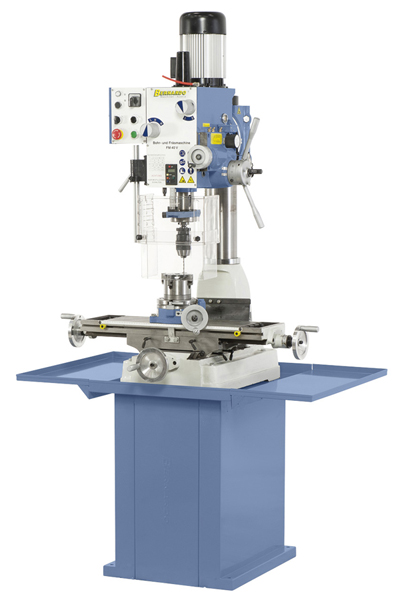

Bernardo Milling Machine - Drilling Machine FM 40 V

• Simple and fast speed change by means of gear selector switch
• With 3 adjustable drilling feeds as standard
• Versatile application possibilities such as drilling, milling, thread cutting,...
• Massive, large cross table, precisely surface-machined
• Adjustable taper bars on the cross table
• High running smoothness due to ground gearwheels running in an oil bath
• High concentricity due to taper roller bearings
• Right-hand and left-hand rotation for thread cutting

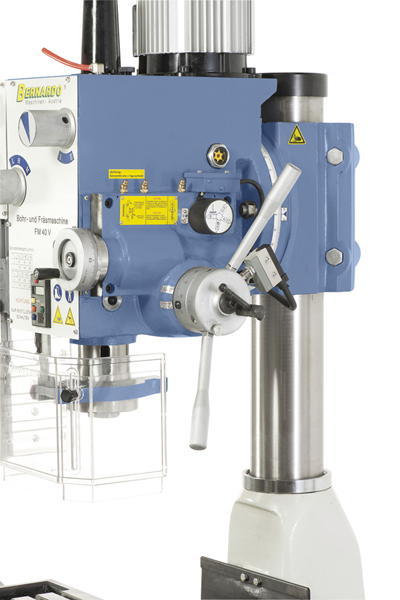

• Gear head can be swivelled 180°, rotated 360° and adjusted in height
• Powerful 2-step drive motor
• Spindle sleeve adjustment by means of a handle, fine adjustment by means of a handwheel

Scope of delivery Bernardo milling machine - drilling machine FM 40 V​

• Automatic quill feed
• Tightening spindle M 12
• Gear rim drill chuck 1 - 16 mm with MK 3 receptacle
• Reducing sleeve MK 3 / 2
• Digital quill stroke indicator
• Cutter head 80 mm with MK 3 holder

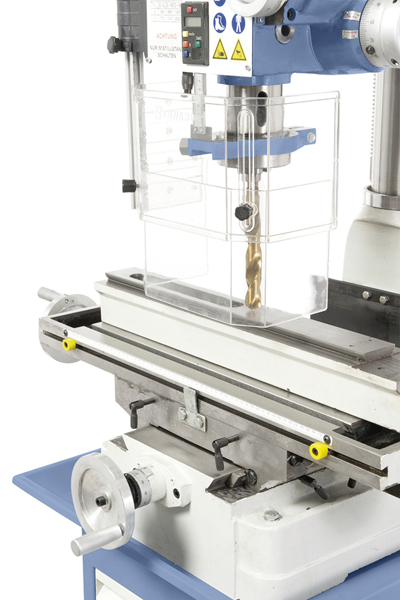

• Height-adjustable protective cover
• Tapping device
• Longitudinal measuring scale
• Operating tool

Available special accessories Bernardo milling machine - drilling machine FM 40 V​

• Cutter collet chuck set ER 32, MK 3, 3 - 20 mm, 13 pcs. (Art.No.:26-1004)
• Cutter collet chuck set ER 40, MK 3, 3 - 25 mm, 16 pcs. (Art.No.:26-1006)
• Tapping attachment Super M 5 - M 12 (Art.No.:24-1096)
• Facing and boring head set diam. 75 mm with adapter MK 4, incl. boring bars (Art.No.:25-1020)
• Shank for face and boring head MK 3 (Art.No.:25-1007)
• Horizontal and vertical rotary table HV 6 (Art.No.:27-1000)
• Horizontal and vertical rotary table RT 5 - 125 mm (Art.No.:27-1033)
• Semi-universal dividing head BS-0 (Art.No.:27-1045)
• Clamping tool assortment 58 pcs, 14 mm, M 12 (Art.No.:28-1001)
• Two-axis precision machine vice PTS 100 (Art.No.:28-2033)
• Machine vice KV 125 (Art.No.:28-2081)
• Wide clamping machine vice FJ 125 (Art.No.:28-2086)
• 2-D precision centring device (Art.No.:32-1070)
• Cone drill cassette set B, MK 2/3, 14.5 - 30 mm, 9 pcs. (Art.No.:41-1051)
• Set of end mills HSS TiN-coated, 6 - 25 mm, 10-pcs (Art.No.:42-1016)
• Set of end mills TiN-coated, 3 - 20 mm, 20-pcs. (Art.No.:42-1020)
• Face milling cutter 75° - diam. 80 mm / B 27 mm (Art.No.:42-1085)
• Universal coolant unit with metal tank 11 litres - 400 V (Art.No.:51-1000)
• Universal coolant unit with plastic container 10 litres - 230 V (Art.No.:51-1003)
• Automatic milling table feed AL 500 D for x-axis (Art.Nr.:53-1005)
• Underframe BF 3 with chip tray (Art.No.:56-1015)
• Underframe BF 6 with coolant tray (Art.No.:56-1016)

Technical Data Bernardo Milling Machine - Drilling Machine FM 40 V​

* without underframe
