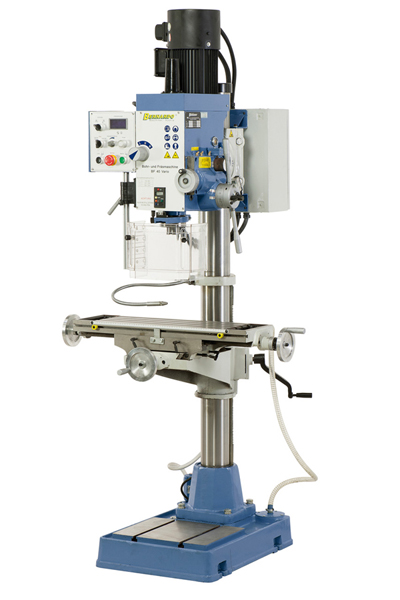

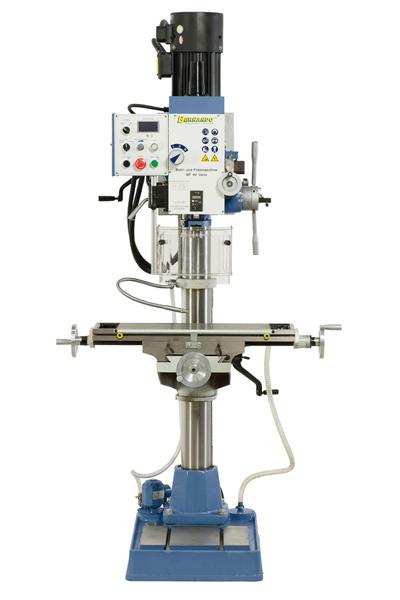

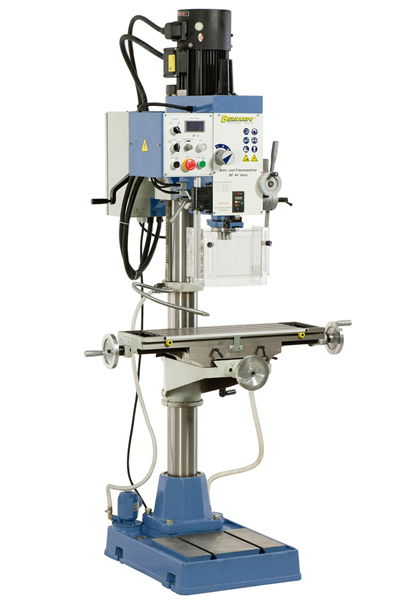

Bernardo Milling Machine - Drilling Machine BF 40 Vario

• High safety due to height-adjustable protective cover according to CE standard
• Machined machine base for clamping particularly high workpieces
• Automatic spindle sleeve feed as standard
• Right-left running device for thread cutting
• Large-dimensioned cross table with T-slots and coolant trough
• Smooth running due to ground gear wheels running in an oil bath
• Variable speed adjustment through delta frequency converter with optimised torque curve

Scope of delivery Bernardo milling machine - drilling machine BF 40 Vario​

• Keyless drill chuck 1 - 16 mm / B 18
• Drill chuck mandrel MK 4 / B 18
• Reducing sleeve MK 4/3

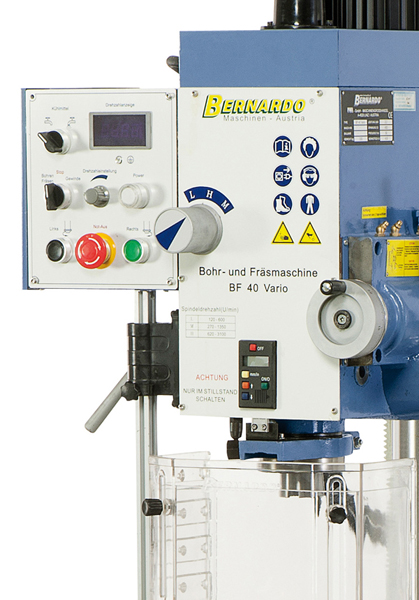

• Digital quill stroke indicator
• Digital speed indicator
• Frequency converter
• Cutter head 80 mm
• Protective cover
• Tapping device
• Tightening spindle M16
• Coolant device
• Operating tool

Available special accessories Bernardo milling machine - drilling machine BF 40 Vario​

• Reducing bushing MK 4 / 2 (Art. No.: 24-1024)
• Reducing bush MK 4 / 3 (Art. No.: 24-1025)
• Tapping attachment MK 4, M 3 - M 12 (Art. No.: 24-1091)
• Tapping attachment Super M 5 - M 12 (Art. No.: 24-1096)
• Facing and boring head set incl. boring bars with holder MK 4 - 75 mm (Art. No.: 25-1020)
• Cutter collet chuck set ER 40, MK 4, 3 - 25 mm, 16 pcs. (art. no.: 26-1007)
• Horizontal and vertical rotary table HV 6 - 150 mm (Art. No.: 27-1000)
• Horizontal and vertical rotary table 200 mm HV 8 (Art. No.: 27-1001)
• Semi-universal dividing head BS-0 (Art. No.: 27-1045)
• Clamping tool assortment 58 pcs, 14 mm, M 12 (Art. No.: 28-1001)
• Industrial drilling machine vice BMI 125 (Art. No.: 28-2016)
• Quick-action drill press vice BMS 100 QC (Art. No.: 28-2021)
• Machine vice KV 125 (Art. No.: 28-2081)
• Machine vice KV 150 (Art. No.: 28-2082)
• Wide clamping machine vice FJ 125 (Art. No.: 28-2086)
• Digital depth gauge 0 - 100 mm / 0,001 mm (Art. No.: 31-1070)
• Edge finder with light indicator diam. 20 mm / L 120 mm (Art. No.: 32-1060)
• Edge finder set 5 pcs. (art. no.: 32-1067)
• 2-D precision centring device (Art. No.: 32-1070)
• Parallel pad set 28 pcs. (Art. No.: 35-1020)
• Set of shank roughing cutters HSS TIN-coated, 6 - 25 mm, 10-pcs. (art. no.: 42-1016)
• Set of end mills TIN-coated, 3 -20 mm, 20-pcs. (art. no.: 42-1020)
• Automatic milling table feed AL 500 D for X-axis with transformer (Art. No.: 53-1005)
• Machine shoe MS 80 (Art. No.: 53-2000)
• Universal coolant concentrate RK 12, 5 litre canister (Art. No.: 54-1206)

Technical Data Bernardo Milling Machine - Drilling Machine BF 40 Vario​
