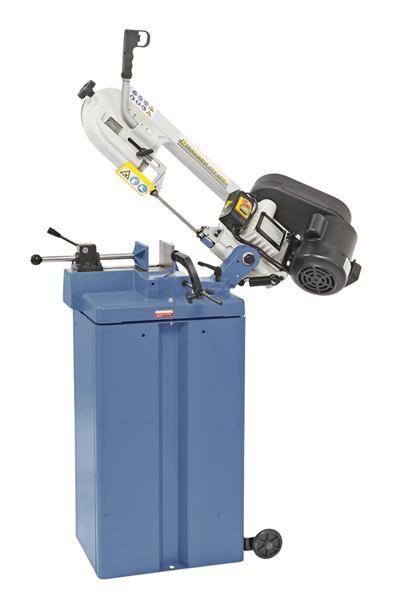

Bernardo metal band saw EBS 150 B

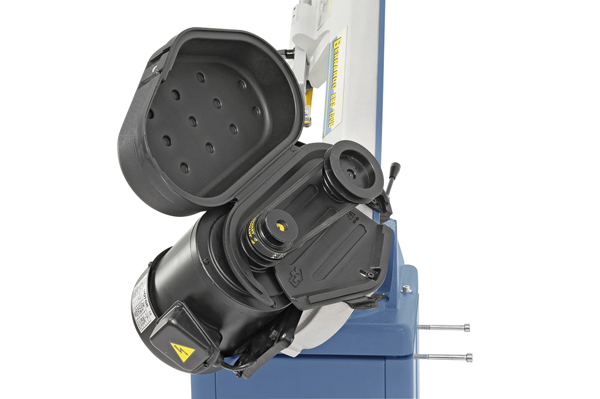

This solid metal band saw is equipped with a swivelling saw bow, which enables space-saving work. The saw is driven by a V-belt. It is mainly used by professional users.
Features Bernardo metal band saw EBS 150 B
- For cutting hollow sections and solid materials, stainless steel, tool steel,....
- 3 speeds for optimum cutting results
- Stable saw frame, therefore quiet and low-vibration running
- Ball bearing saw blade guide for precise cutting results

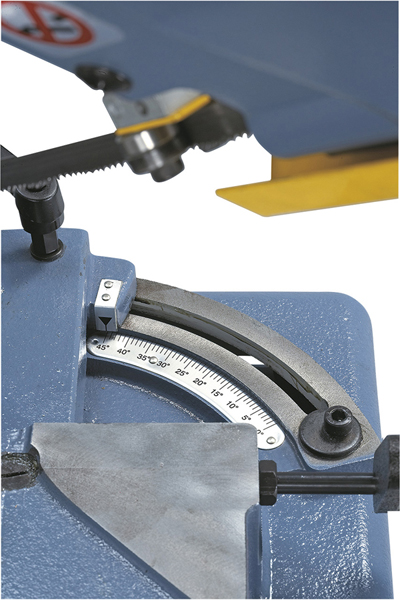

- The saw bow is swivelled for mitre cuts
- Including workpiece fence for efficient working
- With mobile base as standard
Scope of delivery Bernardo metal band saw EBS 150 B
- Saw band

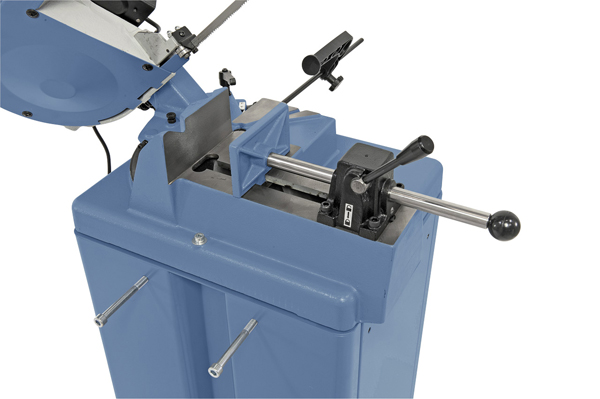

- Quick-action vice
- Workpiece fence
- Mobile machine base
Available special accessories Bernardo metal band saw EBS 150 B
- Saw band HSS 1735 x 13 x 0,65 - 14 ZpZ (Art.Nr.:47-1200)
- Saw band HSS 1735 x 13 x 0,65 - 8 ZpZ (Art.Nr.:47-1201)
- Saw band BiFlex 1735 x 13 x 0,9 - 14 ZpZ (Art.Nr.:47-1202)
- Saw band BiFlex 1735 x 13 x 0,9 - 8 ZpZ (Art.Nr.:47-1203)
Technical data Bernardo metal band saw EBS 150 B
| Cutting range around 90 | 150 mm |
| Cutting range flat 90° | 150 x 180 mm |
| Cutting range around 45 | 125 mm |
| Cutting range flat 45° | 150 x 125 mm |
| Cutting range around 60 | 70 mm |
| Working height | 870 mm |
| Saw band dimension | 1735 x 12,7 x 0,9 mm |
| Cutting speeds | 28 / 42 / 68 m/min |
| Motor output power S1 100% | 0,37 kW |
| Motor input power S6 40% | 0,55 kW |
| Voltage | 230 V |
| Machine dimension (L x D x H) | 950 x 400 x 1640 mm |
| Weight approx. | 62 kg |
