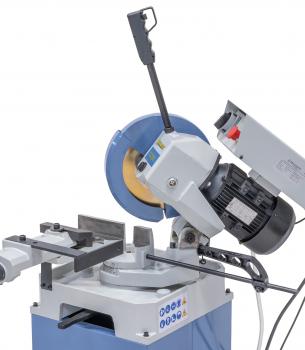

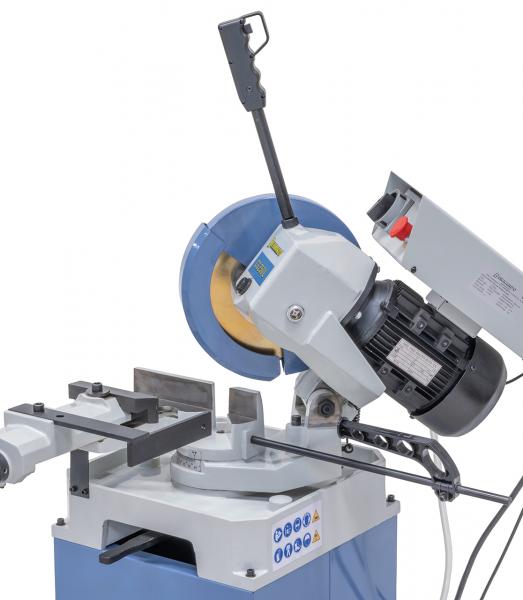

Bernardo Manual metal circular saw CS 250 L
NEW
Product features Bernardo Manual metal circular saw CS 250 L
The CS 250 L metal circular saw offers an optimum price-performance ratio thanks to its complete equipment. Thanks to its robust design, precise cutting results and simple operation, this machine is indispensable in metalworking companies.
- Gear head can be swivelled 45° to the right and left for mitre cuts
- For cutting steel, light metals and plastics
- CE-compliant saw blade guard, closes automatically when folded up
- Ergonomic control handle with 24 V safety switch
- TiN-coated saw blade as standard
- Including workpiece stop for efficient work
- Hardened and ground gears, running in an oil bath
- Coolant system housed in the machine body to save space
Scope of delivery Bernardo Manual metal circular saw CS 250 L
- Coolant device with filter

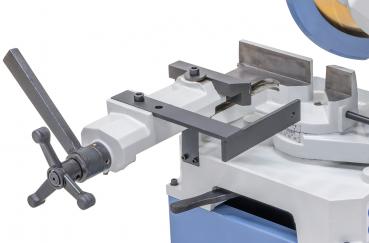

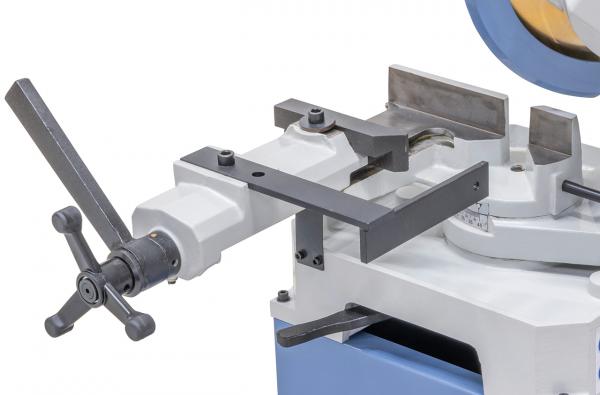

- Vice with quick-clamping lever
- TiN-coated saw blade
- Workpiece stop
- Underframe
Technical data Bernardo Manual metal circular saw CS 250 L
Saw blade dimension | 250 x 32 mm |
Speed | 42 rpm |
Vice open max. | 115 mm |
Working height | 960 mm |
Motor output power S1 100% | 1,1 kW |
Motor power consumption S6 40% | 1,5 kW |
Voltage | 400 V |
Machine dimensions (W x D x H) | 900 x 1100 x 1620 mm |
Weight approx. | 134 kg |
Solid material round | 90°: 60 mm, 45°: 50 mm |
Round moulded tube | 90°: 65 mm, 45°: 55 mm |
Square moulded tube | 90°: 65 x 65 mm, 45°: 55 x 55 mm |
Rectangular moulded tube | 90°: 75 x 45 mm, 45°: 55 x 45 mm |
