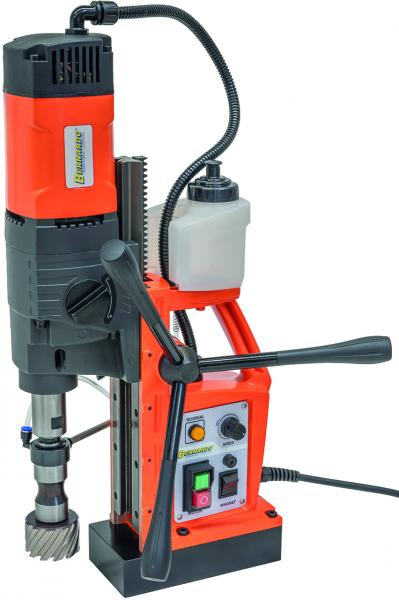

Bernardo magnetic core drill TPC 2200
Product features Bernardo magnetic core drill TPC 2200

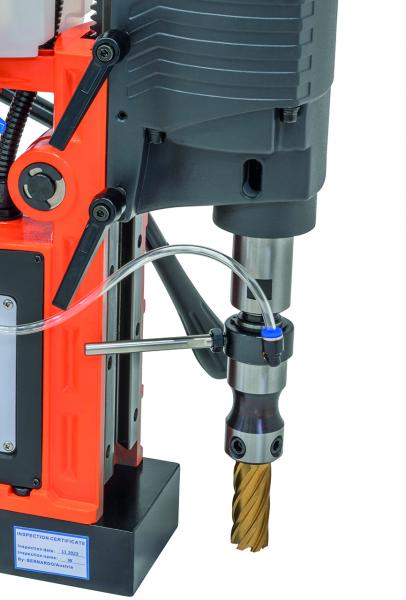

- Automatic internal lubrication; the coolant is fed directly to the tip of the core drill
- Variable speed control for optimum adjustment of the cutting speed during core drilling, thread cutting, countersinking and reaming
- Fitted as standard with an MK 3 taper for holding various tools (twist drills, countersinks, reamers, threading chucks, hole saws, etc.)
- High-torque drive motor with soft start and overload protection
- Powerful electromagnet ensures maximum magnetic holding force

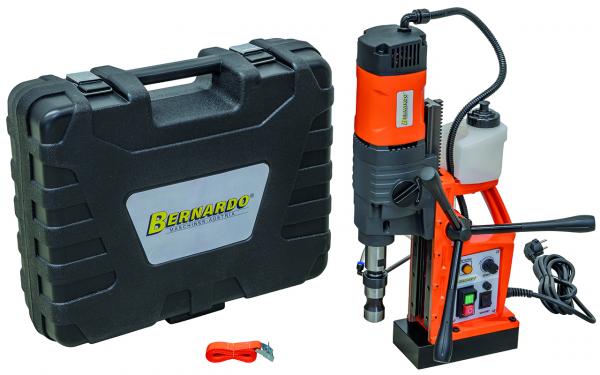

Scope of delivery Bernardo magnetic core drill TPC 2200
- Plastic box
- Coolant reservoir
- Tool holder with automatic
- internal cooling MK 3 / Weldon shank 19 mm
- Safety harness
- Operating instructions
- Hand tool
Technical data Bernardo magnetic core drill TPC 2200
| Core drill max. Ø | 65 mm |
| Core drill max. drilling depth | 50 mm |
| Twist drill max. Ø | 25 mm |
| Max. drilling head travel | 200 mm |
| Thread cutting max. | M 22 |
| No-load speed, variable | 100 - 210 / 210 - 520 rpm |
| Spindle taper | MK 3 |
| Weldon shank holder | 19 mm |
| Distance spindle / base plate max.* | 185 mm |
| Distance Weldon holder / base plate max.* | 85 mm |
| Magnetic holding force | 15800 N |
| Magnetic base dimensions (L x W x H) | 200 x 105 x 45 mm |
| Motor power | 1890 W |
| Voltage | 230 V |
| Machine dimensions (W x D x H) | 290 x 360 x 640 mm |
| Weight approx. | 20.5 kg |
* Extendable up to 80 mm
