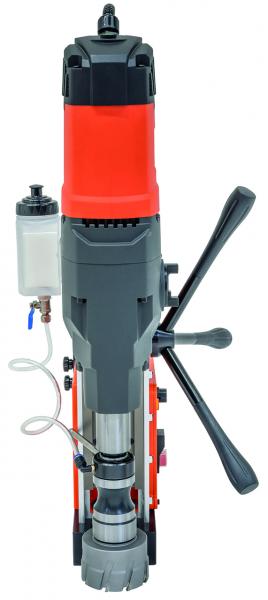

Bernardo magnetic core drill TPC 2000 Pro
NEW
Product features Bernardo magnetic core drill TPC 2000 Pro

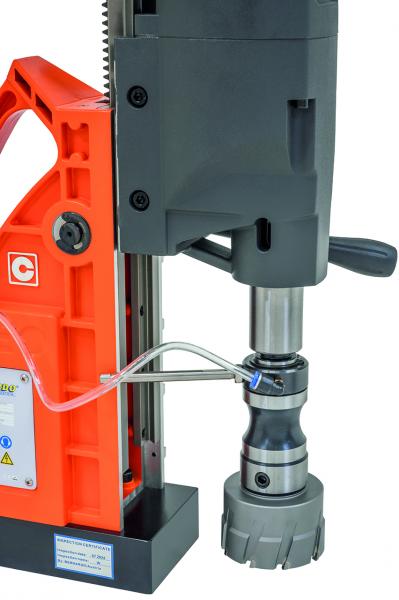

- Automatic internal lubrication; the coolant is fed directly to the tip of the core drill
- Fitted as standard with an MK 3 taper for holding various tools (twist drills, countersinks, reamers, threading chucks, hole saws, etc.)
- High-torque drive motor with soft start and overload protection
- 3-speed gearbox for adjusting the cutting speed to the workpiece
- Tool holders are available for core drills with 19 mm (standard) or 32 mm (optional) Weldon shanks
- Powerful electromagnet ensures maximum magnetic holding force

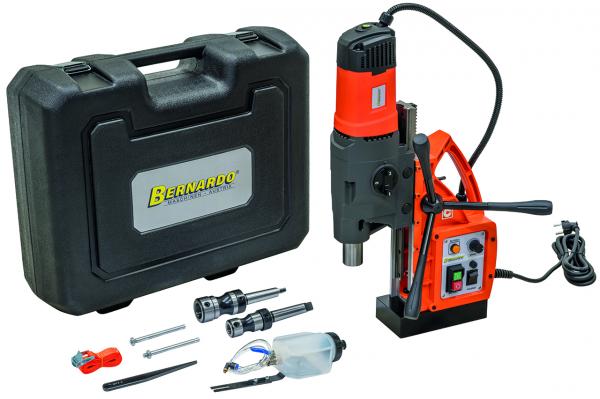

Scope of delivery Bernardo magnetic core drill TPC 2000 Pro
- Seatbelt
- Plastic box
- Can spirit level
- Coolant reservoir
- Tool holder with automatic internal cooling MK 3 /
- Weldon shank 19 mm / 32 mm
- Operating instructions
- Operating tool
Technical data Bernardo magnetic core drill TPC 2000 Pro
| Core drill max. Ø | 85 mm |
| Core drill max. drilling depth | 50 mm |
| Twist drill max. Ø | 25 mm |
| Max. drilling head travel | 190 mm |

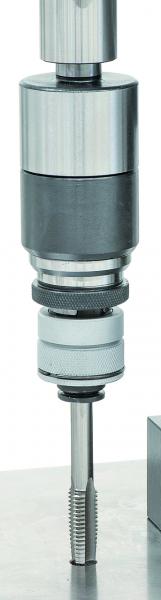

| Thread cutting max. | M 20 |
| No-load speed | 100 - 210 / 250 / 530 rpm |
| Spindle taper | MK 3 |
| Weldon shank holder | 19 mm / 32 mm |
| Distance spindle / base plate max.* | 190 mm |
| Distance Weldon holder / base plate max.* | 80 mm |
| Magnetic holding force | 16800 N |
| Magnetic base dimensions (L x W x H) | 200 x 105 x 45 mm |
| Motor power | 1980 W |
| Voltage | 230 V |
| Machine dimensions (W x D x H) | 300 x 390 x 680 mm |
| Weight approx. | 18 kg |
* Extendable up to 80 mm
